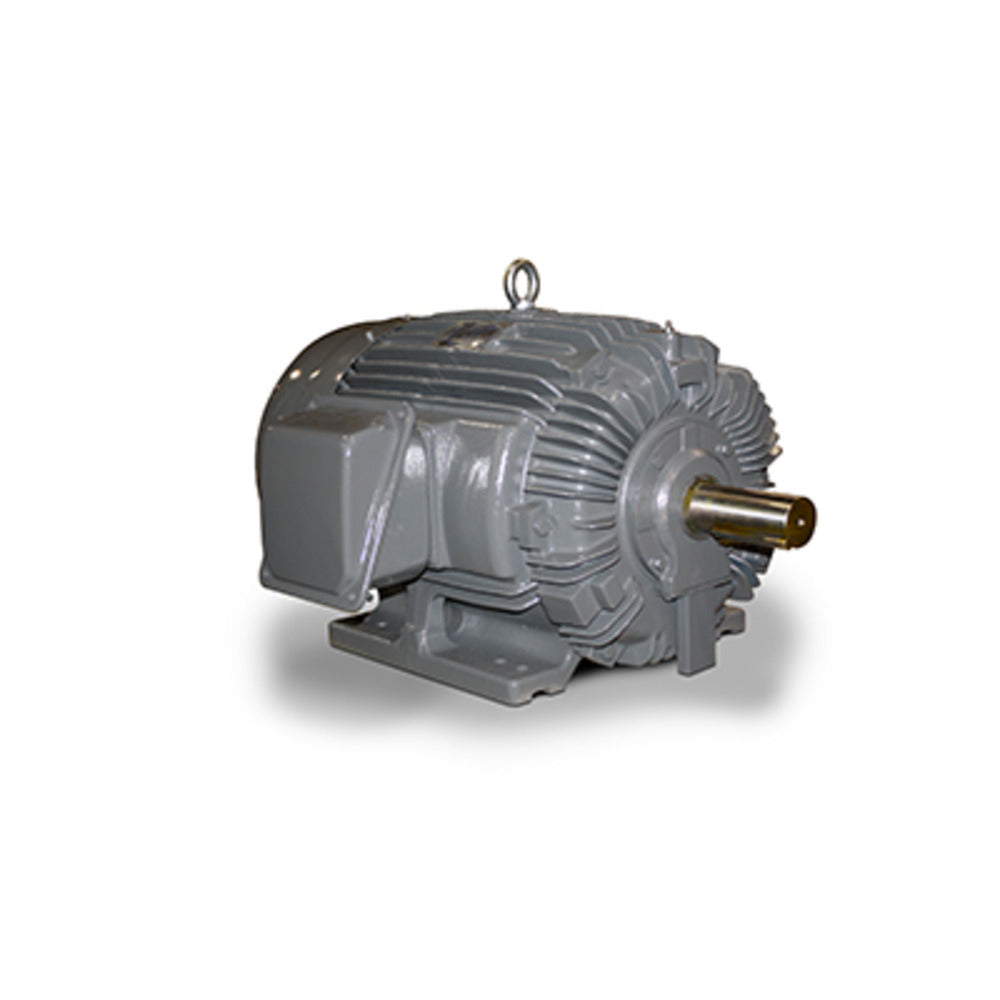

TECO NP0022C General Purpose Motor 2 HP 3600 RPM

Product Description

The TECO NP0022C is a general purpose motor designed for various industrial applications. This three-phase motor provides two horsepower and operates at a speed of three thousand six hundred revolutions per minute. It has a frame size of 145TC and is designed with a totally enclosed fan-cooled (TEFC) enclosure. The motor is rated at a voltage of 230/460 and features reverse rotation.

• Electrical Type: Three Phase
• Voltage: 230/460
• Mounting: C-Face / Footed

Product Highlights

Reliable performance in demanding applications with a robust design for durability

Product Information

Standard Information

• Frame Size: 145TC
• Amperage: 2.52
• Material: Cast Iron

Technical Specifications

• Horsepower: 2
• RPM: 3600
• Enclosure: TEFC
• Rotation: REV
• Overload Protection: None
• Phase: Three
• Motor Mounting Type: C-Face/Footed
