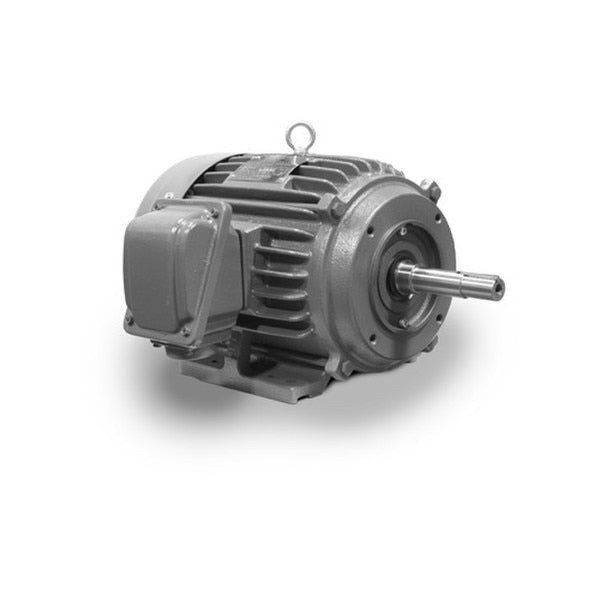

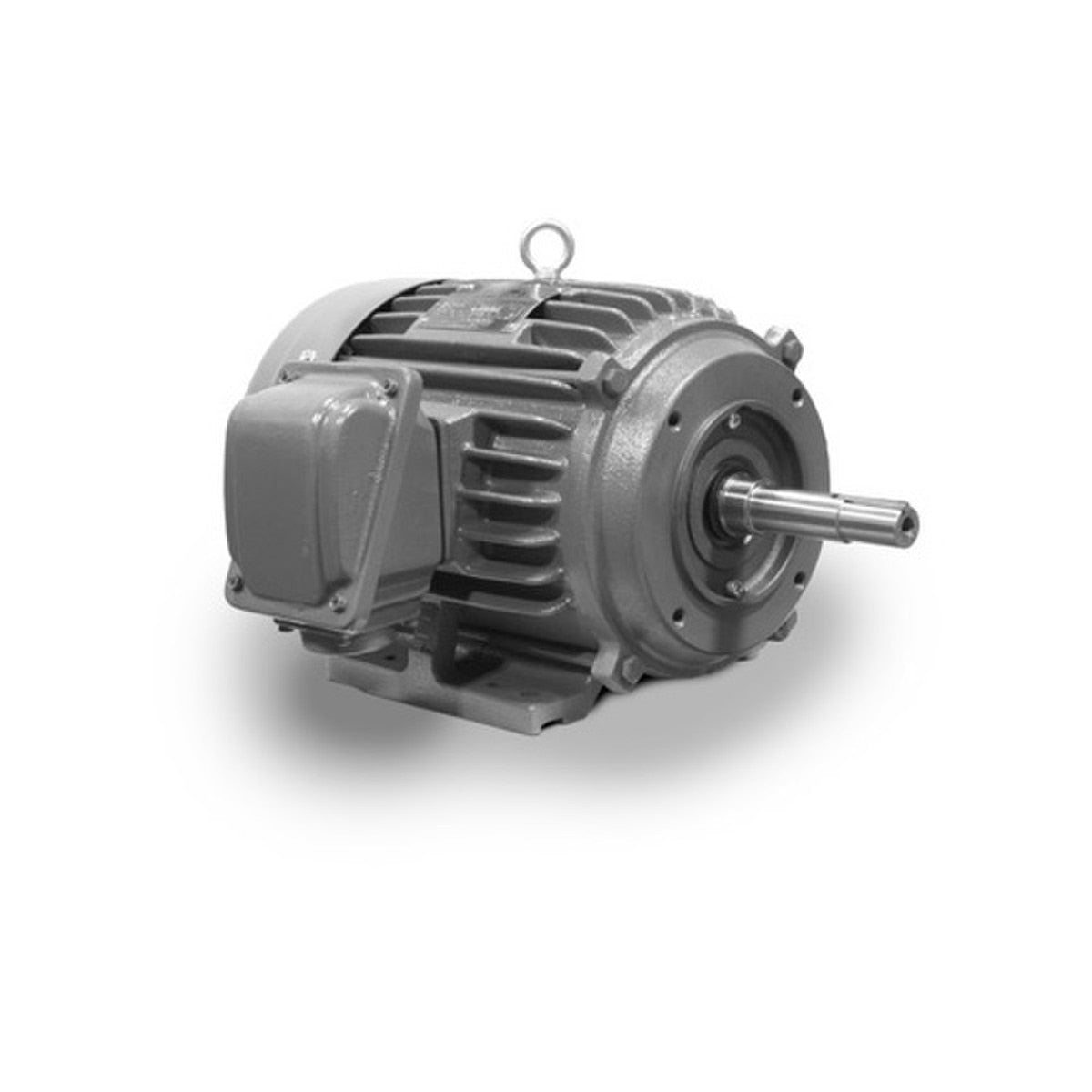

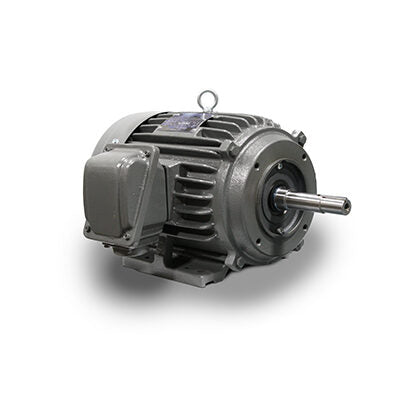

TECO JPP7/54 AC Motor 7.5 HP 3 Phase N/A

Product Description

The TECO JPP7/54 is a three-phase AC motor suitable for general use. It features a totally enclosed fan cooled (TEFC) design with a cast iron frame.

• Designed for inverter compatibility with a 10:1 variable torque range.
• Operates at up to 3300 ft elevation.
• Certified for Class I, Div. 2 hazardous locations.

Product Highlights

This motor can handle bi-directional rotation and is effective at a maximum ambient temperature of 40 degrees Celsius.

Product Information

Standard Information

• Manufacturer: TECO
• MPN: JPP7/54

Technical Specifications

• Horsepower: 7.5 hp
• Speed: 1800 RPM
• Frame Size: 213JP
• Input Voltage: 230/460VAC
• Output Current: 8.85 A
• Phase: 3 Phase
• Nominal FL Efficiency: 91.7%
• Weight: 186 lbs
• Mounting Type: JP Foot Mount
