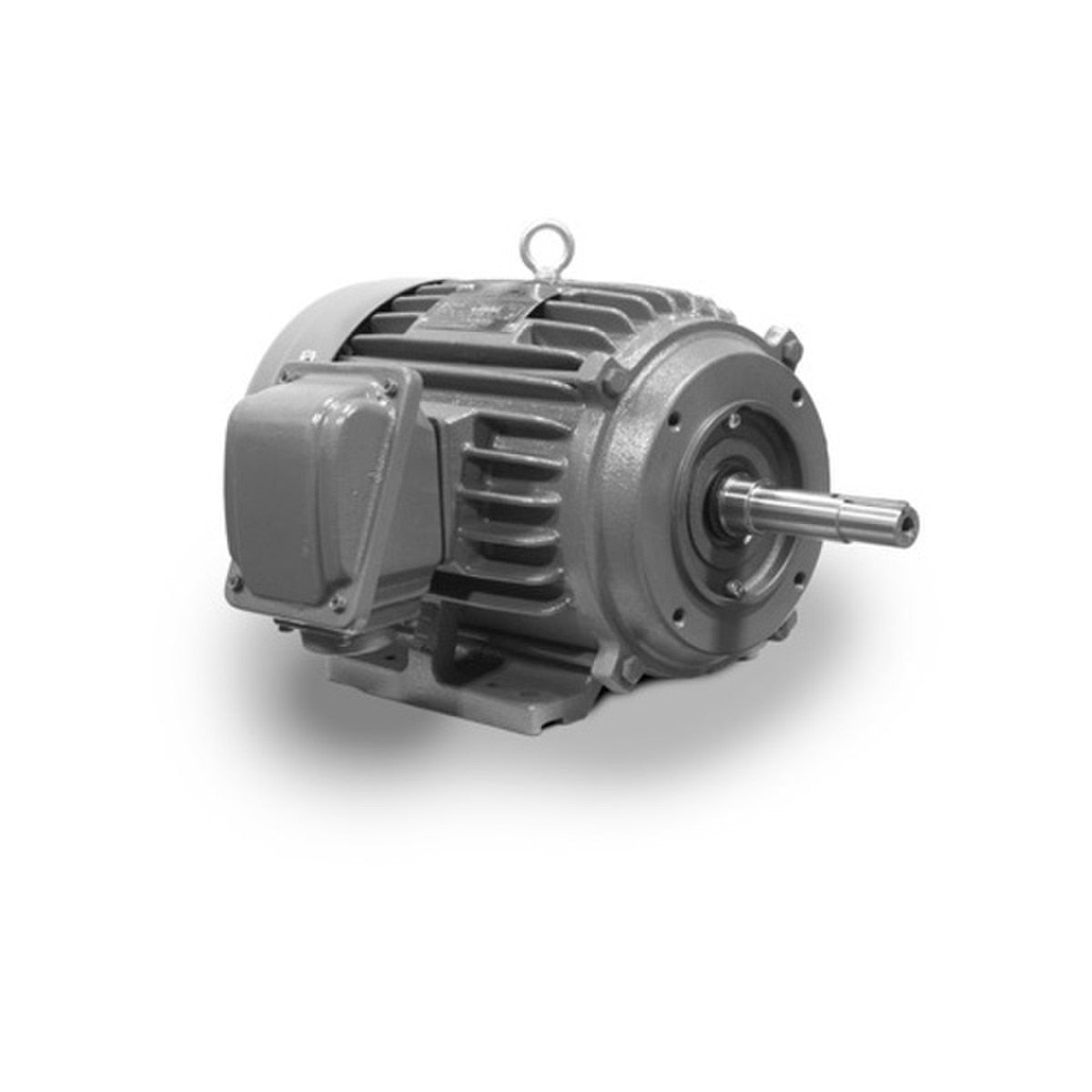

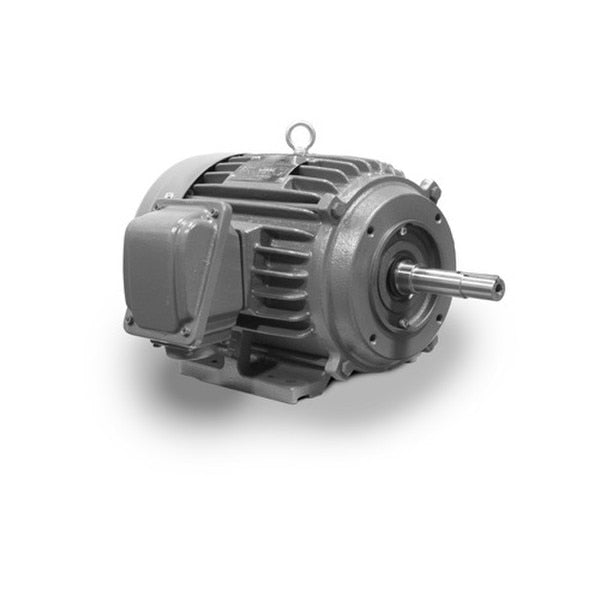

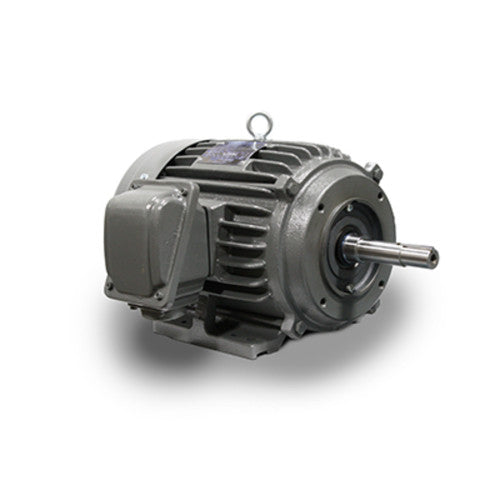

TECO JPP7/52 AC Motor 7.5 HP 3 Phase TEFC

Product Description

The TECO JPP7/52 is a three-phase AC motor designed for pump applications. This motor has a robust cast iron frame providing durability. It features a totally enclosed fan-cooled enclosure enhancing its operational reliability. The motor operates at three thousand six hundred RPM, making it suitable for various inverter applications.

• Rated for 7.5 horsepower
• Operates efficiently at 230/460VAC
• Designed for inverter use with a speed range of 10:1 variable torque

Product Highlights

This motor supports heavy-duty use in pump systems with a full-load efficiency of ninety-one percent. The TEFC design provides protection against dust and moisture, contributing to a longer lifespan.

Product Information

Standard Information

• Brand: TECO
• MPN: JPP7/52

Technical Specifications

• Horsepower: 7.5 hp
• RPM: 3600
• Voltage: 230/460V
• Frequency: 60Hz
• Phase: 3 Phase
• Frame: 213JP
• Enclosure: TEFC
• Full Load Amperage: 8.67A
• Service Factor: 1.15
• Insulation Class: Class F
• IP Rating: IP54
• Mounting Type: JP Foot Mount
• Full Load Efficiency: 91%
• Full Load Power Factor: 89%
• Temperature Rise: Class B
• NEMA Design: B
• Ambient Temperature: Designed for < 40°C
• Elevation: Designed for < 3300 ft.
• Rotation: Bi-Directional
• Shaft Material: 1045 Carbon Steel
• Inverter Duty Speed Range: 10:1 Variable Torque / 5:1 Constant Torque
• UL Recognized: Yes
• CSA Approved: Yes
• CE Marked: Yes
• Bearings: Ball Bearings
