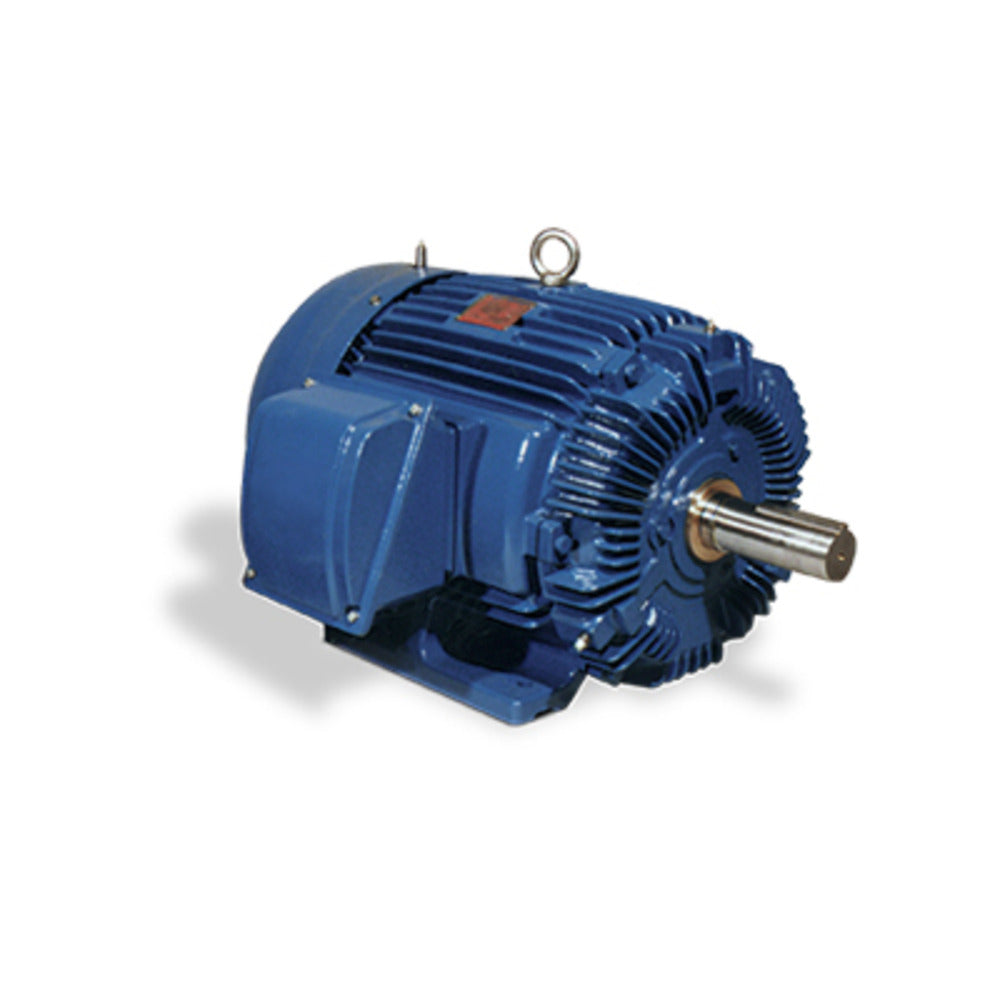

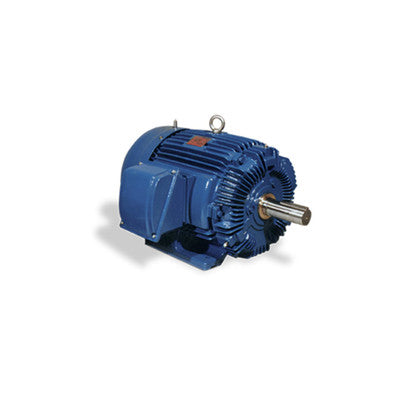

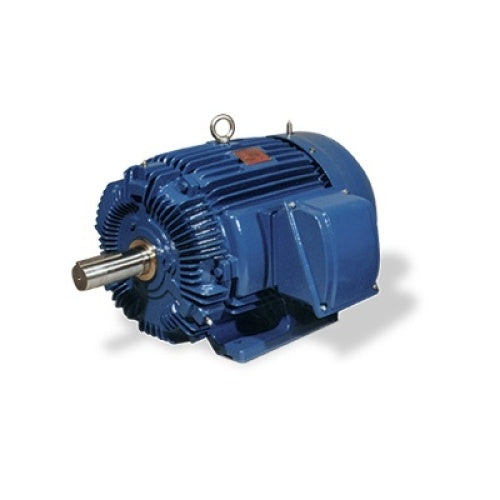

Teco HB0202 Max-E2/841 AC electric induction motor 20 HP (256T frame) HB0202

Brand: TECO
SKU: HB0202
Availability: Out Of Stock
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
$2,255.28
$2,255.28
LTL Delivery

This product weighs 367 lb each and will be shipped via LTL carrier. A lift gate option will be added free of charge for your convenience.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

Teco HB0202 is a Max-E2/841 series 20 HP, 3600 RPM three-phase TEFC AC electric induction motor nameplated for 460 V and built on a 256T frame. It delivers 92.4% full-load efficiency with a 21.9 A full-load amperage and a 1.15 continuous service factor. The cast iron severe-duty construction features Class F insulation, inverter-duty windings, IP56 ingress protection, regreasable bearings and an oversized rotatable conduit box, suitable for pumps, compressors, fans and conveyors.

  • 20 HP, 3600 RPM, three-phase; nameplated for 460 V, full-load amperage 21.9 A and service factor 1.15
  • Totally enclosed fan cooled (TEFC) 256T cast iron frame with IP56 ingress protection; Class F insulation with Class B temperature rise
  • IEEE 841 severe-duty design; inverter duty rated, regreasable bearings and oversized rotatable conduit box

Product Highlights

20 HP TEFC industrial motor, 256T frame, 460 V three-phase, IEEE 841 severe-duty, inverter duty, Class F insulation

Product Information

Standard Information

  • Brand: TECO
  • Manufacturer Part Number: HB0202
  • Country of Origin: China

Technical Specifications

  • Brand: Teco
  • MPN: HB0202
  • Model: HB0202
  • Series: MAX-E2/841
  • Horsepower: 20 HP
  • Speed (RPM): 3600 RPM
  • Input Voltage: 460 V @ 60 Hz
  • Phase: 3 Phase
  • Frame: 256T
  • Enclosure: Totally Enclosed Fan Cooled (TEFC)
  • IP Rating: IP56 (IP66 noted - see notes)
  • Full Load Efficiency: 92.4%
  • Full Load Power Factor: 92.5%
  • Full Load Amperage: 21.9 A
  • Service Factor: 1.15 (continuous)
  • Insulation Class: Class F (Class B temperature rise)
  • Standards: Meets or exceeds IEEE 841; Meets IEEE 45 Marine Duty and ABS Design Assessment up to 150 HP
  • Inverter Duty: Inverter duty per NEMA MG 1, Part 31 (PWM rated)
  • Construction: Cast iron frame and end brackets
  • Rotor: Aluminum die cast squirrel cage
  • Shaft Material: 1045 carbon steel
  • Mounting Type: F1 foot mount (rigid base); oversized rotatable conduit box
  • Paint: 2-part epoxy; Blue (Munsell 5PB 3/8)
  • Recommended Applications: Fans, blowers, compressors, pumps, crushers, mixers, conveyors; severe duty/petro-chem/pulp & paper
