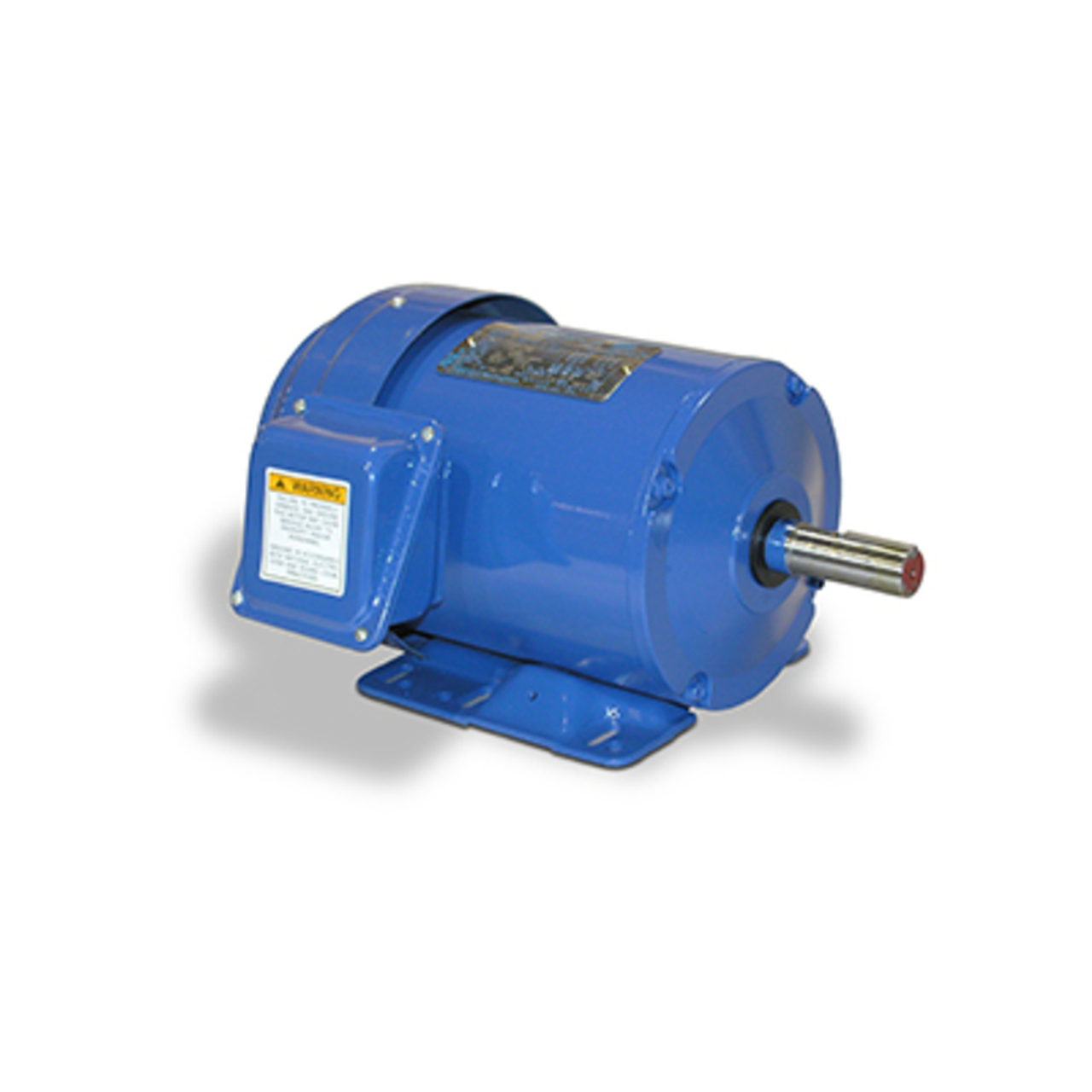

TECO GP1/54 AC Motor 1.5 HP

Product Description

The TECO GP1/54 is a three-phase AC motor designed for general-purpose applications. This motor operates at 1800 RPM and supports voltages of 230 and 460 volts. The motor's durable TEFC enclosure protects internal components from dust and moisture, ensuring reliability in various environments.

• 1.5 HP motor
• Operates at 1800 RPM
• Inverter duty compatible

Product Highlights

This motor features a rolled steel frame for added strength and a footed mounting for stability. Suitable for continuous operation in standard and variable torque applications.

Product Information

Standard Information

• Manufacturer Part Number: GP1/54
• Horsepower: 1.5 hp

Technical Specifications

• RPM: 1800
• Input Voltage: 208/230/460VAC
• Frame Size: 56/143/145T
• Phase: 3
• Enclosure: TEFC
• Full Load Efficiency: 86.5%
• Mounting Type: Footed (Rigid Base)
• Full Load Amperage: 4.03A
• Service Factor: 1.15 (Continuous); (1.0 @ 50 Hz)
• Insulation Class: F
• Temperature Rise: Class B
• NEMA Design: B
• Ambient Temperature: Designed for 40°C
• Elevation: Designed for < 3300 ft.
• Rotation: Bi-Directional
• Bearings: Double Shielded Pre-Packed
• Inverter Duty Speed Range: 20:1 Variable Torque; 10:1 Constant Torque
• Full Load Power Factor: 80.5%
