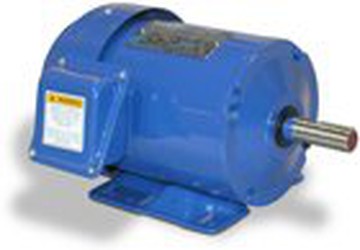

Teco GP1/52G Electric Induction Motor 1.5 HP TEFC 208/230/460 Volt

Product Description

The Teco GP1/52G is a reliable electric induction motor designed for various applications. This motor operates at 1.5 horsepower, with a speed of three thousand six hundred revolutions per minute. It is a totally enclosed fan cooled unit, ensuring durability and efficiency across various environments. Suitable for use in fans, blowers, compressors, and pumps, it adapts well to HVAC systems.

• 208/230/460 volts at sixty hertz
• High efficiency rated at eighty-five point five percent
• Factory new with manufacturer's warranty

Product Highlights

This product features a robust design, ideal for continuous use and offers a one point fifteen service factor.

Product Information

Standard Information

• Application: HVAC Equipment
• Type: Electric Motor

Technical Specifications

• Horsepower: 1.5 HP
• RPM: 3600
• Frame Size: 143T
• Voltage: 208/230/460
• Efficiency: 85.5%
• Power Factor: 83%
• Full Load Amperage: 3.96 A
• Insulation Class: Class F
• Temperature Rise: Class B
• Construction Material: Rolled Steel Frame and Conduit Box
• Shaft Material: 1045 Carbon Steel
