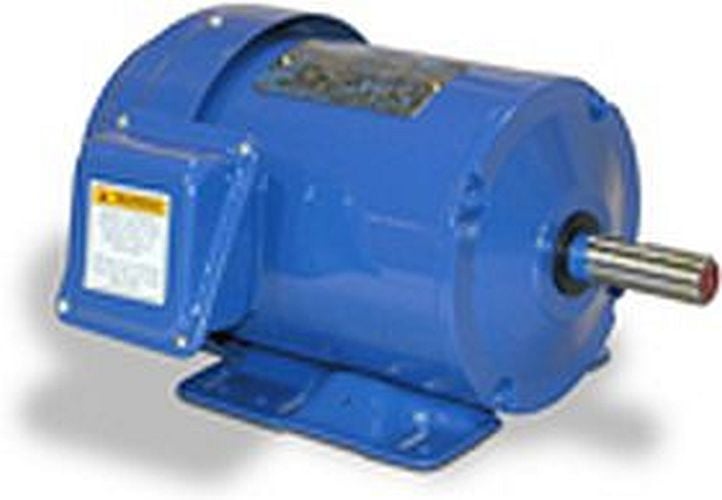

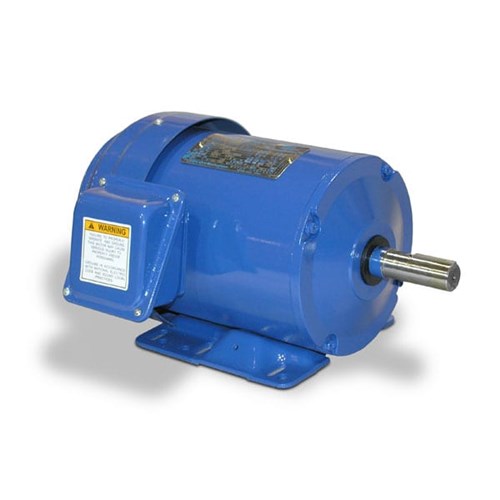

TECO GH0/74 Rolled Steel TEFC Electric Motor

Product Description

The TECO GH0/74 is a three-phase electric motor made of rolled steel. It is a totally enclosed fan cooled (TEFC) motor meant for various applications such as fans, blowers, compressors, and HVAC systems. This motor runs on voltages of two hundred eight, two hundred thirty, and four hundred sixty at sixty hertz. It also supports inverter duty applications.

• Operates at 208/230/460 Volts and is suitable for inverter duty.
• Features a robust rolled steel frame with fan cover and main conduit box.
• Double shielded bearings are pre-packed with MULTEMP SRL for durability.

Product Highlights

This motor is ideal for applications in HVAC and other general-purpose settings.

Product Information

Standard Information

• Brand: TECO
• MPN: GH0/74

Technical Specifications

• HP: 0.75
• RPM: 1800
• Phase: 3
• Enclosure: TEFC
• Frame: 56
• Mounting Design: Foot Mount
• Frequency: 60 Hz
• Service Factor: 1.15
• Insulation Class: F
• Temperature Rise: Class B
• Enclosure Rating: IP44
