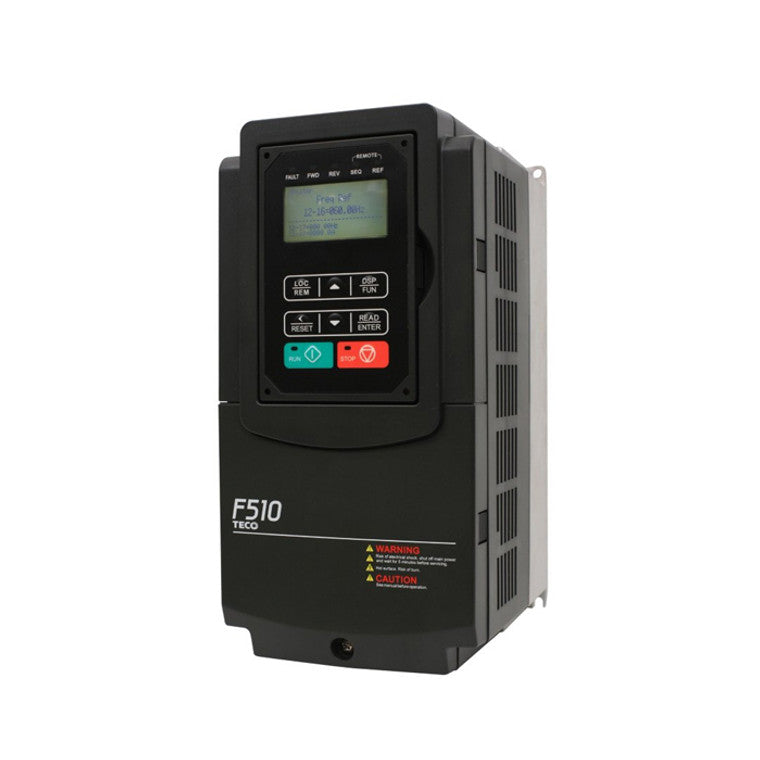

TECO F510-2005-C3-UE Westinghouse F510 Series Fan and Pump AC Drive 5 hp REPLACED/LATEST VERSION OF F510-2005-C3-U

Product Description

The TECO F510-2005-C3-UE Westinghouse F510 Series is a fan and pump AC drive designed for easy configuration in various applications including fans, blowers, and centrifugal pumps. It features preset application parameters specifically for fan and pump uses. This AC drive regulates up to four pumps and supports both induction and permanent magnet motors. It includes a standard RS485 port for RTU Modbus Metasys and BACNet communication.

• Upgraded CPU design on control board
• Expansion slot for optional I/O and communication cards
• Standard LCD keypad

Product Highlights

This drive features advanced control options and connectivity for reliable operation in HVAC and pumping systems.

Product Information

Standard Information

• Brand: TECO
• Model: F510-2005-C3-UE

Technical Specifications

• Alternate Part Number: Replaced/Latest Version of F510-2005-C3-U
• Horsepower: 5 hp
• Input Phase: 3 Phase
• Input Voltage: 200-240V, 3 Phase
• Output Voltage: 230 V
• Current Rating: 14.5 A
• Enclosure Rating: NEMA 1
• Dimensions: 12.40 in x 5.51 in x 6.97 in
• Weight: 12.1 pounds
• Warranty: 3 Years
