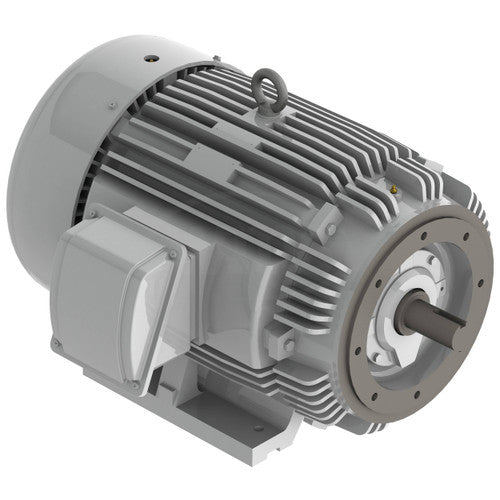

TECO EP0154C Electric Motor 15 hp 254TC

Product Description

The TECO EP0154C is a three-phase electric motor designed for heavy-duty applications. This motor features a robust cast iron frame and is totally enclosed and fan cooled (TEFC) with an IP54 rating. Suitable for inverter use, this electric motor has Class F insulation and is recognized by U.L. and CSA while also being CE marked.

• NEMA 254TC frame.
• Operates at 1800 RPM.
• Designed for 230/460V operation at 60Hz.

Product Highlights

The TECO EP0154C is perfect for various industrial applications requiring reliable performance in tough conditions. Its design allows for efficient operation and longevity.

Product Information

Standard Information

• Brand: TECO
• MPN: EP0154C

Technical Specifications

• Horsepower: 15 hp
• Speed: 1800 RPM
• Frame Size: 254TC
• Input Voltage: 230/460V
• Enclosure Type: TEFC
• Phase: 3
• Full Load Amps: 17.3 amps
• Frequency: 60 Hz
• Service Factor: 1.15
• Insulation Class: Class F
• Ingress Protection: IP54
• Nominal Full Load Efficiency: 92.4
• Weight: 310 lbs
