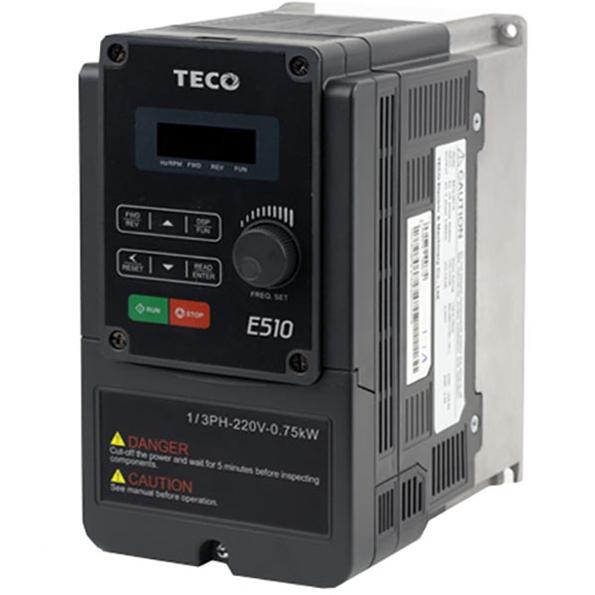

TECO E510-205-H3-U E510 Series Compact Drive

Product Description

The TECO E510-205-H3-U is a compact AC drive intended for the control of motor-driven applications. This V/Hz sensorless vector drive is compatible with both permanent magnet and induction motors. Key features include analog inputs, a larger control terminal strip for input and output, a directional jog function, and a dedicated safety input terminal. Enhanced monitoring diagnostics and PLC functionality are also provided. This drive is ideal for retrofitting or replacing older VFDs in various applications like conveyors, mixing equipment, fans, pumps, and lathes.

• Controls both permanent magnet and induction motors.
• Analog inputs supported: 0-10VDC and 4-20mA.
• Built-in PLC functionality enhances usability.

Product Highlights

Product Information

Standard Information

• Brand: TECO
• MPN: E510-205-H3-U

Technical Specifications

• Horsepower: 5 HP
• Input Voltage: 200-240V, 3 Phase
• Output Voltage: 230V, 3 Phase
• Output Current: 17.5 Amp
• Enclosure: IP20/NEMA 1
• Mounting Type: Bolt On
• Rated Input Current: 230VAC, 3 Phase 50/60Hz
• Dimensions: Height: 8.29 inches, Width: 5.07 inches, Depth: 6 inches
• Weight: 6 lbs
• Additional Features: Detachable Keypad with Speed Pot
• Certification: UL, cUL, and CE Approved
• Warranty: 3 Years
• Torque Load: Constant/Variable (CT/VT)
