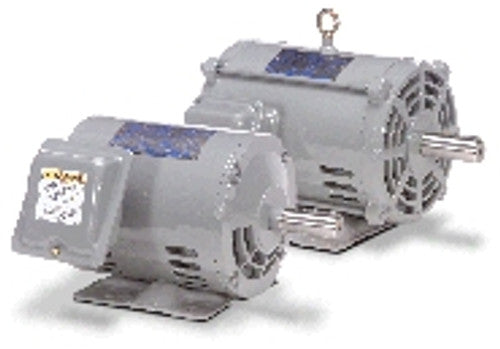

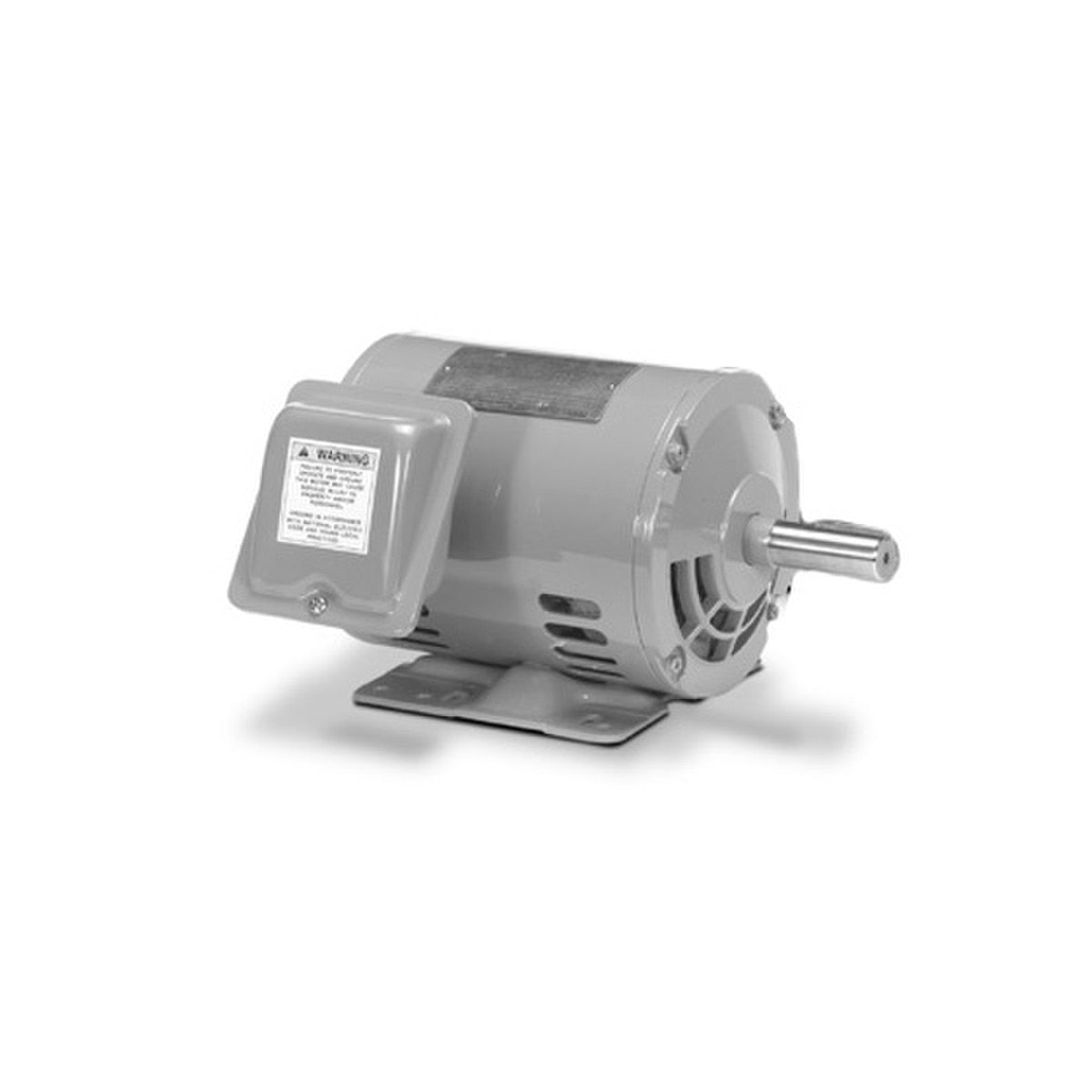

TECO DTP7/54G Electric Motor 7.5 HP 3-Phase

Product Description

The TECO DTP7/54G is a three-phase electric motor ideal for many general-purpose applications. The motor features an open drip-proof enclosure and a robust rolled steel frame. It is suitable for inverter use and incorporates a shaft grounding ring to protect bearings. This design allows for bi-directional rotation. The motor is U.L. Recognized, CSA Approved, and CE Marked.

• Horsepower: 7.5 HP
• Speed: 1800 RPM
• Enclosure: Open Drip Proof (ODP)

Product Highlights

Designed for reliability, the TECO DTP7/54G offers durable construction and high efficiency for various applications.

Product Information

Standard Information

• Brand: TECO
• MPN: DTP7/54G

Technical Specifications

• Horsepower: 7.5 HP
• RPM: 1800 RPM
• Frame: 213T
• Voltage: 230/460V
• Phase: 3-Phase
• Enclosure: Open Drip Proof (IP22)
• Service Factor: 1.15 (Continuous); (1.0 @ 50 Hz)
• Insulation Class: Class F
• Inverter Duty Speed Range: 20:1 Variable Torque, 10:1 Constant Torque
• Full Load Efficiency: 91%
• Full Load Power Factor: 81%
• Full Load Amperage: 19.1A
• Temperature Rise: Class B
• NEMA Design: B Torques
• Ambient Temperature: Designed for 40°C
• Elevation: Designed for 3300 ft.
• Rotation: Bi-Directional
• Shaft: 1045 Carbon Steel
• Rotor Construction: Aluminum Die Cast Squirrel Cage
• Paint Color: Premium - Blue - Munsel 5PB 3/8
• Bearings: Double Shielded Pre-Packed with MULTEMP SRL (Non-regreasable)
• Mounting Type: Foot Mount
• Shaft Diameter: 1 1/8
• Shaft Length: 2 3/4
• Weight: 158 lbs
