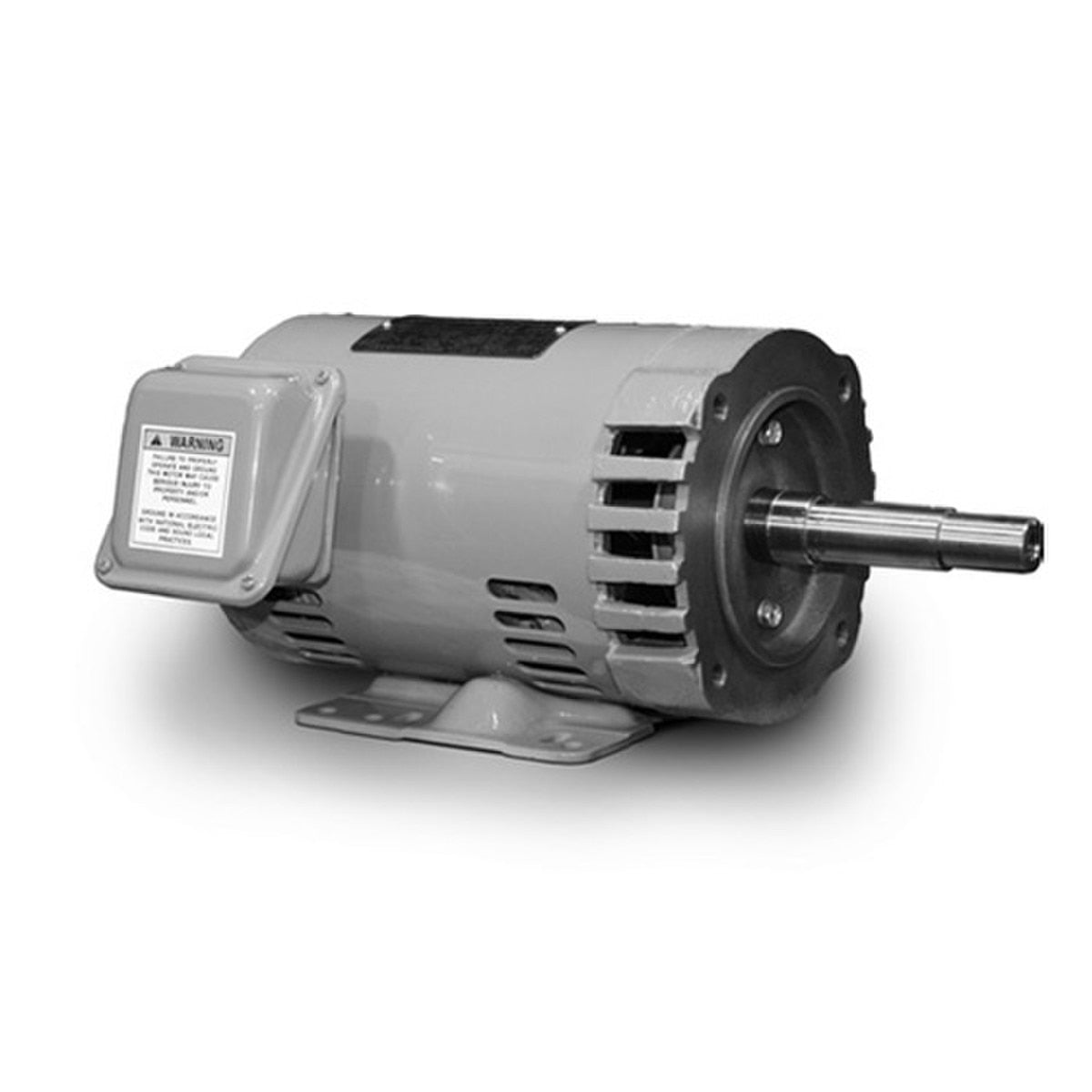

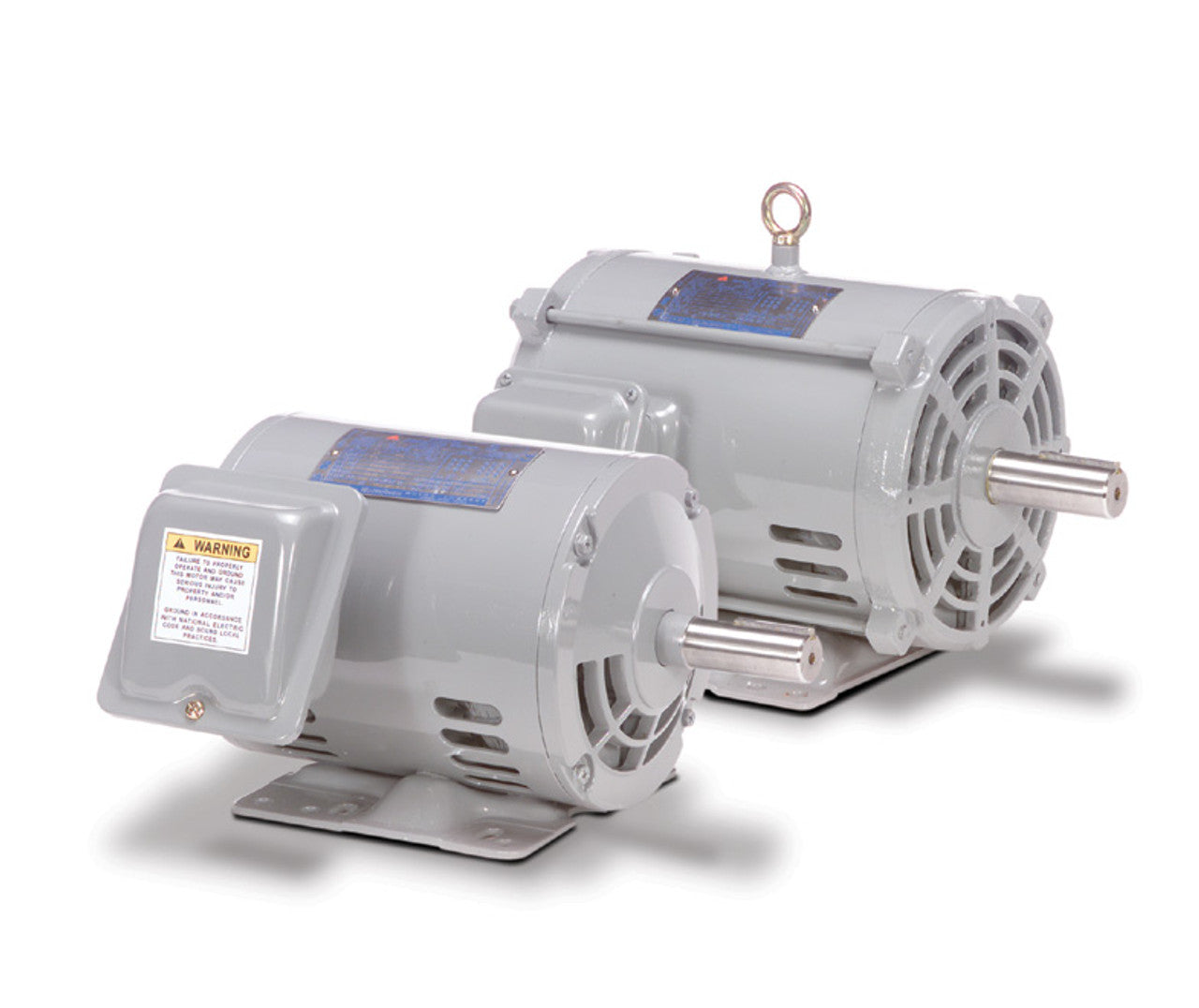

TECO DJPP7/54 AC Motor 7.5 HP (N/A) Replacement MPN

Product Description

The TECO DJPP7/54 is a three-phase AC motor designed for pump applications. It operates at two hundred thirty to four hundred sixty volts and runs at one thousand eight hundred RPM. The motor has a seven point five horsepower rating and features an open drip proof enclosure. It is suitable for inverter duty applications within a specific speed range.

• Horsepower: Seven point five HP
• Speed: One thousand eight hundred RPM
• Enclosure: Open Drip Proof

Product Highlights

This motor is built for durability and efficiency in various pump applications.

Product Information

Standard Information

• Brand: TECO-Westinghouse
• MPN: DJPP7/54

Technical Specifications

• Horsepower: 7.5 HP
• RPM: 1800
• Input Voltage: 230/460VAC
• Phase: 3
• Enclosure: ODP
• Frame Size: 213JP
• Full Load Efficiency: 91%
• Full Load Power Factor: 81%
• Full Load Amperage: 19.1A
• Service Factor: 1.15 (Continuous); (1.0 @ 50 Hz)
• Insulation Class: Class F
• Temperature Rise: Class B
• NEMA Design: B
• Ambient Temperature: Designed for 40°C
• Elevation: Designed for 3300 ft.
• Rotation: Bi-Directional
• Shaft Material: 1045 Carbon Steel
• Inverter Duty Speed Range: 20:1 Variable Torque; 10:1 Constant Torque
• Frame Remarks: FOOTED
• Construction: Rolled Steel Frame
• Frequency: 60 Hz
• Weight: 155 lbs.
