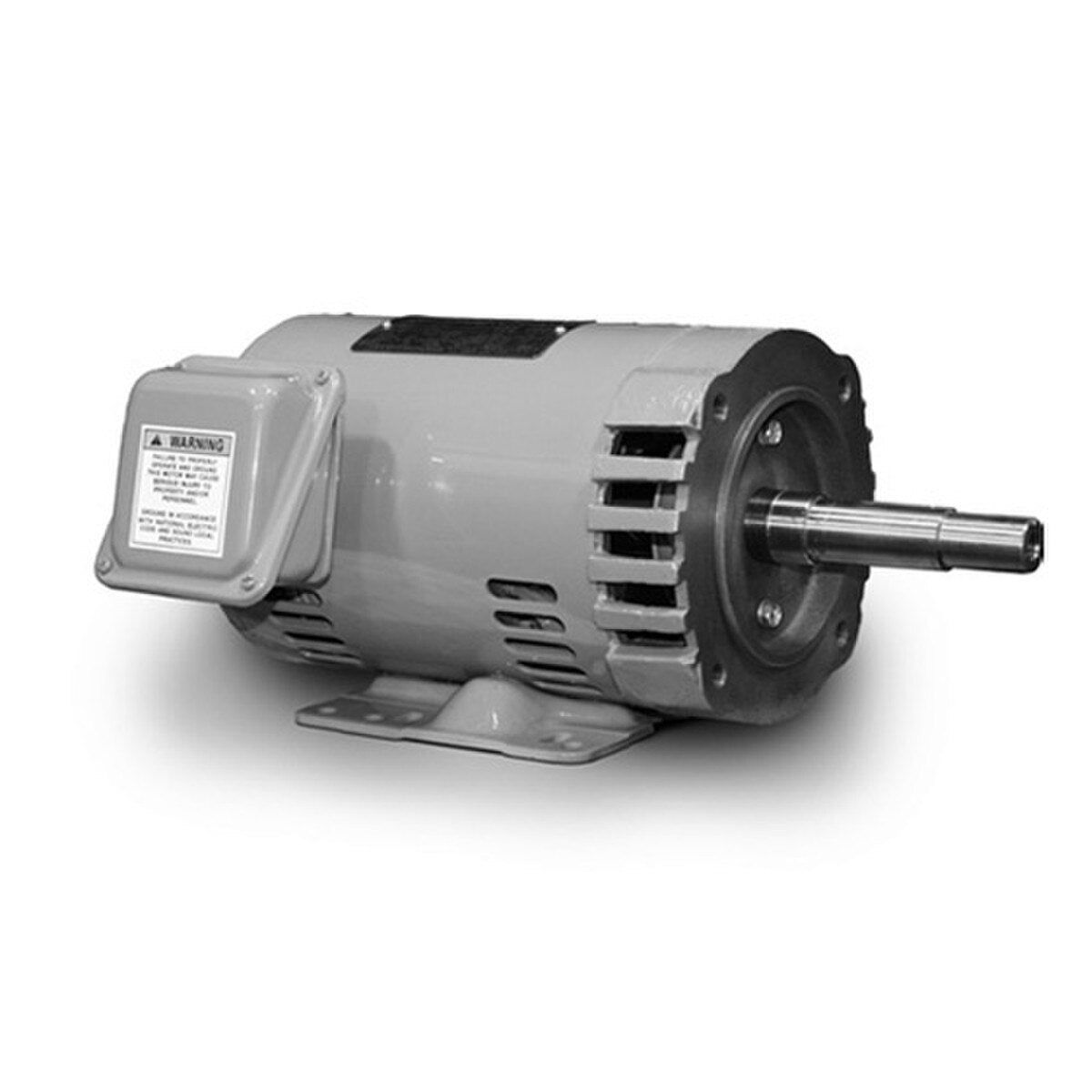

TECO DJPP7/52 AC Motor 7.5 HP 230/460VAC

Product Description

The TECO DJPP7/52 is an efficient three-phase AC motor designed for various pump applications. This motor operates effectively at 230/460VAC and a speed of 3600 RPM, making it suitable for a range of tasks. The open drip-proof (ODP) enclosure ensures protection in various environments, and the rolled steel frame provides durability.

• Horsepower: 7.5 HP
• Speed: 3600 RPM
• Enclosure Type: Open Drip Proof (ODP)

Product Highlights

This motor is ideal for inverter duty applications, accommodating a variable torque speed range of 20:1 and a constant torque speed range of 10:1, enhancing its versatility for different operational requirements.

Product Information

Standard Information

• Brand: TECO-Westinghouse
• Model Number: DJPP7/52

Technical Specifications

• Horsepower: 7.5 HP
• RPM: 3600
• Voltage: 230/460 VAC
• Frame: 182/184JP
• Phase: 3
• Enclosure Type: ODP
• Full Load Amperage: 8.8 FLA
• Efficiency Rating: 87.5%
• Operating Frequency: 60 Hz
