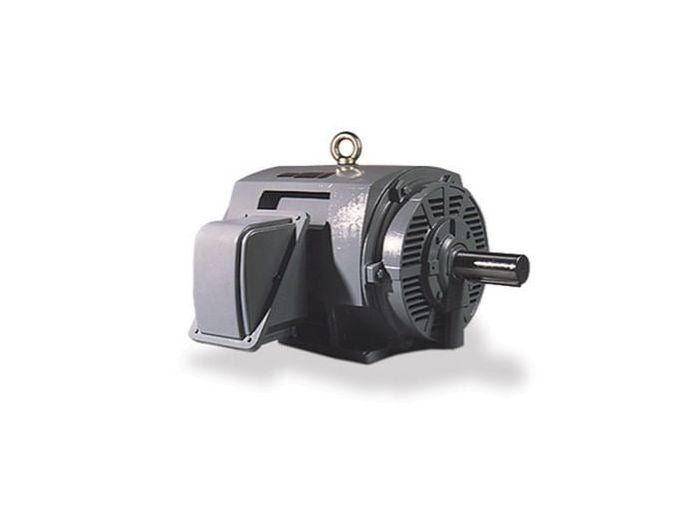

Teco DHP7/52 Premium AC Induction Motor 7.5 HP 184T Frame

Brand: TECO
SKU: DHP7/52
Availability: In Stock

Ships via freight in 1-3 business days
$601.07
$601.07
LTL Delivery

This product weighs 134 lb each and will be shipped via LTL carrier. A lift gate option will be added free of charge for your convenience.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

Teco DHP7/52 is a 7.5 HP premium AC induction motor rated for 3600 RPM in a 184T frame. It is a three-phase open drip proof (ODP) motor designed for 208/230/460 V at 60 Hz with inverter-duty magnet wire and a 1.15 service factor (1.0 when used with a VFD). The motor features cast iron construction, a 1045 carbon steel shaft, aluminum die-cast rotor, rotatable conduit box, and bi-directional rotation suitable for pumps, fans, blowers, HVAC and compressors.

  • Electrical: 7.5 HP, 3600 RPM, 3-phase, 208/230/460 V @ 60 Hz, full load amperage 8.7 A
  • Construction: 184T cast iron frame, 1045 carbon steel shaft, aluminum die-cast squirrel cage rotor, open drip proof (IP22)
  • Performance: NEMA Premium efficiency 88.5%, power factor 91.5%, Class F insulation, Class B temperature rise, inverter-duty per NEMA MG1

Product Highlights

7.5 HP, 3600 RPM three-phase ODP motor; 184T cast iron frame; inverter-duty magnet wire; 1.15 service factor; CE/UL/CSA approvals

Product Information

Standard Information

  • Brand: TECO
  • Manufacturer Part Number: DHP7/52
Technical Specifications
Brand
TECO
MPN
DHP7/52
Description
Premium AC induction motor, open drip proof (ODP)
Horsepower
7.5 HP
Kilowatts
5.6 kW
Speed (RPM)
3600 RPM
Number of Poles
2
Input Voltage
208/230/460 V @ 60 Hz (usable on 208 V)
Phase
3 Phase
Enclosure
Open Drip Proof (ODP), IP22
Frame
184T
Mounting Type
Foot mount (F1); F2 available
Full Load Amps
8.7 A
Full Load Efficiency
88.5%
Power Factor
91.5%
Service Factor
1.15 continuous (1.0 when used with a VFD)
Insulation Class
Class F (phenolic alkyd resin varnish)
Temperature Rise Class
Class B
Design
NEMA Design B torques
Inverter Duty
Inverter-duty magnet wire per NEMA MG1, Part 31
Leads
12 leads
Rotation
Bi-directional
Frame Material
Cast iron frame and end brackets
Shaft Material
1045 carbon steel
Rotor Construction
Aluminum die-cast squirrel cage
Conduit Box
Oversized rotatable conduit box (rotates in 90° increments), rolled steel
Bearings
Vacuum de-gassed regreasable ball or roller bearings on larger frames; double-shielded pre-packed bearings on smaller frames
Paint System
Phenolic rust-proof base plus polyurethane top coat
Nameplate
Stainless steel
Certifications
CE marked; UL recognized; CSA approved; DOE efficiency certification #CC002A
Typical Applications
Fans, blowers, HVAC equipment, pumps, compressors, fire pumps
Weight
134 lb
