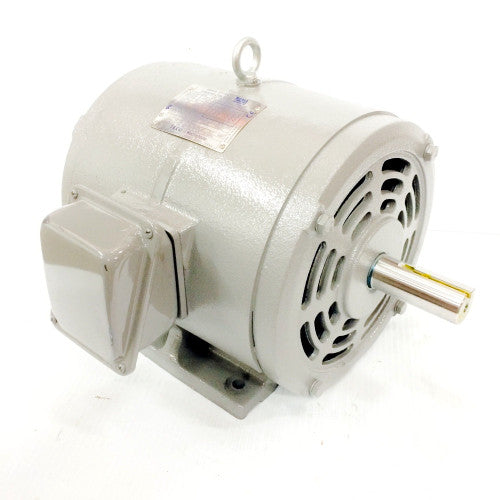

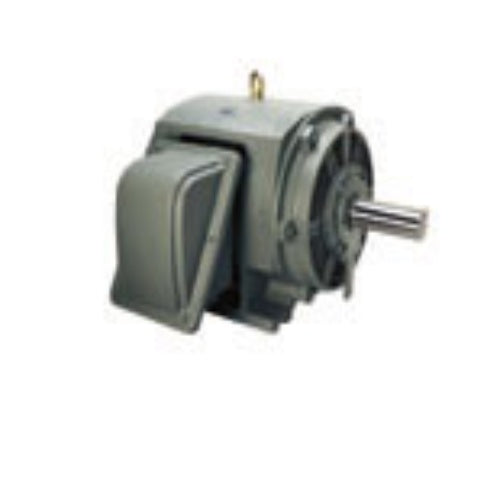

TECO DHP0604 ASHH Motor 60 HP 1800 RPM 364T

Product Description

The TECO DHP0604 ASHH motor is a three-phase AC motor designed for industrial use. With a power rating of sixty horsepower and a speed of one thousand eight hundred RPM, this motor is built for efficiency and durability. It features a cast iron ODP enclosure, making it suitable for various tasks such as running blowers, compressors, fans, HVAC systems, and pumps.

• Designed for an ambient temperature of up to forty degrees Celsius.
• U.L. Recognized, CSA Approved, and CE Marked.
• Bi-directional rotation and suitable for inverter duty.

Product Highlights

The TECO DHP0604 motor offers robust performance in demanding environments, ideal for trade professionals seeking reliability in their equipment.

Product Information

Standard Information

• Brand: TECO Westinghouse
• Type: AC Motor

Technical Specifications

• Enclosure: ODP
• Frame: 364T
• Horsepower: 60
• Frequency: 60 Hz
• Phase: 3
• RPM: 1800
• Voltage: 230/460
• Service Factor: 1.15
• Ambient Temperature: 40C
• Elevation: 3300 ft
• Efficiency Class: Premium Efficiency
• Insulation Class: Class F
• Shaft Size: 5 7/8 x 2 3/8 Dia. Keyed Shaft
