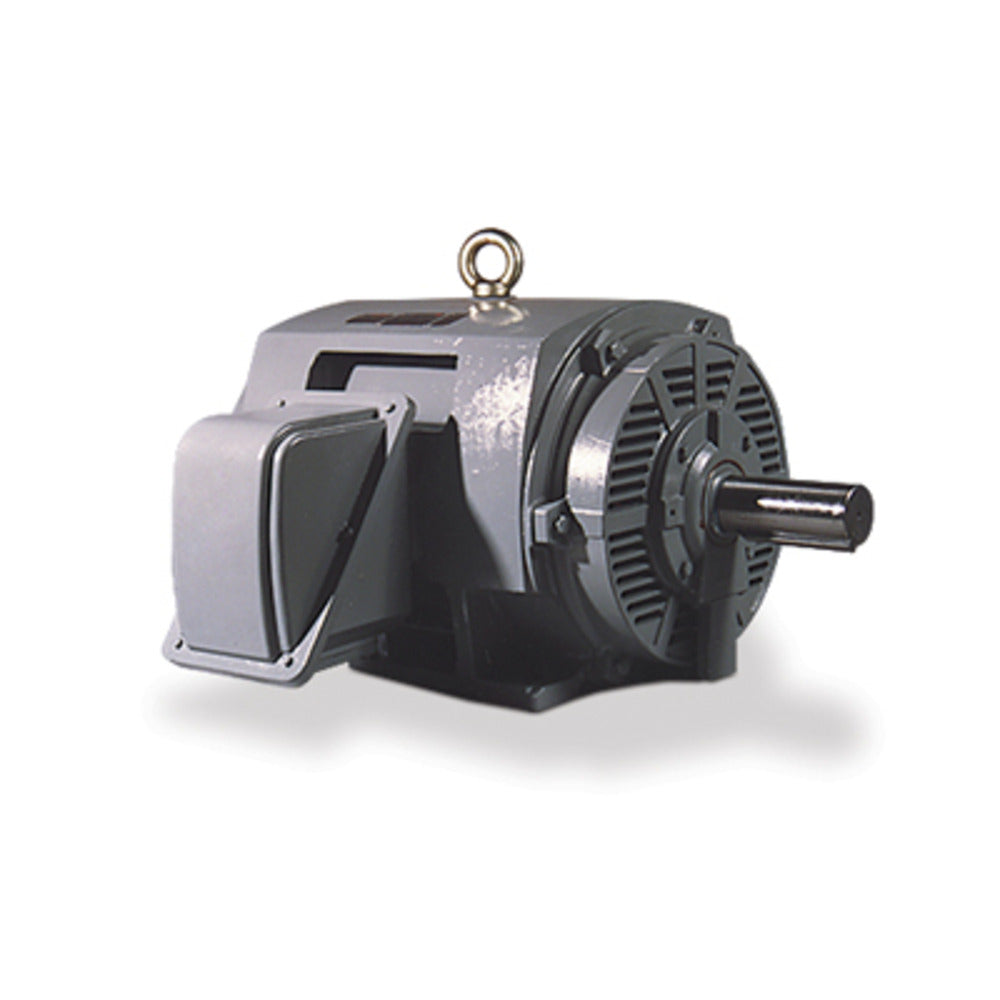

Teco DHP0032 General Purpose Motor 3 HP 230/460 Volts

Product Description

The Teco DHP0032 is a three-phase general-purpose motor designed for various industrial applications. With a power rating of three horsepower and a rotational speed of three thousand six hundred RPM, this motor efficiently operates on a dual voltage of two hundred thirty to four hundred sixty volts. It features a frame size of 145T and an open drip-proof (ODP) enclosure for reliable performance.

• Three-phase electrical type
• Cast iron construction for durability
• Rigid base mounting type

Product Highlights

This motor is suitable for applications requiring strong performance and durability. Its cast iron material offers longevity, while the rigid base ensures stability during operation.

Product Information

Standard Information

• MPN: DHP0032
• Brand: Teco

Technical Specifications

• Electrical Type: Three Phase
• Horsepower: 3
• RPM: 3600
• Frame Size: 145T
• Enclosure Type: ODP
• Voltage: 230/460
• Rotation: REV
• Amperage: 3.69
• Mounting Type: Rigid Base
• Material: Cast Iron
• Shaft Type: Single
• Overload Protection: No
