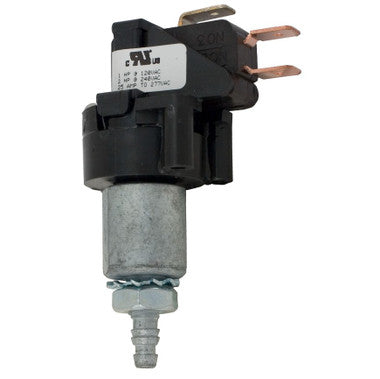

Tecmark TBS3212A Air Switch 25A (Single or Double Pole)

Product Description

The Tecmark TBS3212A Air Switch is a versatile control device designed for various applications. It is part of the TBS 3200 Series and replaces the older TBS 200 series. This air switch can be utilized in both single and double pole configurations, offering flexibility to meet specific needs.

• Compatible with 1/8 inch or 3/16 inch tubing.
• Equipped with 5/16 inch male quick connect wire terminals.
• Rated for a maximum of 25 amps with SPDT functionality.

Product Highlights

The TBS3212A is a latching switch, making it ideal for applications where the switch needs to maintain its position after activation.

Product Information

Standard Information

• Brand: Tecmark
• MPN: TBS3212A
• Type: Air Switch
• Series: TBS 3200
• Replaces: TBS 200 series
• Category: Switches, Air

Technical Specifications

• Rating: 25 amp
• Configuration: SPDT
• Tubing Options: 1/8 i.d. or 3/16 i.d.
• Terminal Type: 5/16 male quick connect tabs
• Functionality: Latching
