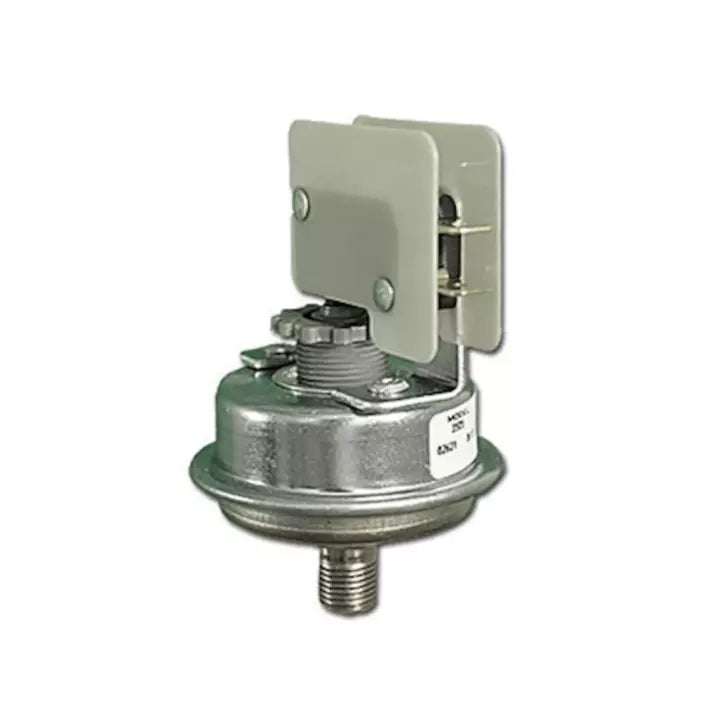

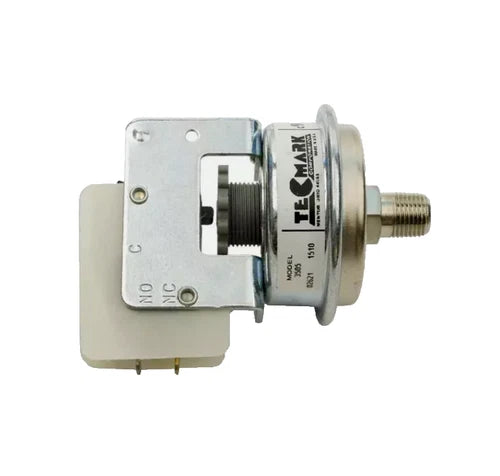

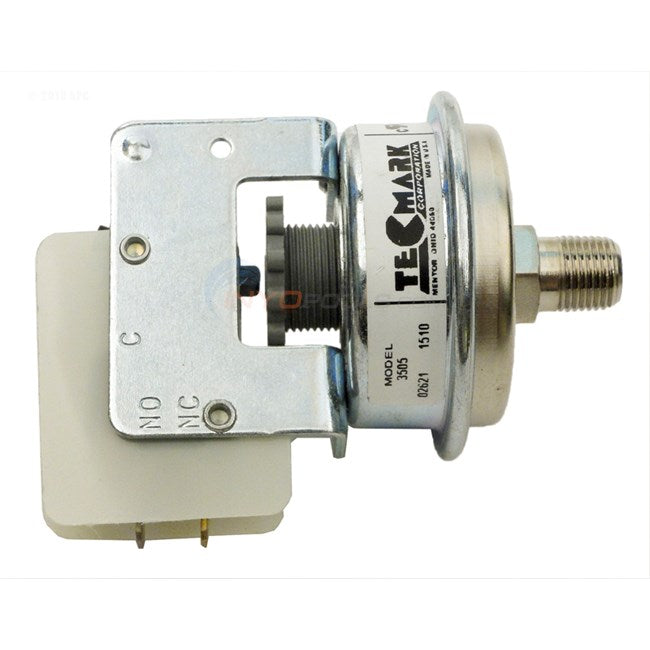

Tecmark 3505 Pressure Switch - SPDT, 5A, 1/8 NPT, 2-5 WC

Product Description

The Tecmark 3505 is a reliable pressure switch featuring a Single Pole Double Throw (SPDT) design. This switch converts pressure signals ranging from 2 to 5 inches of Water Column (W.C.) into a corresponding electrical output. It is applicable in various situations, including air, gas, and liquid sensing.

• Adjustable pressure range from 2.0 to 5.0 inches of Water Column (W.C.)
• Rated for 5 amps at 120V to 277V (non-inductive)
• 1/8 inch NPT connection for easy installation

Product Highlights

Designed for both low and high voltage setups, making it versatile for different applications.

Product Information

Standard Information

• Brand: Tecmark
• Type: Pressure Switch

Technical Specifications

• Inlet Size/Outlet Size: 0.125 inches MPT
• Thread Material: Metal
• Amperage: 5 Amps
• Model: Tecmark 3505
• Manufacturer Warranty: 1 Year
• Adjustable Range: 2.0 inches to 5.0 inches of Water Column (W.C.)
• Electrical Rating: 5 Amp, 120V to 277V (non-inductive)
• Dimensions: 2 inches Length x 3 inches Width x 2 inches Depth
• Fitting: 1/8 inch NPT hole, 3/8 inch outside metal thread measurement
