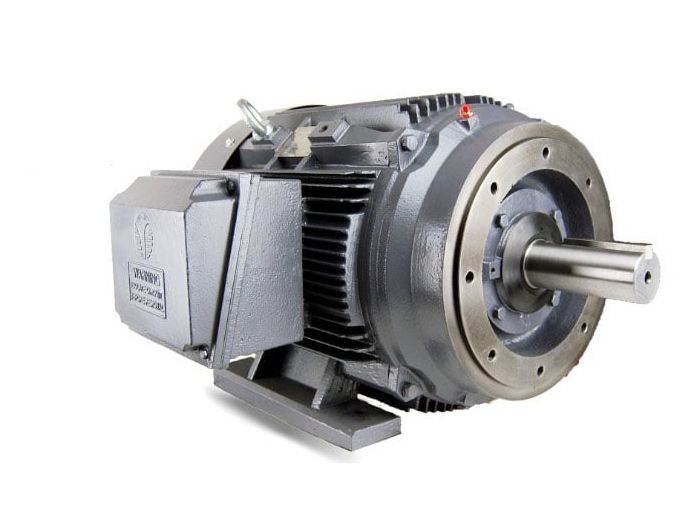

Techtop Industries GR3-CI-TF-256T-4-BR-D-20 NEMA Premium Cast Iron TEFC 1800 RPM 20 HP 256T

Product Description

TECHTOP's Premium Efficient Cast Iron Series GR3-CI-TF-256T-4-BR-D-20 is constructed with standard NEMA frames, allowing for uncomplicated and smooth substitutions of traditional Rolled Steel and Cast Iron NEMA frames. The modular design by TECHTOP is highly versatile, making it a suitable choice for diverse applications. It is suitable for both Commercial and Industrial Markets.

• NEMA Premium Energy Efficiency Design
• MG1 Part 31 Compliant for VFD use (15:1 CT)
• 2-Part Epoxy Coating - IP 55 Ingress Protection

Product Highlights

Premium efficient cast iron series motor with standard NEMA frames and a modular design suitable for diverse commercial and industrial applications.

Product Information

Standard Information

• Brand: TECHTOP INDUSTRIES
• Manufacturer Part Number: GR3-CI-TF-256T-4-BR-D-20
• Country of Origin: China

Technical Specifications

• SKU: GR3-CI-TF-256T-4-BR-D-20
• Weight (in lbs): 330.750000
• Brand/Manufacturer: TechTop
• Enclosure: TEFC
• Frame Size: 256T
• Motor RPM: 1800
• Horsepower: 20 HP
• Electrical: 230/460 Volts
• Phase: Three Phase
• Mounting Type: Base-Mounted, Foot-Mounted
• Warranty: 3 Years
• HP: 20
• RPM: 1800
• Classification: General Purpose
• Volts: 230/460
• Manufacturer: TECHTOP INDUSTRIES
• Item Condition: Factory New
• Country of Origin: China
• Inverter/Vector Duty Rating: Inverter Duty
• AC Frequency Rating: 60 Hz
• Shaft Type: Keyed
• AC Motor Type: Induction/Asynchronous
• Shaft Diameter: 1 5/8 in
• Insulation Class: F (Max 311°F)
• Reversible/Non-Reversible: Reversible
• Current Type: AC
• IP Rating: IP55
• Service Factor: 1.25
• Nominal Rated Input Voltage: 230 V, 460 V
• Model: GR3-CI-TF-256T-4-BR-D-20
• NEMA Frame Suffix: T
• AC Phase: Three Phase
• Product Series: GR3
• Family Series: TECHTOP INDUSTRIES Motors, GR3 Series
• Type: Premium Efficiency
• Kilowatts: 14.92 kW
• Number of Poles: 4
• Frequency: 60 Hz
• NEMA Frame: 256T
• AC Voltage: 230 VAC, 460 VAC
• Nominal Voltage: 240 VAC, 480 VAC
• Composition: Cast Iron
• Bearing Type: Ball
• Net Weight: 0 lbs
• Gross Weight: 0 lbs
• Brand Name: TECHTOP
• Part#: TEC GR3-CI-TF-256T-4-BR-D-20
• MPN: GR3-CI-TF-256T-4-BR-D-20
• Product Group: Three Phase Cast Iron
• Pole: 4
