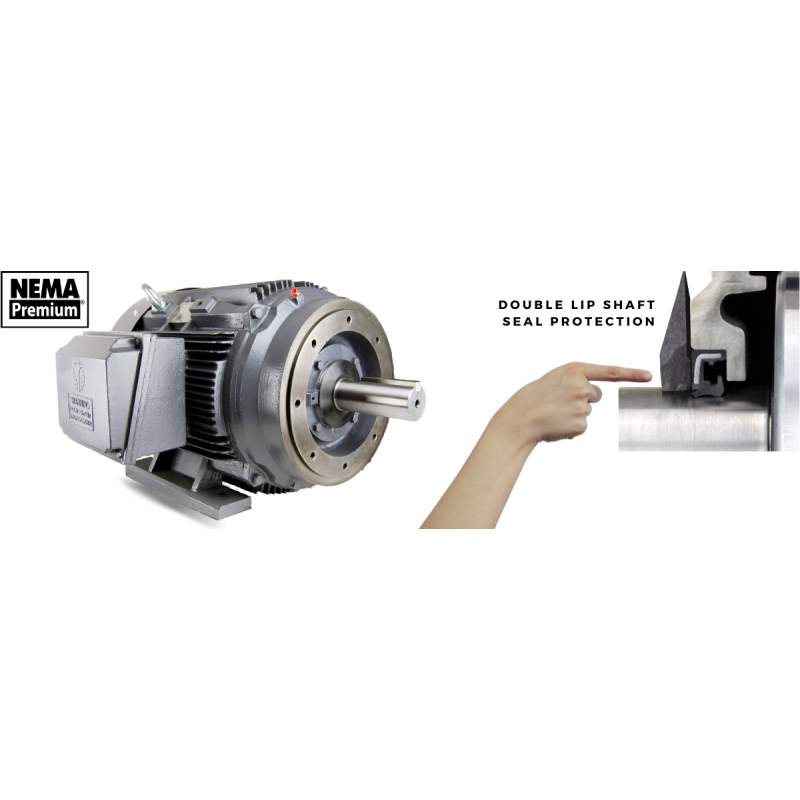

Techtop Industries GR3-CI-TF-256T-2-BR-D-20 Motor 20 HP 256T

Product Description

The TECHTOP INDUSTRIES GR3-CI-TF-256T-2-BR-D-20 is a premium efficient cast iron series motor constructed with standard NEMA frames, allowing for uncomplicated substitutions of traditional Rolled Steel and Cast Iron NEMA frames. The modular design is highly versatile, making it a suitable choice for diverse applications in both Commercial and Industrial Markets.

• NEMA Premium Energy Efficiency Design
• MG1 Part 31 Compliant for VFD use (15:1 CT)
• 2-Part Epoxy Coating - IP 55 Ingress Protection

Product Highlights

This motor features a heavy-duty cast iron fan cover and is suitable for various industrial applications. It is EISA Regulation Compliant.

Product Information

Standard Information

• Brand: TECHTOP INDUSTRIES
• Manufacturer Part Number: GR3-CI-TF-256T-2-BR-D-20
• Country of Origin: China

Technical Specifications

• SKU: GR3-CI-TF-256T-2-BR-D-20
• Enclosure: TEFC
• Motor RPM: 3600
• Electrical: 230/460 Volts
• Frame Size: 256T
• Horsepower: 20 HP
• Brand/Manufacturer: TechTop
• Mounting Type: Rigid
• Phase: Three Phase
• Country of Origin: China
• Full Load Amps: 58.8/29.4
• Inverter/Vector Duty Rating: Inverter Duty
• Rated Load (HP): 20
• AC Frequency Rating: 60 Hz
• AC Motor Type: Induction/Asynchronous
• Shaft Type: Keyed
• Shaft Diameter: 1.625 in
• Insulation Class: F (Max 311 °F)
• Base-Mounted, Foot-Mounted: Base-Mounted, Foot-Mounted
• Reversible/Non-Reversible: Reversible
• Current Type: AC
• IP Rating: IP55
• Service Factor: 1.25
• Nominal Rated Input Voltage: 230 V, 460 V
• Model: GR3-CI-TF-256T-2-BR-D-20
• NEMA Frame Suffix: T
• AC Phase: Three Phase
• mounting: Rigid Base
• Volts: 230/460
