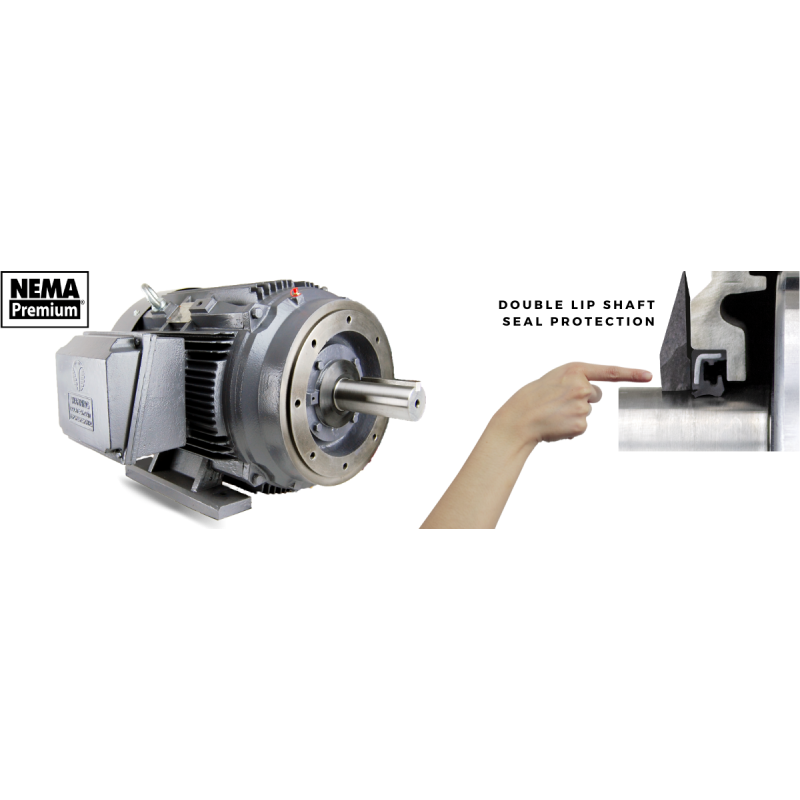

Techtop Industries GR3-CI-TF-254T-4-BR-D-15 NEMA Premium Cast Iron TEFC 1800 RPM 15 HP 254T

Product Description

TECHTOP's GR3-CI-TF-254T-4-BR-D-15 Premium Efficient Cast Iron Series is constructed with standard NEMA frames, allowing for uncomplicated and smooth substitutions of traditional Rolled Steel and Cast Iron NEMA frames. The modular design by TECHTOP is highly versatile, making it a suitable choice for a diverse range of applications in both Commercial and Industrial Markets.

• NEMA Premium Energy Efficiency Design
• MG1 Part 31 Compliant for VFD use (15:1 CT)
• 2-Part Epoxy Coating - IP 55 Ingress Protection

Product Highlights

This motor features a 1045 steel shaft, multi-mount frame design, and auto-purge brass condensation drains. It is EISA Regulation Compliant and has a 40°C ambient temperature rating.

Product Information

Standard Information

• Brand: TECHTOP INDUSTRIES
• Manufacturer Part Number: GR3-CI-TF-254T-4-BR-D-15
• Country of Origin: China

Technical Specifications

• SKU: GR3-CI-TF-254T-4-BR-D-15
• Weight (in lbs): 278.932500
• Warranty: 3 Years
• Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
• Motor RPM: 1800
• Electrical: 230/460 Volts
• Frame Size: 254T
• Horsepower: 15 HP
• Brand: Techtop
• Mounting Type: Base-Mounted, Foot-Mounted
• Phase: Three Phase
• HP: 15
• mounting: Rigid Base
• Volts: 230/460
• Manufacturer: Techtop
• Item Condition: Factory New
• Condition: New
• Country of Origin: China
• Inverter/Vector Duty Rating: Inverter Duty
• Rated Load (HP): 15
• AC Frequency Rating: 60 Hz
• Shaft Type: Keyed
• AC Motor Type: Induction/Asynchronous
• Shaft Diameter: 1 5/8 in
• Insulation Class: F (Max 311°F)
• Reversible/Non-Reversible: Reversible
• Current Type: AC
• IP Rating: IP55
• Service Factor: 1.25
• Nominal Rated Input Voltage: 230 V, 460 V
• Model: GR3-CI-TF-254T-4-BR-D-15
• NEMA Frame Suffix: T
