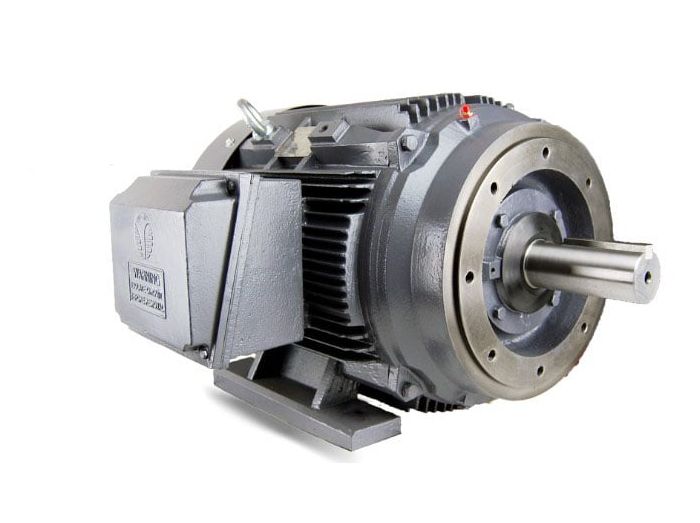

Techtop Industries GR3-CI-TF-215T-4-B-D-10 general purpose motor 10 hp 215T frame 3 phase 1800 rpm 230/460V TEFC

Product Description

The Techtop Industries GR3-CI-TF-215T-4-B-D-10 is a factory new, general purpose motor designed for industrial applications. This 10 HP, 1800 RPM, 3-phase motor operates on 230/460V at 60Hz. Featuring a TEFC enclosure and a 215T cast iron frame, it ensures durability and efficient performance. With a NEMA Premium efficiency of 91.7, this motor is suitable for continuous duty.

• Factory New
• Cast Iron Construction
• NEMA PREMIUM Efficiency

Product Highlights

Durable cast iron construction with NEMA Premium efficiency for continuous industrial operation.

Product Information

Standard Information

• Brand: TECHTOP INDUSTRIES
• Manufacturer Part Number: GR3-CI-TF-215T-4-B-D-10

Technical Specifications

• Horsepower: 10 HP
• RPM: 1800 RPM
• Enclosure: TEFC (Totally Enclosed Fan Cooled)
• Frame: 215T
• Classification: General Purpose
• Mounting: Rigid Base
• Voltage: 230/460V @ 60Hz
• Phase: 3
• Manufacturer: Techtop
• Condition: Factory New
• Full Load Amps: 24/12 A
• Service Factor: 1.25
• Efficiency: 91.7 (NEMA PREMIUM)
• Bearing Type: Ball (Shielded)
• Shaft Dimensions (Dia x Len): 1-3/8" x 3-3/8"
• Construction Material: Cast Iron
• Frequency: 60 Hz
• Motor Group: 3PH, CI, Premium TEFC
• Multiplier Code: G1
• Kilowatts: 7.46 kW
• Number of Poles: 4
• Product Series: GR3
• Family Series: TECHTOP INDUSTRIES Motors, GR3 Series
