Techtop Industries GR3-CI-TF-213T-4-B-D-7.5 Three-Phase Cast Iron Motor 7.5 hp 213T Frame

Product Description

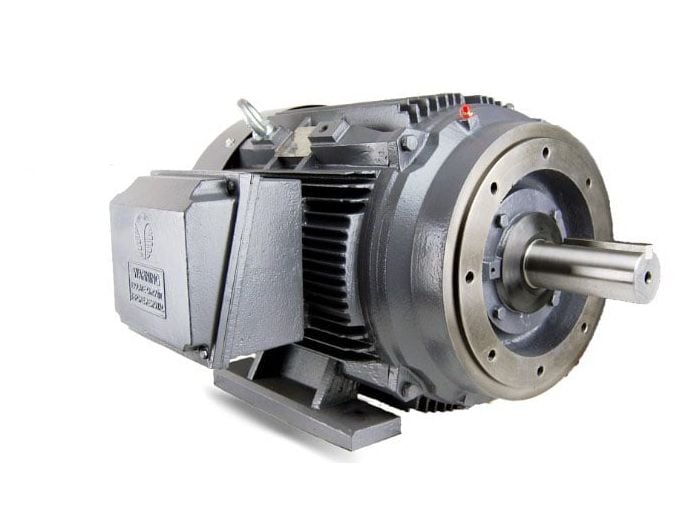

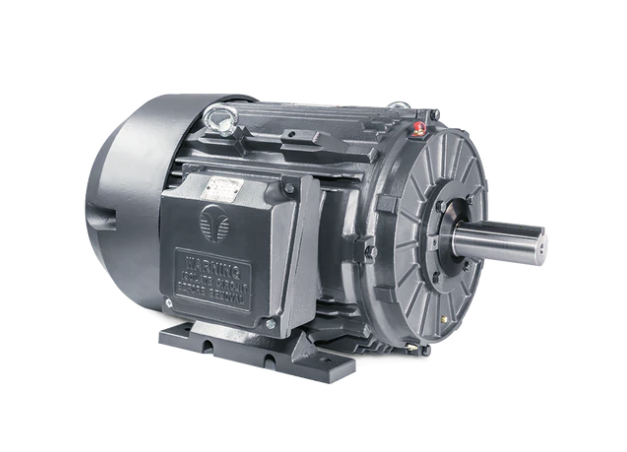

The TECHTOP INDUSTRIES GR3-CI-TF-213T-4-B-D-7.5 is a NEMA Premium efficient three-phase TEFC general purpose motor. This motor delivers 7.5 HP at 1800 RPM from a 4-pole design on 60 Hz power. The cast iron housing and NEMA 213T frame provide durability for industrial applications. Operates on 230/460V and features ball bearings.

• IP55 Protection
• 40°C Ambient Rating
• 1045 Steel Shaft (through 326T)/4140 (326T & up)

Product Highlights

NEMA Premium efficient three-phase TEFC general purpose motor with cast iron housing and NEMA 213T frame.

Product Information

Standard Information

• Brand: TECHTOP INDUSTRIES
• Manufacturer Part Number: GR3-CI-TF-213T-4-B-D-7.5
• Country of Origin: China

Technical Specifications

• Amperage Rating: 18.23/9.12 A
• Bearing Type: Ball
• Enclosure Type: TEFC
• Frame: 213T
• Frequency Rating: 60 Hz
• Horsepower: 7.5 hp
• Insulation Class: F
• Material: Cast Iron
• Mounting Type: Rigid
• Phase: Three
• Service Factor: 1.25
• Shaft Size: 1-3/8 x 3-3/8 in
• Speed: 1800 rpm
• Voltage Rating: 230/460 V
• Brand/Manufacturer: TechTop
• Motor RPM: 1800
• Electrical: 208-230/460 Volts
• Motor Group: GR
• RPM: 4 POLE (1800)
• Voltage: D=230/460V
• Multiplier Code: G1
• Rated Load (HP): 7 1/2
• AC Motor Type: Induction/Asynchronous
• Shaft Diameter: 1 3/8 in
• IP Rating: IP55
• Nominal Rated Input Voltage: 230 V, 460 V
• AC Phase: Three Phase
• Country of Origin: China
• Manufacturer: Techtop Industries, Inc
• Brand Name: TECHTOP
• Part#: TEC GR3-CI-TF-213T-4-B-D-7.5
• MPN: GR3-CI-TF-213T-4-B-D-7.5
• Product Group: Three Phase Cast Iron
• Pole: 4
• Kilowatts: 5.6 kW
• Number of Poles: 4
• AC Voltage: 230 VAC, 460 VAC
• Nominal Voltage: 240 VAC, 480 VAC
• Enclosure: Totally Enclosed Fan Cooled
• Composition: Cast Iron
• Inverter/Vector Duty Rating: Inverter Duty
• AC Frequency Rating: 60 Hz
• Base RPM: 1800
• Shaft Type: Keyed
• Model: GR3-CI-TF-213T-4-B-D-7.5
• NEMA Frame Suffix: T
• Reversible/Non-Reversible: Reversible
