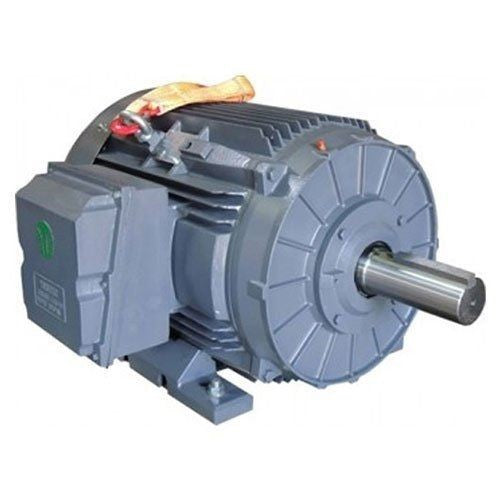

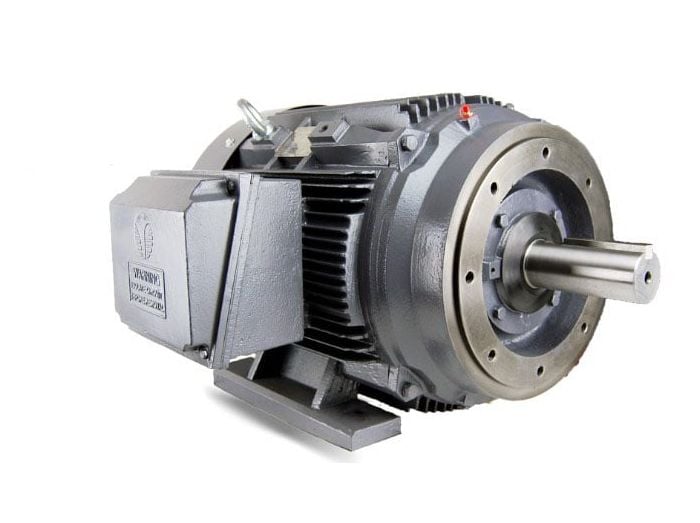

Techtop Industries GR3-CI-TF-184T-4-B-D-5 AC Motor 5 hp 184T Frame

Brand: TECHTOP INDUSTRIES
SKU: GR3-CI-TF-184T-4-B-D-5
Availability: Out Of Stock
$808.82
$808.82
LTL Delivery

This product weighs 111 lb each and will be shipped via LTL carrier. A lift gate option will be added free of charge for your convenience.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Techtop GR3-CI-TF-184T-4-B-D-5 AC Motor features a class H stator and a totally enclosed fan cooled enclosure. This 5 hp motor operates at 230/480 VAC and 60 Hz, with a 184T frame and 1800 rpm speed. It is designed for rigid mounting and is suitable for general purpose use.

  • Features a 1045 steel shaft
  • Includes multi mount removable feet
  • Equipped with corrosion resistant hardware

Product Highlights

This AC motor is ideal for industrial applications requiring a reliable and efficient power source.

Product Information

Standard Information

  • Brand: TECHTOP INDUSTRIES
  • Manufacturer Part Number: GR3-CI-TF-184T-4-B-D-5
  • Country of Origin: China
Technical Specifications
Frequency Rating
60 Hz
Mounting Style
Rigid
Phase
3
Bearing Type
Ball
Horsepower
5 hp
Amperage Rating
12.6/6.3/15.8/7.9 A
Standard & Approvals
EISA Compliant, Class 1, Division 2, Groups A, B, C and D
Voltage Rating
230/480 VAC
Torque Rating
20.04 lb-ft
Temperature Rating
40 deg C
Service Factor
1.25
Material
Cast Iron
Insulation Class
Class F
Frame
184T
Speed
1800 RPM
Enclosure Type
Totally Enclosed Fan Cooled
RPM
1,800 RPM
mounting
Rigid Base
Volts
230/460
Product Series
GR3
Type
Premium Efficiency
Kilowatts
3.73 kW
Number of Poles
4
NEMA Frame
184T
AC Voltage
230 VAC, 460 VAC
Nominal Voltage
240 VAC, 480 VAC
Enclosure
Totally Enclosed Fan Cooled
Composition
Cast Iron
Net Weight
110.25 lbs
Brand
Nema
Model
GR3CITF184T4BD5
MPN
GR3-CI-TF-184T-4-B-D-5
Full Load Amps
11.76/5.88
Inverter/Vector Duty Rating
Inverter Duty
Rated Load (HP)
5
AC Frequency Rating
60 Hz
Base RPM
1800
Shaft Type
Keyed
AC Motor Type
Induction/Asynchronous
Shaft Diameter
1.125 in
Reversible/Non-Reversible
Reversible
Current Type
AC
IP Rating
IP55
Nominal Rated Input Voltage
230 V, 460 V
NEMA Frame Suffix
T
AC Phase
Three Phase
