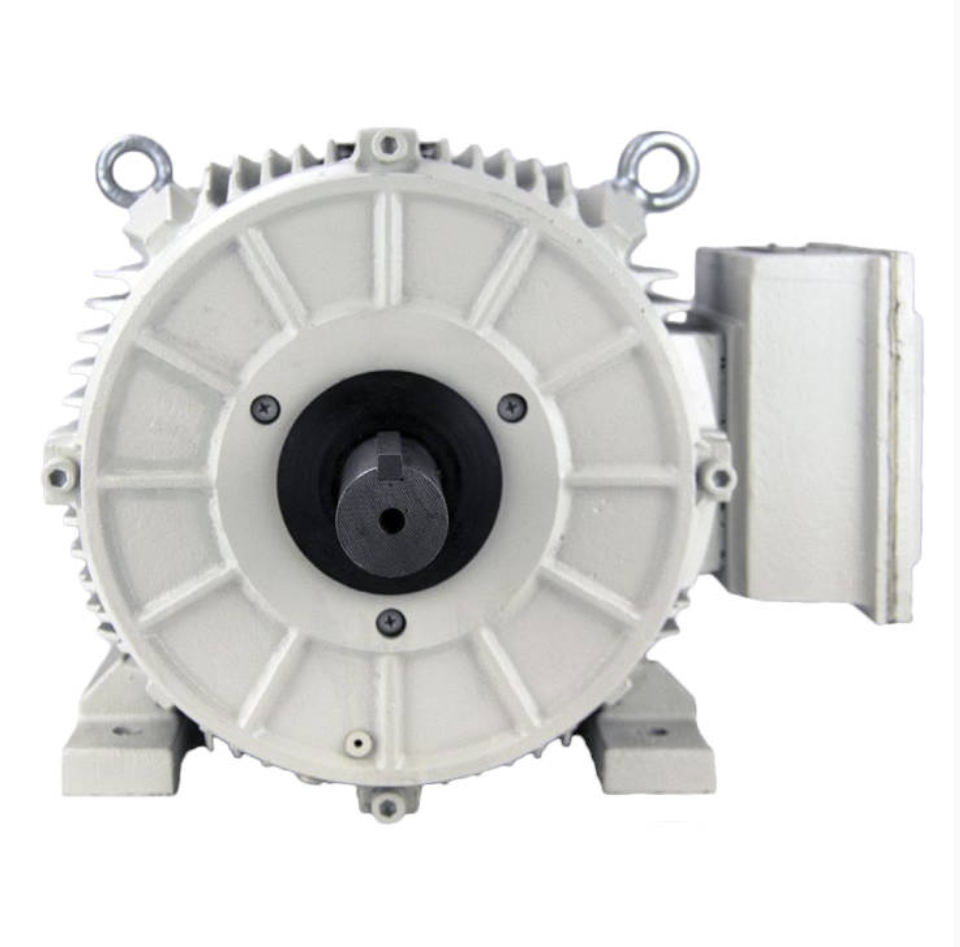

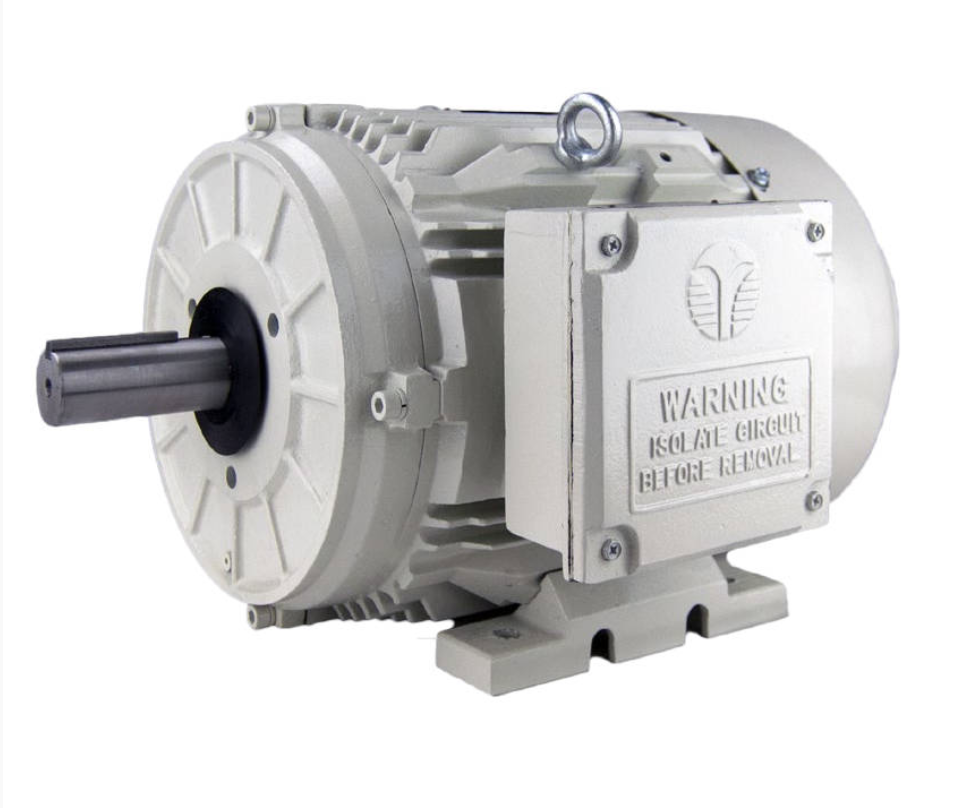

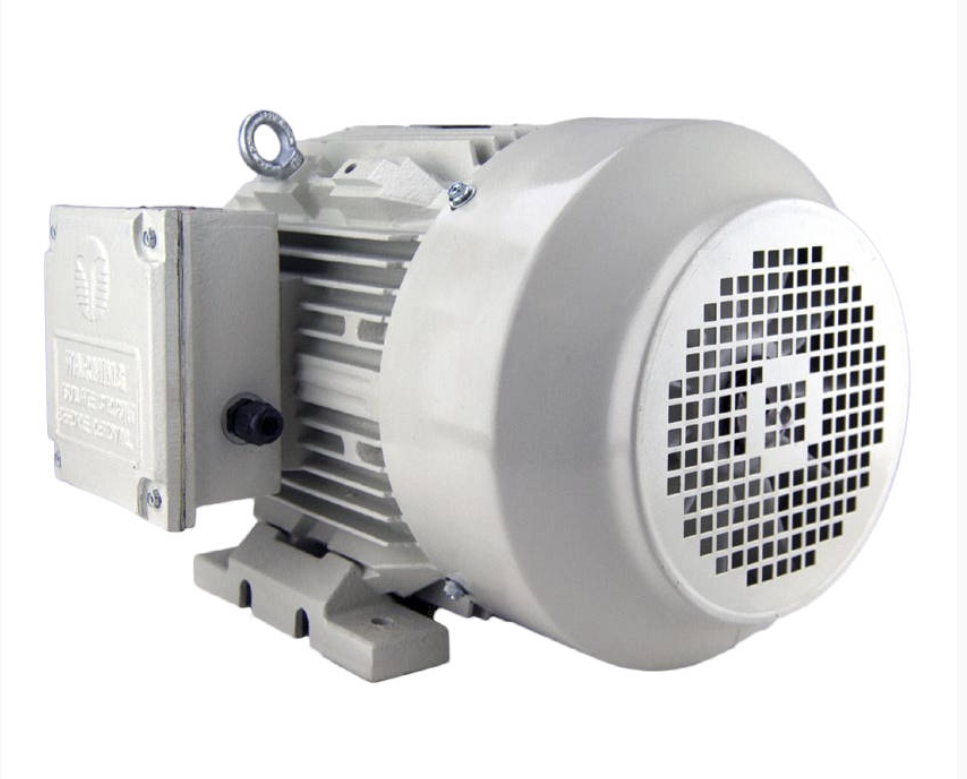

Techtop Industries BK3-CI-TF-365T-6-BR-G-50 Oil Pump Electric Motor 50 hp REPLACEMENT MPN

Product Description

The Techtop Industries BK3-CI-TF-365T-6-BR-G-50 is an oil pump electric motor with a TEFC enclosure and 50 hp. Operating at 230/460/796 V and 60 Hz, this three-phase motor features a 365T frame and a speed of 1200 rpm. It is designed for rigid base mounting and constructed with a cast iron material.

• 5% to 8% Slip NEMA Design "D" Operation
• Double Lip Oil Seal on DE & ODE
• Cast Iron Terminal Box with Gasket

Product Highlights

Designed for oil pump applications, this motor ensures efficient and reliable performance with its robust construction and electrical characteristics.

Product Information

Standard Information

• Brand: TECHTOP INDUSTRIES
• Manufacturer Part Number: BK3-CI-TF-365T-6-BR-G-50

Technical Specifications

• Amperage Rating: 111/55.5/32.1 A
• Bearing Type: Ball
• Enclosure Type: TEFC
• Frame: 365T
• Frequency Rating: 60 Hz
• Horsepower: 50 hp
• Insulation Class: F
• Material: Cast Iron
• Mounting Type: Rigid Base
• Phase: Three
• Service Factor: 1.15
• Shaft Size: 2-3/8 x 5-7/8 in
• Speed: 1200 rpm
• Voltage Rating: 230/460/796 V
