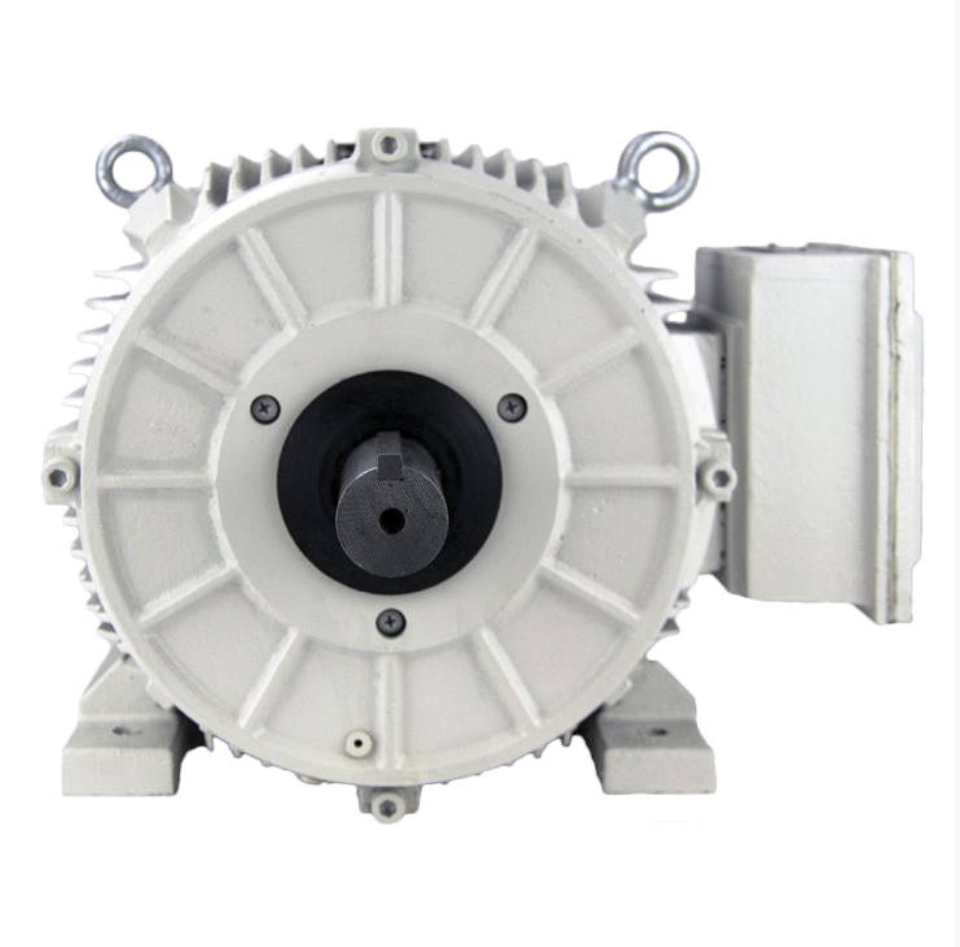

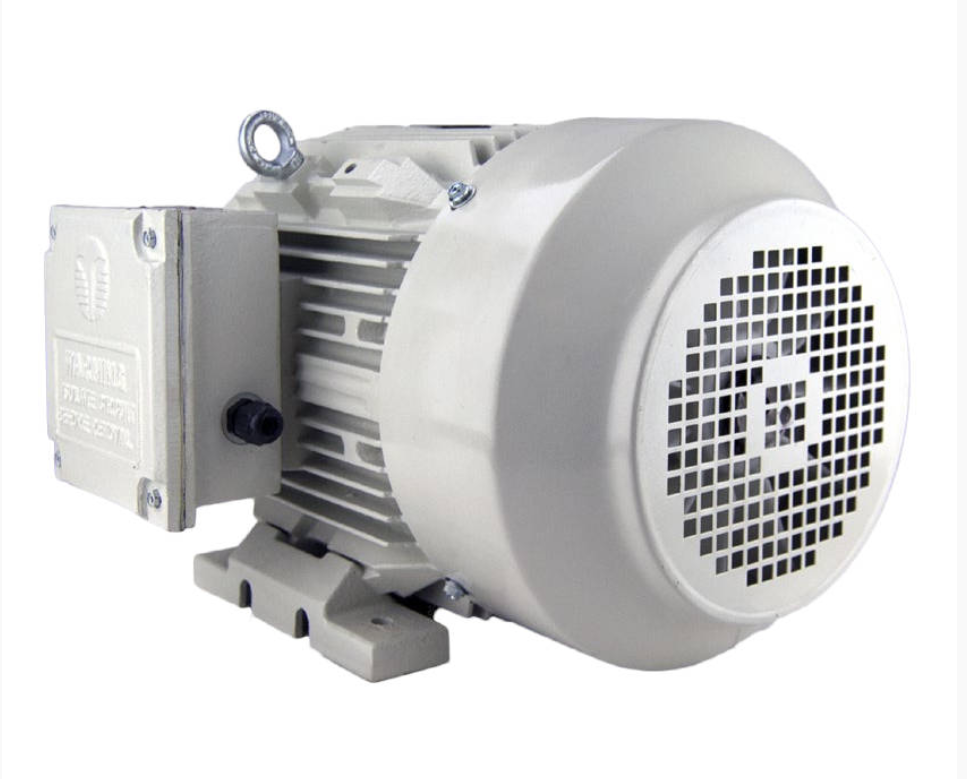

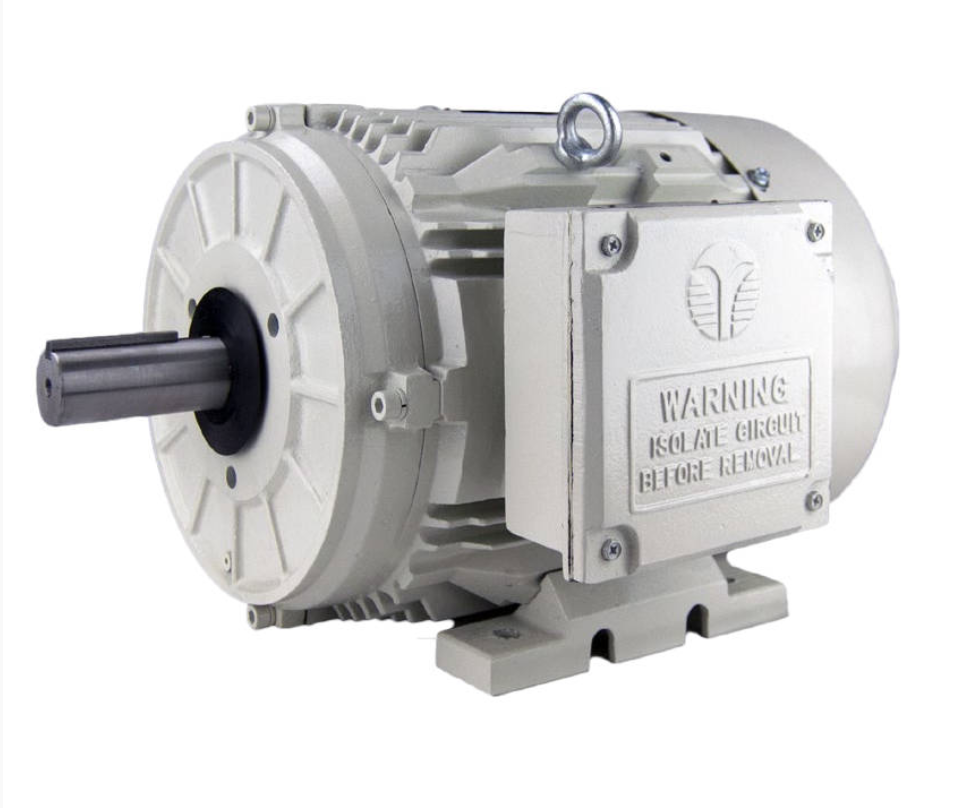

Techtop Industries BK3-CI-TF-364T-6-BR-G-40 Oil Pump Electric Motor 40 hp

Product Description

The TECHTOP INDUSTRIES BK3-CI-TF-364T-6-BR-G-40 is an oil pump electric motor with a TEFC enclosure. This three-phase motor operates at 230/460/796 V and 60 Hz, delivering 40 hp at 1200 rpm. It features a rigid base mounting and a 364T frame. Ideal for industrial applications requiring a robust and reliable motor.

• Features 5% to 8% Slip NEMA Design "D" Operation
• Equipped with double lip oil seal on DE & ODE
• Includes a cast iron terminal box with gasket

Product Highlights

The BK3-CI-TF-364T-6-BR-G-40 electric motor is designed for oil pump applications, offering a durable cast iron construction and efficient performance.

Product Information

Standard Information

• Brand: TECHTOP INDUSTRIES
• Manufacturer Part Number: BK3-CI-TF-364T-6-BR-G-40

Technical Specifications

• Amperage Rating: 92/46/30.4 A
• Bearing Type: Ball
• Enclosure Type: TEFC
• Frame: 364T
• Frequency Rating: 60 Hz
• Horsepower: 40 hp
• Insulation Class: F
• Material: Cast Iron
• Mounting Type: Rigid Base
• Phase: Three
• Service Factor: 1.15
• Shaft Size: 2-3/8 x 5-7/8 in
• Speed: 1200 rpm
• Voltage Rating: 230/460/796 V
• IP Rating: IP55
• NEMA Design: D
• Number of Leads: 12
