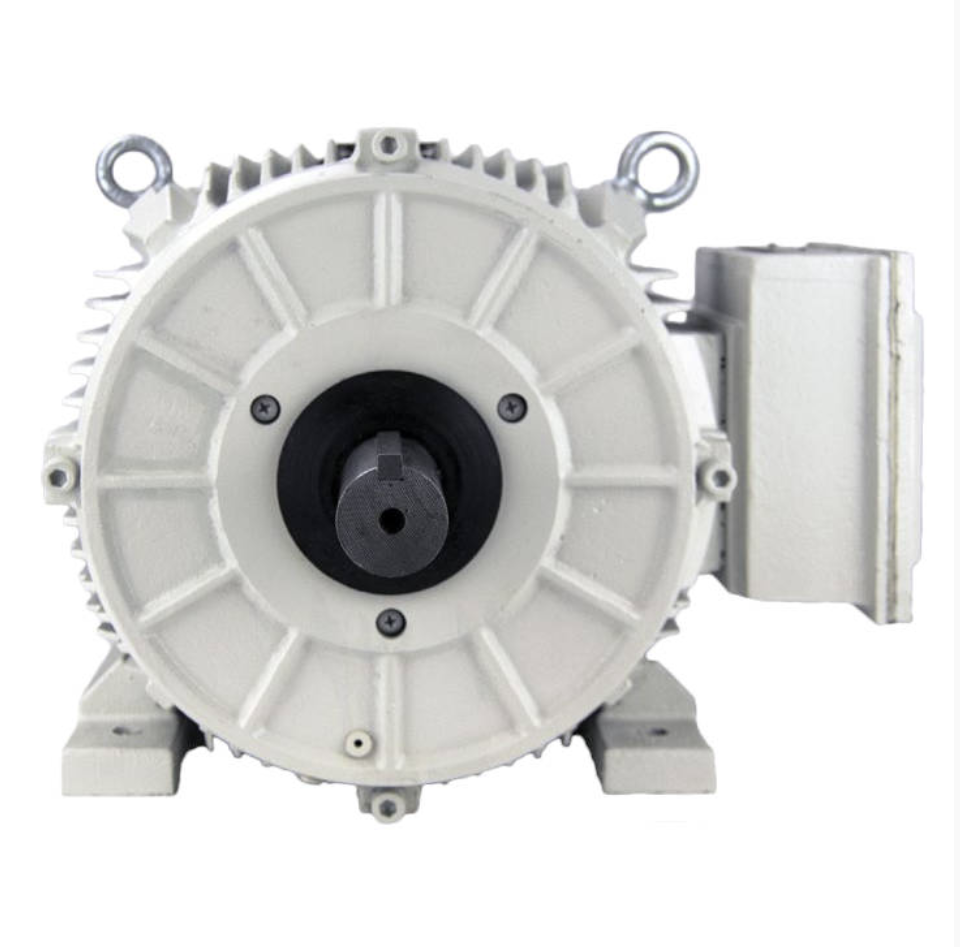

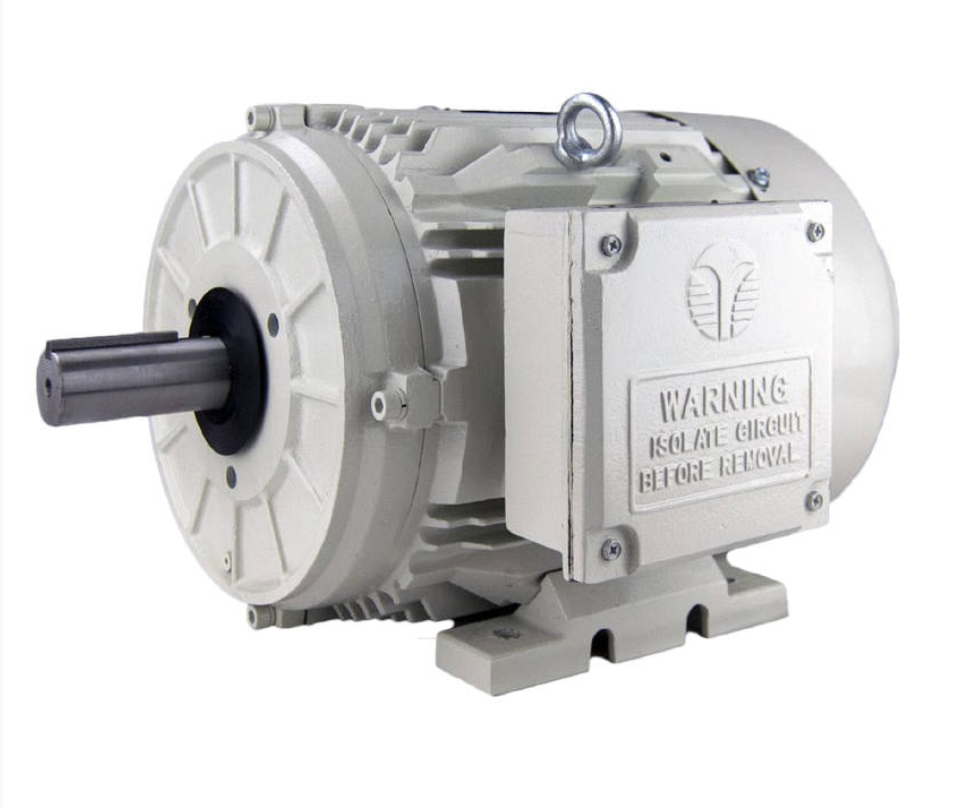

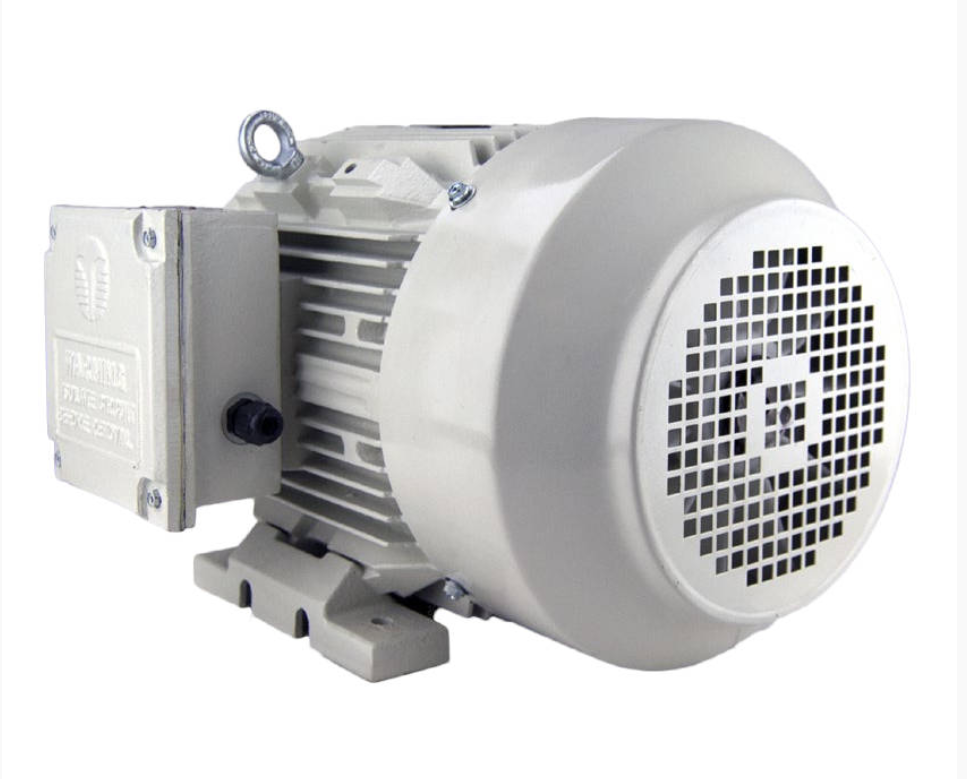

Techtop Industries BK3-CI-TF-286T-6-BR-G-20 Oil Pump Electric Motor 20 hp

Product Description

The TECHTOP INDUSTRIES BK3-CI-TF-286T-6-BR-G-20 is an oil pump electric motor with a TEFC enclosure, designed for rigid base mounting. This three-phase motor operates at 230/460/796 V and 60 Hz, delivering 20 hp at 1200 rpm within a 286T frame. It is suitable for various industrial applications requiring reliable motor performance.

• Features a 5% to 8% Slip NEMA Design "D" Operation
• Includes a cast iron terminal box with gasket
• Offers mounting position convertible F1/F2/F3

Product Highlights

Durable cast iron construction, convertible mounting, and robust design for demanding industrial environments.

Product Information

Standard Information

• Brand: TECHTOP INDUSTRIES
• Manufacturer Part Number: BK3-CI-TF-286T-6-BR-G-20

Technical Specifications

• Amperage Rating: 49.6/24.8/14.3 A
• Bearing Type: Ball
• Enclosure Type: TEFC
• Frame: 286T
• Frequency Rating: 60 Hz
• Horsepower: 20 hp
• Insulation Class: F
• Material: Cast Iron
• Mounting Type: Rigid Base
• Phase: Three
• Service Factor: 1.15
• Shaft Size: 1-7/8 x 4-5/8 in
• Speed: 1200 rpm
• Voltage Rating: 230/460/796 V
