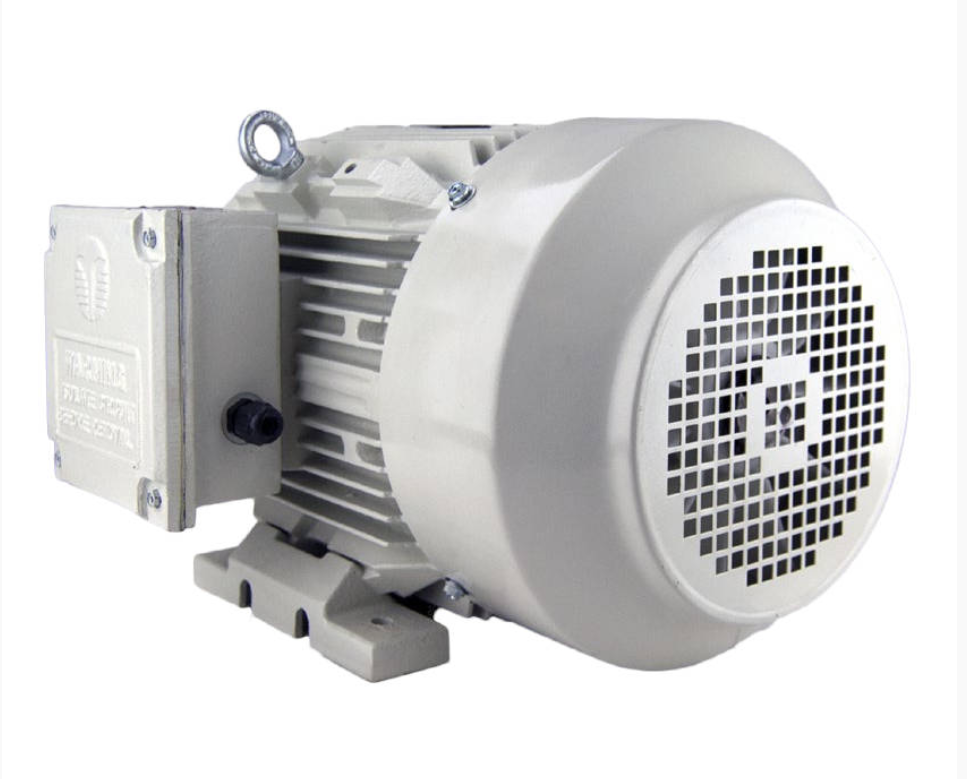

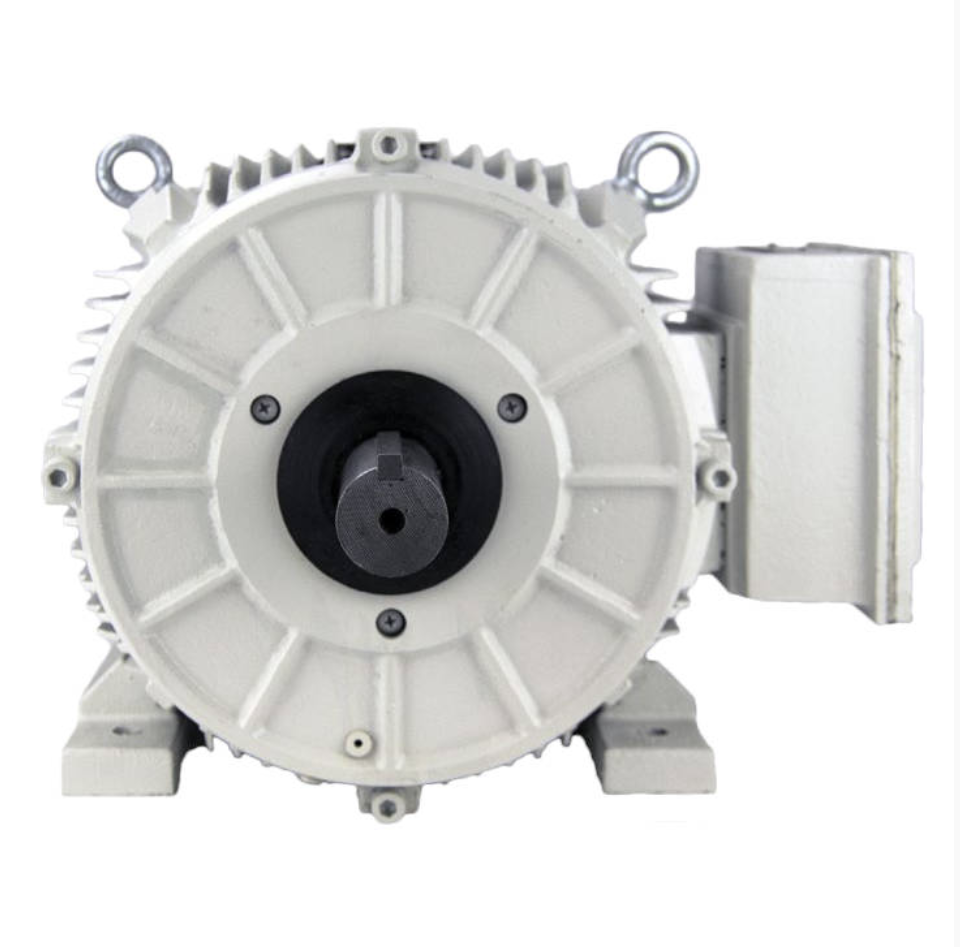

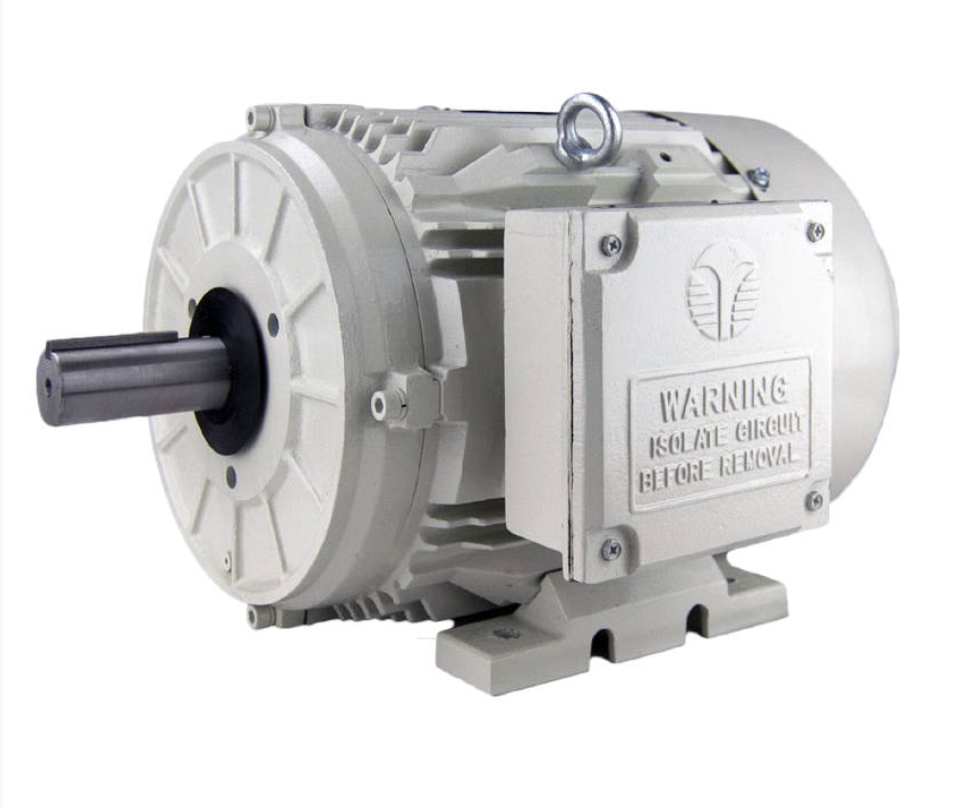

Techtop Industries BK3-CI-TF-284T-6-BR-G-15 Oil Pump Electric Motor 15 hp

Product Description

The TECHTOP INDUSTRIES BK3-CI-TF-284T-6-BR-G-15 is an electric motor designed for oil pump applications. This 15 hp motor features a TEFC enclosure and operates at 230/460/796 V, 60 Hz, three phase power, and 1200 rpm. It has a 284T frame and a rigid base for mounting. It is suitable for various industrial applications requiring a robust and reliable motor.

• 5% to 8% Slip NEMA Design "D" Operation
• Double Lip Oil Seal on DE & ODE
• Cast Iron Terminal Box with Gasket

Product Highlights

Durable cast iron construction, NEMA Design "D" operation, and suitability for oil pump applications make this motor a reliable choice.

Product Information

Standard Information

• Brand: TECHTOP INDUSTRIES
• Manufacturer Part Number: BK3-CI-TF-284T-6-BR-G-15

Technical Specifications

• Amperage Rating: 38.2/19.1/11 A
• Bearing Type: Ball
• Enclosure Type: TEFC
• Frame: 284T
• Frequency Rating: 60 Hz
• Horsepower: 15 hp
• Insulation Class: F
• Material: Cast Iron
• Mounting Type: Rigid Base
• Phase: Three
• Service Factor: 1.15
• Shaft Size: 1-7/8 x 4-5/8 in
• Speed: 1200 rpm
• Voltage Rating: 230/460/796 V
• Model Number: BK3-CI-TF-284T-6-BR-G-15
• Full Load Amps: 38.2/19.1/11 Amps
• IP Rating: IP55
• Frame Material: Cast Iron
• Number of Leads: 12
• NEMA Design: D
• Application: Oil Pump
