Techtop Industries BK3-CI-TF-256T-6-BR-G-10 Oil Pump Electric Motor 10 hp

Product Description

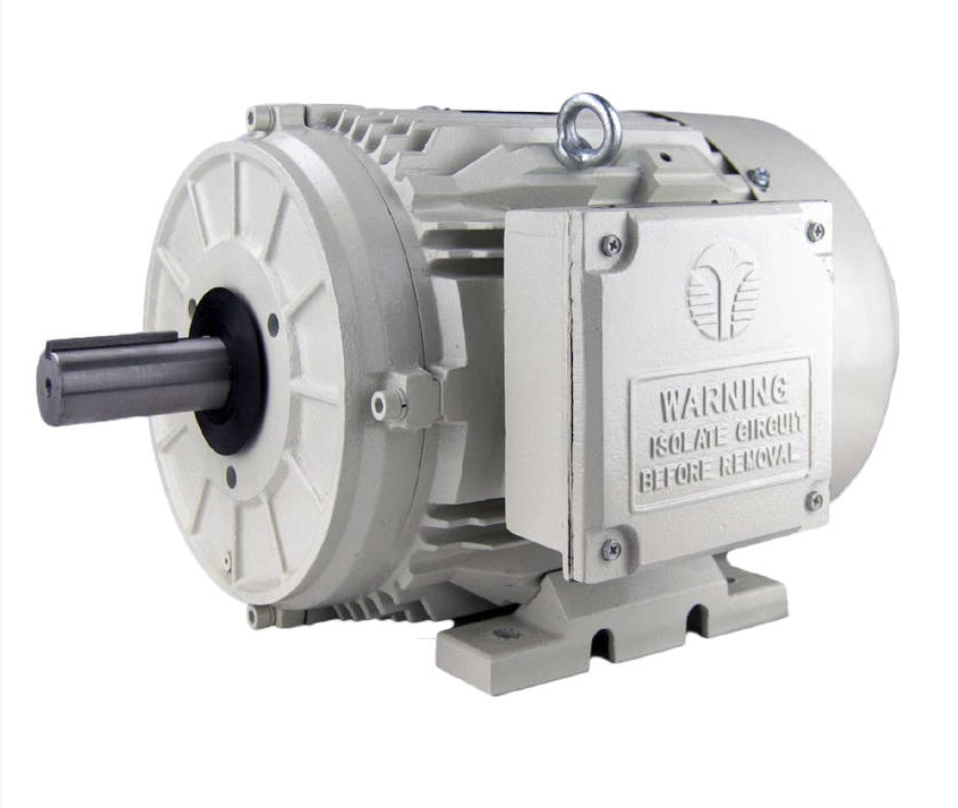

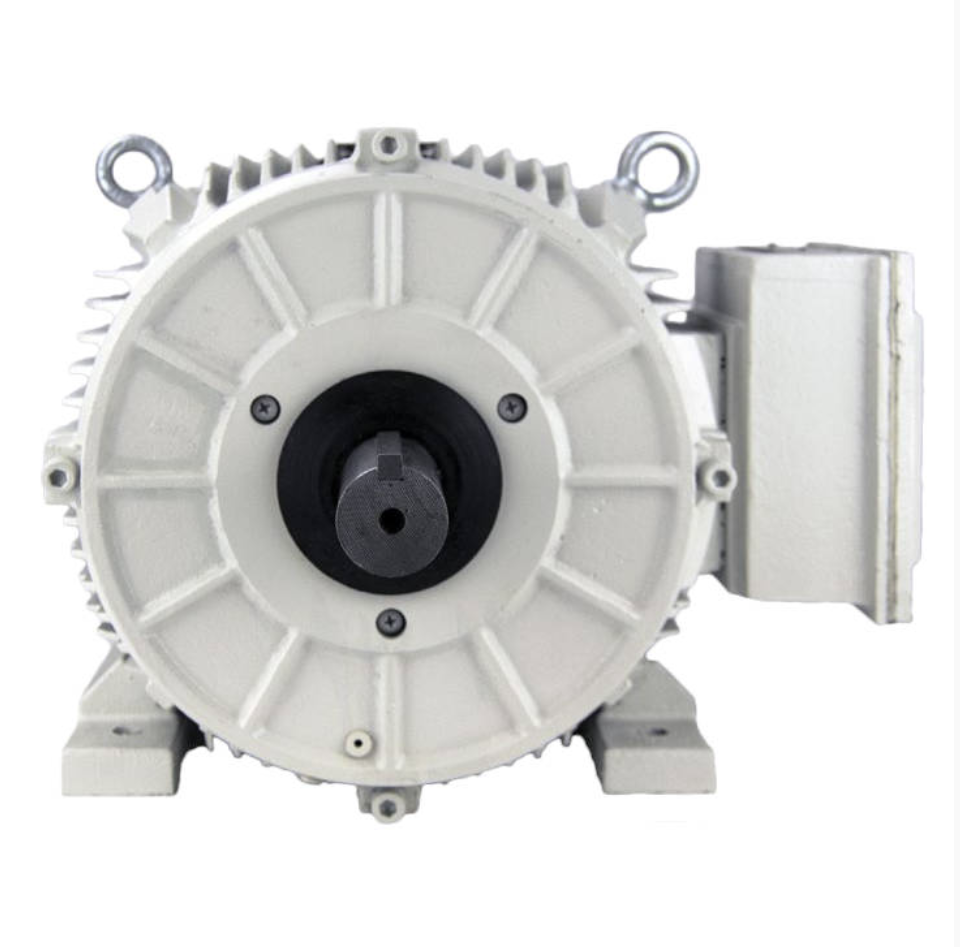

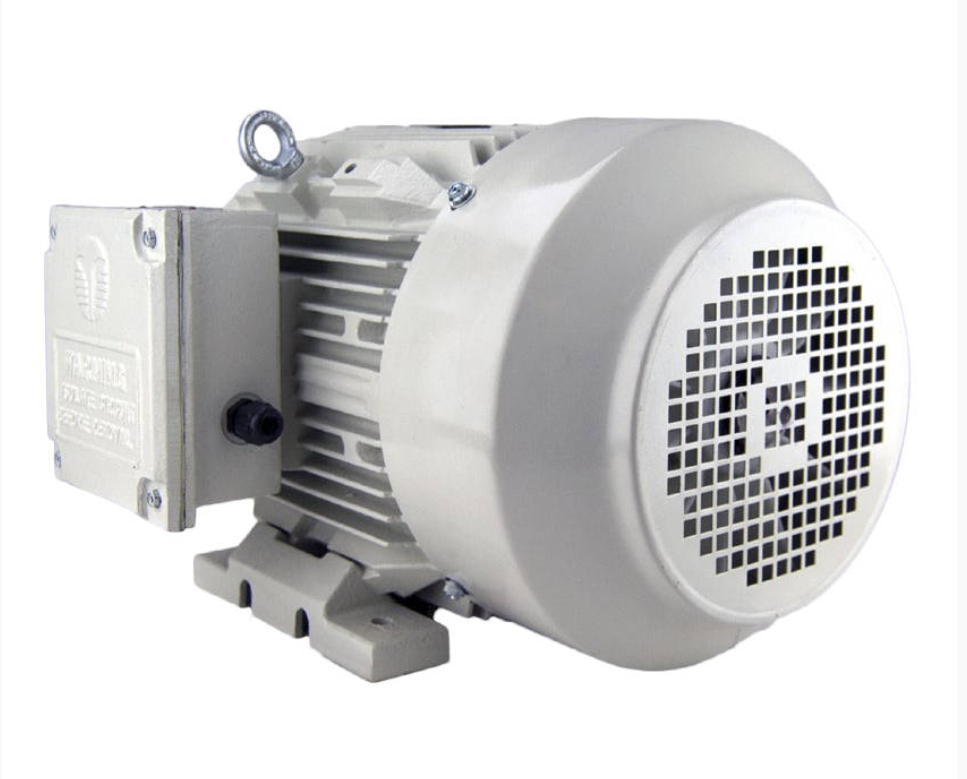

The TECHTOP INDUSTRIES BK3-CI-TF-256T-6-BR-G-10 oil pump electric motor features a TEFC enclosure and operates at 10 hp with a voltage rating of 230/460/796 V and 60 Hz frequency. This three-phase motor has a 256T frame and runs at 1200 rpm with rigid base mounting. It is suitable for various industrial applications requiring a robust and reliable motor.

• Features 5% to 8% Slip NEMA Design "D" Operation
• Equipped with double lip oil seal on DE & ODE
• Includes a cast iron terminal box with gasket

Product Highlights

Durable cast iron construction, versatile mounting options, and enhanced sealing for demanding environments.

Product Information

Standard Information

• Brand: TECHTOP INDUSTRIES
• Manufacturer Part Number: BK3-CI-TF-256T-6-BR-G-10

Technical Specifications

• Amperage Rating: 26/13/7.5 A
• Bearing Type: Ball
• Enclosure Type: TEFC
• Frame: 256T
• Frequency Rating: 60 Hz
• Horsepower: 10 hp
• Insulation Class: F
• Material: Cast Iron
• Mounting Type: Rigid Base
• Phase: Three
• Service Factor: 1.15
• Shaft Size: 1-5/8 x 4 in
• Speed: 1200 rpm
• Voltage Rating: 230/460/796 V
