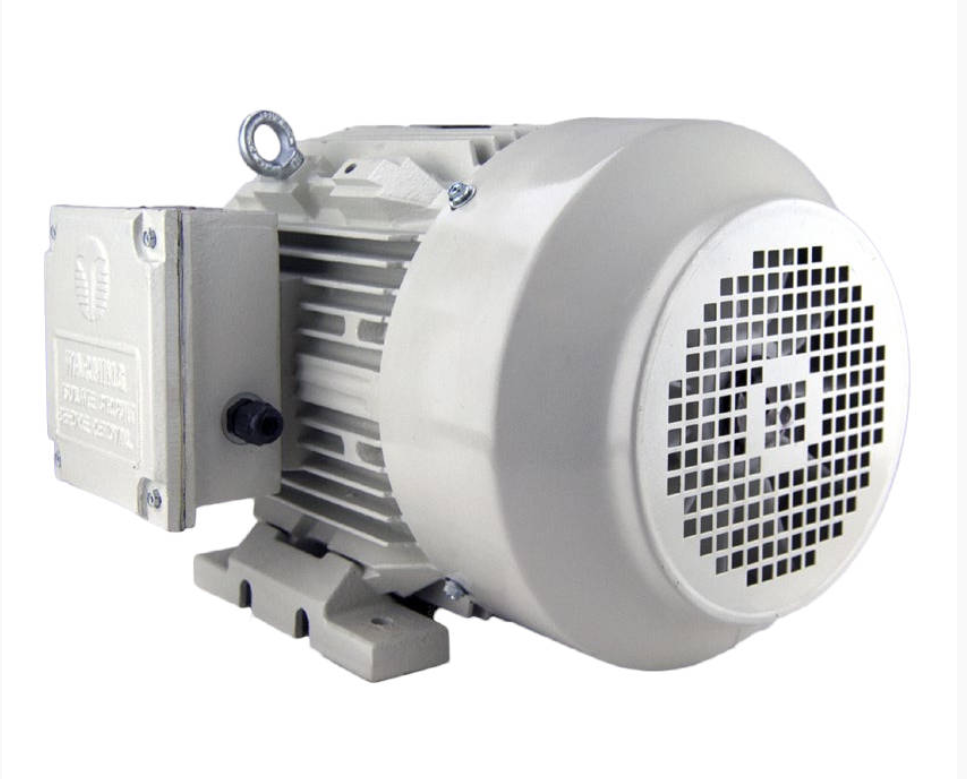

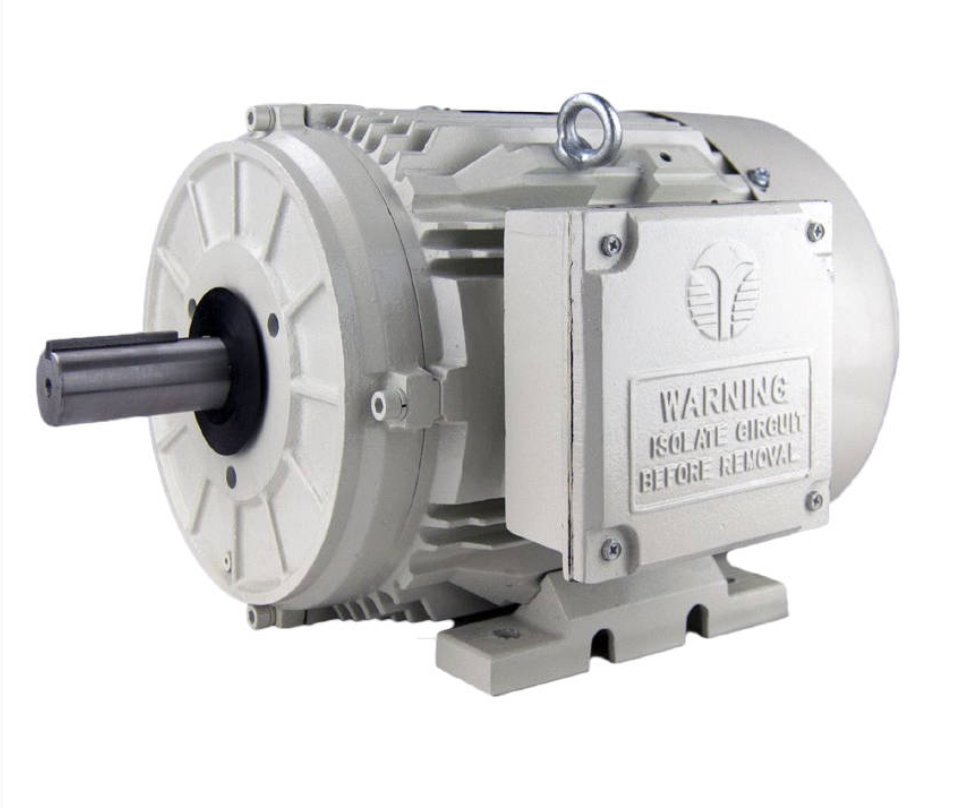

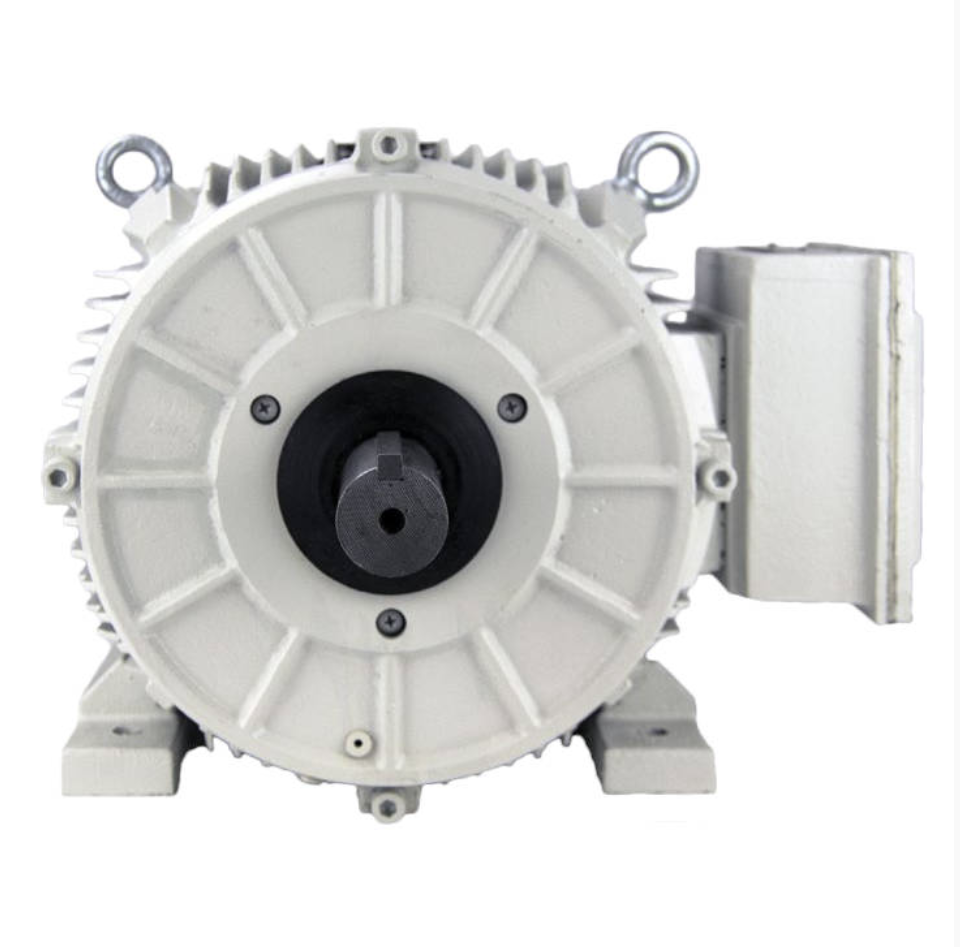

Techtop BK3-CI-TF-404T-6-RR-G-60 Oil Pump Electric Motor, 60 hp, 404T Frame, 230/460/796 V

Product Description

The Techtop BK3-CI-TF-404T-6-RR-G-60 is an electric motor designed for oil pumping applications. It features a totally enclosed fan-cooled (TEFC) design, making it suitable for various industrial uses. This motor has a power output of sixty horsepower and operates at a voltage of two hundred thirty, four hundred sixty, or seven hundred ninety-six volts, with a frequency of sixty hertz. Its rigid base mounting ensures stable installation.

• Five to eight percent slip NEMA design D operation.
• Built with a robust cast iron terminal box and gasket.
• Offers flexible mounting positions convertible among F1, F2, and F3.

Product Highlights

The electric motor provides high performance for demanding tasks while ensuring durability and reliability.

Product Information

Standard Information

• Brand: Techtop Industries
• Part Number: BK3-CI-TF-404T-6-RR-G-60

Technical Specifications

• Horsepower: 60 hp
• Frame Size: 404T
• Phase: Three
• Speed: 1200 rpm
• Voltage Rating: 230/460/796 V
• Frequency Rating: 60 Hz
• Insulation Class: F
• Amperage Rating: 135.2/67.6/39.07 A
• Bearing Type: Ball
• Enclosure Type: TEFC
• Mounting Type: Rigid Base
• Service Factor: 1.15
• Shaft Size: 2-7/8 x 7-1/4 in
• Material: Cast Iron
