Techtop BK3-CI-TF-364T-6-BR-G-40 Oil Pump Electric Motor, TEFC Enclosure, 40 hp, 230/460/796 V, 60 Hz, Three Phase, 364T Frame, 1200 rpm Speed

Product Description

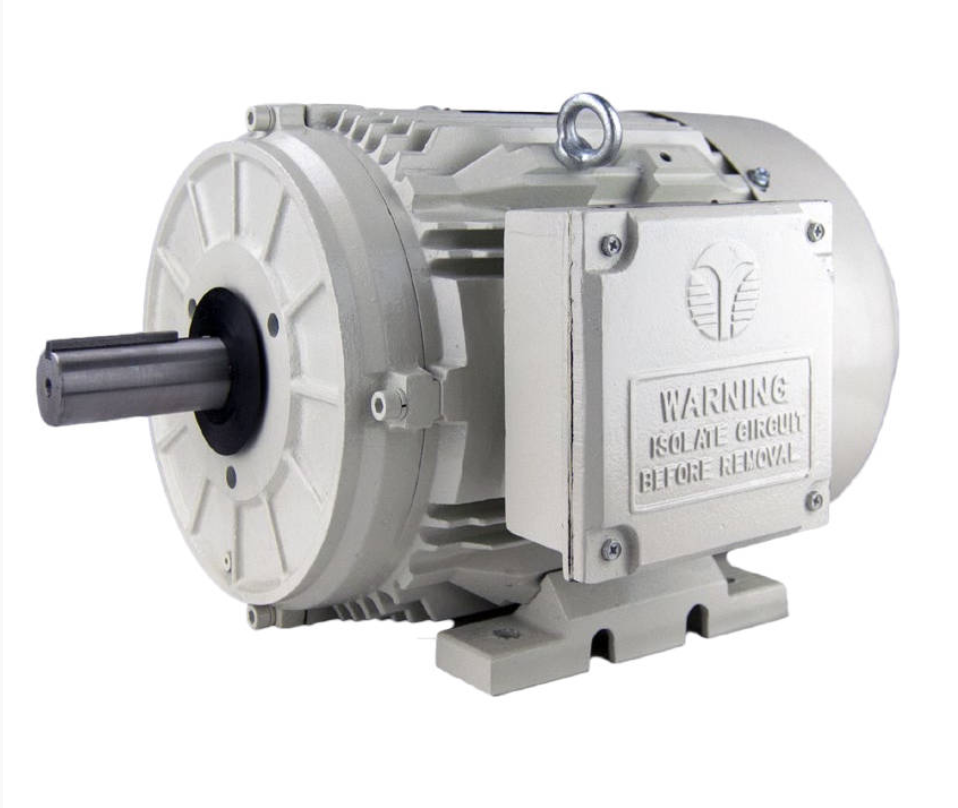

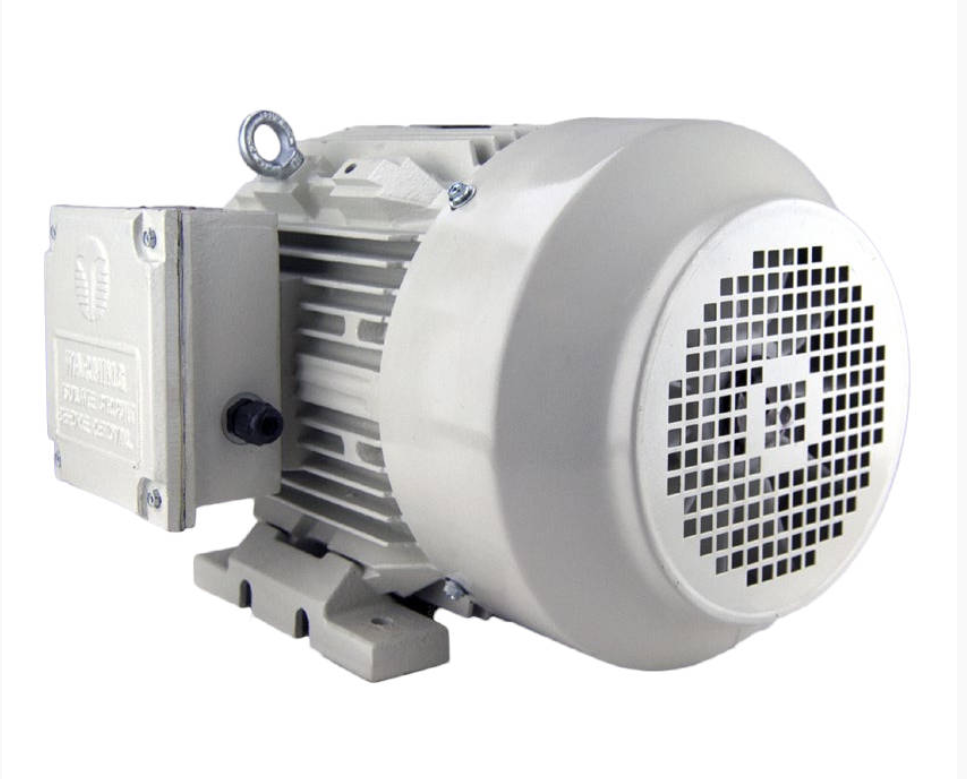

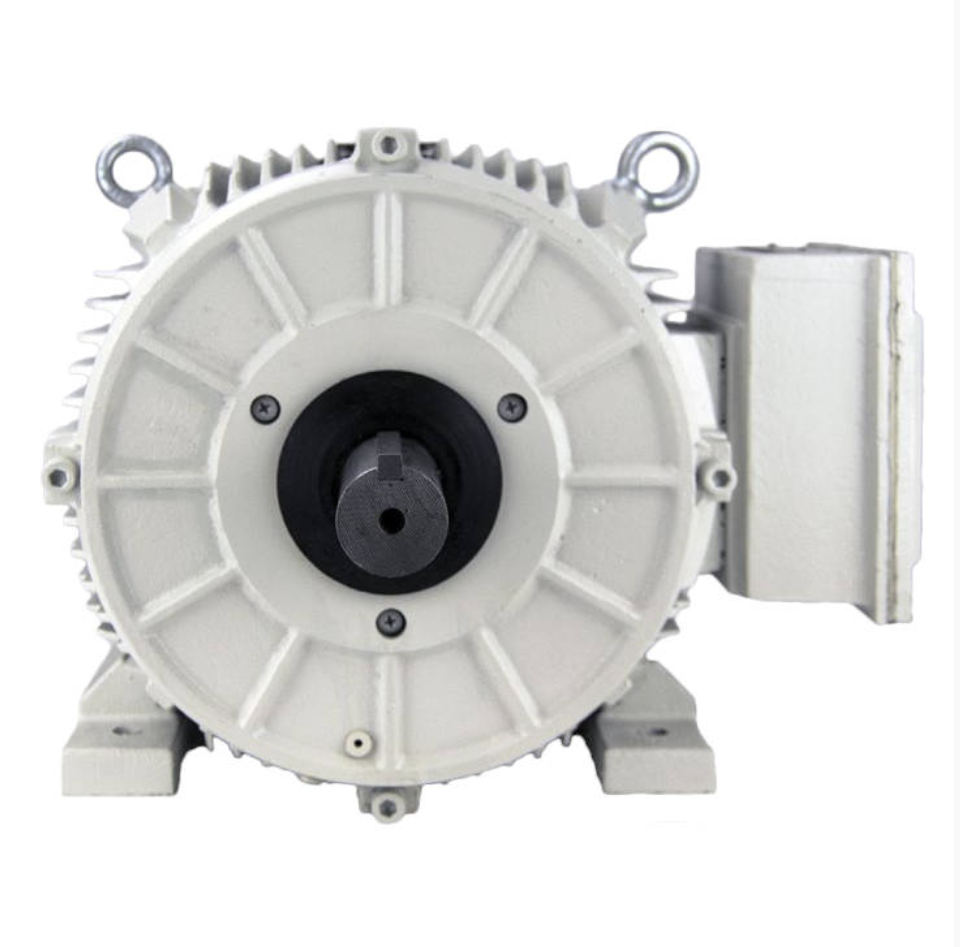

The Techtop BK3-CI-TF-364T-6-BR-G-40 is a reliable oil pump electric motor designed for various industrial applications. This motor offers a total horsepower of forty, and operates at voltages of 230, 460, and 796 V. It has a TEFC (Totally Enclosed Fan Cooled) enclosure that protects its internal components from dust and moisture. The 364T frame size and 1200 rpm speed make this motor suitable for high-demand settings.

• Suitable for three-phase power systems.
• Rigid base for stable mounting.
• Low slip design for efficient operation.

Product Highlights

This motor is ideal for applications in electrical systems, particularly in environments requiring robust equipment. It is engineered to withstand harsh conditions with features like tropicalization on stator windings and corrosion-resistant hardware.

Product Information

Standard Information

• Brand: Techtop Industries
• Enclosure Type: TEFC

Technical Specifications

• Frame: 364T
• Phase: Three
• Speed: 1200 rpm
• Horsepower: 40 hp
• Voltage Rating: 230/460/796 V
• Amperage Rating: 92/46/30.4 A
• Insulation Class: F
• Service Factor: 1.15
• Bearing Type: Ball
• Mounting Type: Rigid Base
• Material: Cast Iron
