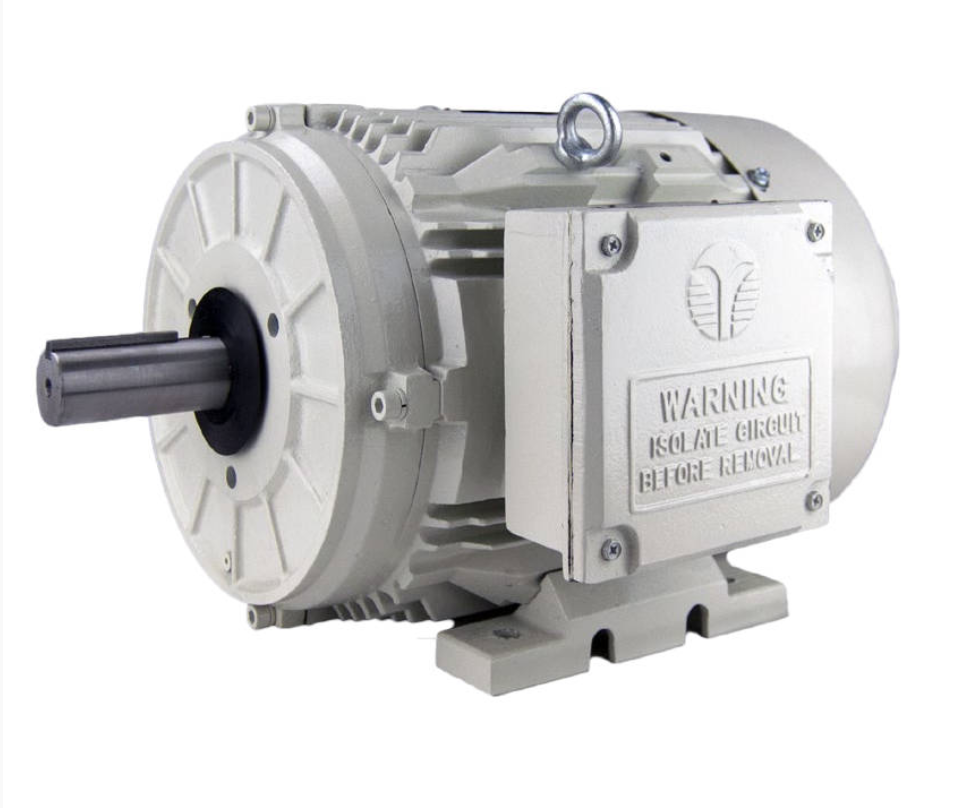

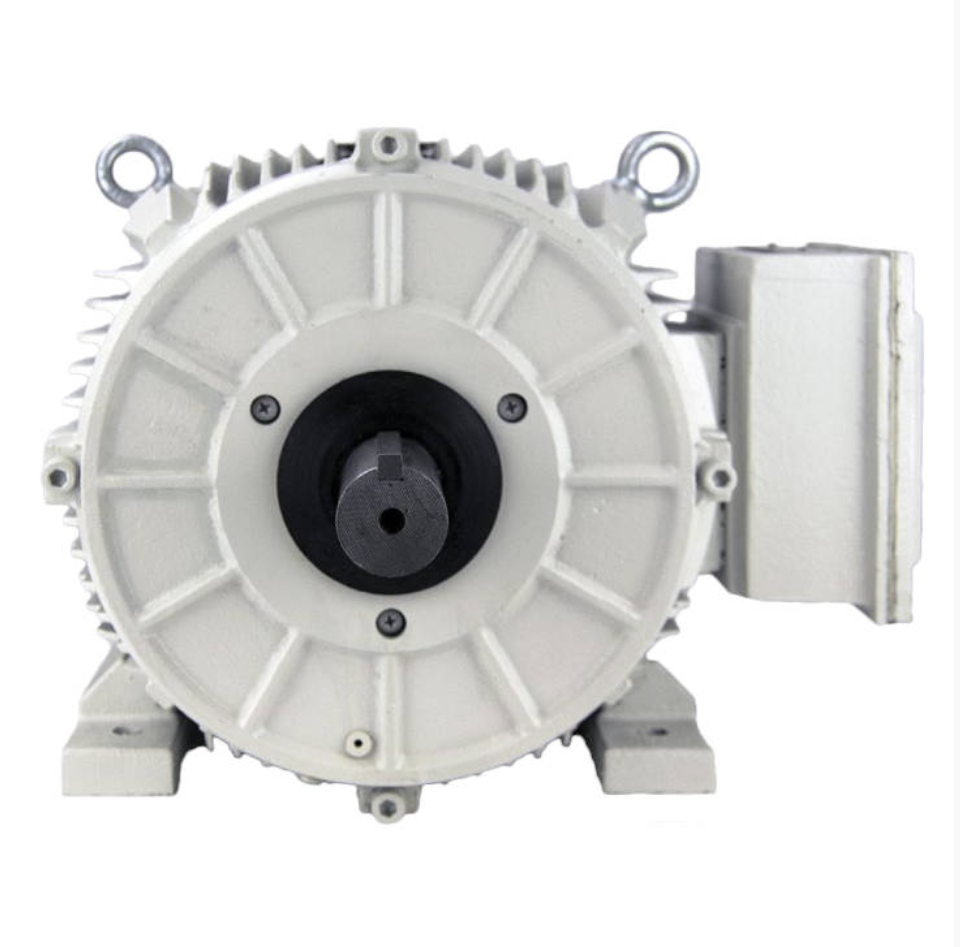

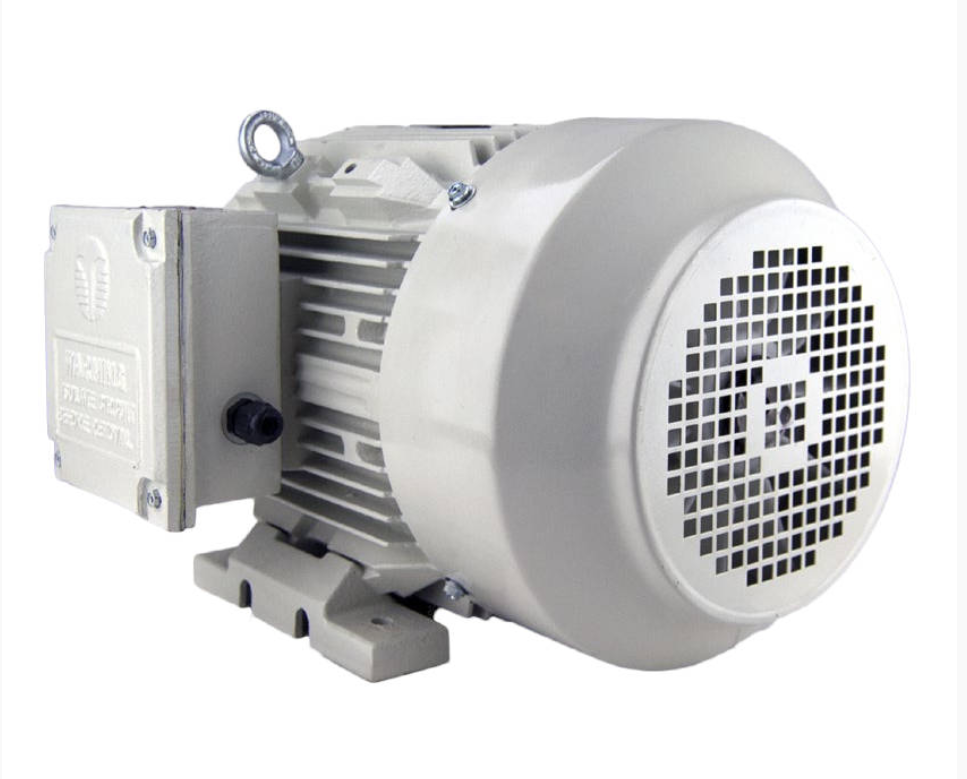

Techtop BK3-CI-TF-326T-6-BR-G-30 Oil Pump Electric Motor 30 hp 326T Frame

Product Description

The Techtop BK3-CI-TF-326T-6-BR-G-30 is an oil pump electric motor with a TEFC enclosure. It provides thirty horsepower and operates at a voltage of 230/460/796 volts. The motor has a frame size of 326T and runs at a speed of one thousand two hundred rpm.

• Amperage rating: 71/35.5/20.5 A
• Three-phase design for efficient performance
• Rigid base mounting for stability

Product Highlights

This motor features a double lip oil seal and a cast iron terminal box for durability. It also has a vacuum impregnated stator and corrosion resistant hardware.

Product Information

Standard Information

• Brand: Techtop Industries
• Horsepower: 30 hp

Technical Specifications

• Enclosure Type: TEFC
• Frame: 326T
• Voltage Rating: 230/460/796 V
• Speed: 1200 rpm
• Phase: Three
• Insulation Class: F
• Material: Cast Iron
• Mounting Type: Rigid Base
• Amperage Rating: 71/35.5/20.5 A
• Service Factor: 1.15
• Shaft Size: 2-1/8 x 5-1/4 in
• Frequency Rating: 60 Hz
