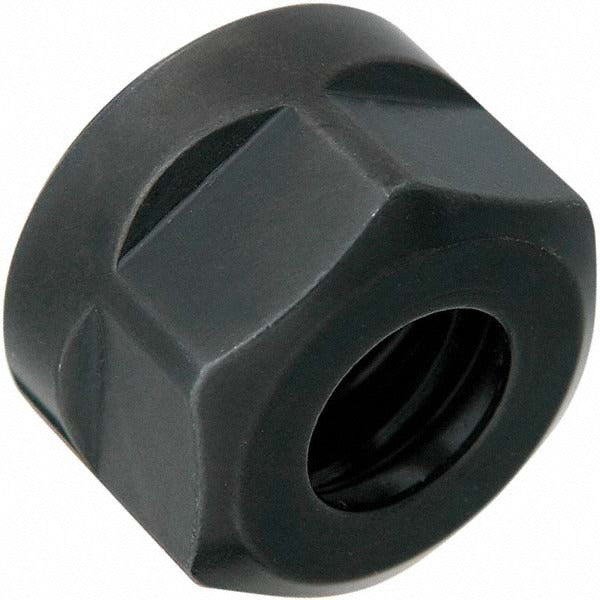

Techniks 41111 ER11 Slotted Collet Nut Through Coolant

Product Description

The TECHNIKS 41111 is an ER11 slotted collet nut designed for use with ER11 collet chucks in CNC machining and toolholding applications. The slotted design allows coolant to pass through directly to the cutting zone, supporting through-coolant delivery systems that reduce heat buildup and extend tool life. This nut is a precision-fit component that secures ER11 collets in place during high-speed cutting operations. It is installed by machinists and CNC setup technicians in production and job-shop environments where reliable clamping and coolant delivery are required.

The 41111 is suited for use in ER11 collet chuck assemblies on CNC machining centers, lathes, and multi-axis machines configured with through-spindle or through-tool coolant systems. The through-coolant capability makes it particularly appropriate for drilling, reaming, and other operations where directed coolant flow improves chip evacuation and surface finish. This nut is sold individually and is intended as a direct replacement or supplemental component for ER11 toolholding setups.

Key Features

• Slotted design enables through-coolant flow directly to the cutting tool
• Compatible with ER11 collet series toolholding systems
• Precision-machined threads for consistent collet clamping force
• Sold individually for single-unit replacement or stocking

Compatibility

Designed for use with ER11 collet series chucks and toolholders equipped with through-coolant capability.

Installation Notes

Installation and replacement should be performed by a qualified machinist or CNC setup technician with the machine powered down and all spindle motion stopped. Use the appropriate ER11 collet nut wrench and spanner to achieve proper torque without damaging the nut or collet seating surface. Inspect collet and chuck threads for wear or contamination before assembly. Ensure the coolant delivery system is compatible with through-coolant nuts before installation.
