Techniks 23030 Tg Collet Chuck CAT50 1 in Capacity

Product Description

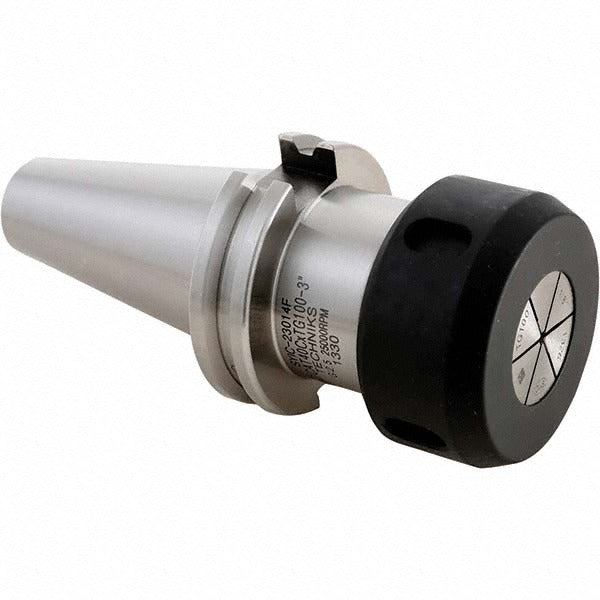

The TECHNIKS 23030 is a TG collet chuck designed for machining centers and milling applications requiring a secure, high-concentricity tool hold. It accepts TG and PG100 series collets with a capacity range of 3/32 inch minimum to 1 inch maximum, making it suitable for a wide range of cutting tool shank diameters. The chuck features a CAT50 taper shank for direct spindle mounting, a 3 inch projection from gauge line, and an overall length of 7.01 inches. At 7.7 pounds, it is built for stable, production-level use in both horizontal and vertical machining center setups. Installation is performed by qualified machine tool operators or CNC setup technicians.

This collet chuck is used in CNC milling and machining center applications where TG or PG100 collet tooling systems are already in service. The CAT50 taper is common in heavy-duty vertical machining centers and larger horizontal machining centers running production work. The 3 inch projection provides clearance for operations where the spindle nose must clear fixtures, vises, or part features. It is well suited to shops standardized on the TG collet system for end mills, drills, and reamers up to 1 inch shank diameter.

Key Features

• CAT50 taper shank for direct spindle mounting on compatible machining centers
• Accepts TG and PG100 series collets from 3/32 inch to 1 inch capacity
• 3 inch projection from gauge line for fixture and workpiece clearance
• 7.01 inch overall length for reach in deep-setup applications
• Weighs 7.7 pounds - sized for heavy-duty production spindles

Compatibility

Designed for use with TG collet series and PG100 collets on CAT50-spindle machining centers. Compatible collet capacity range is 3/32 inch to 1 inch.

Installation Notes

Installation is performed by a qualified CNC setup technician or machine tool operator. Always power down and lock out the machining center spindle before mounting or removing the chuck. Use the machine manufacturer's recommended drawbar torque procedure and a proper face spanner or hook wrench for collet nut tightening - never use improvised tools on the collet nut. Inspect the CAT50 taper and spindle bore for chips or damage before seating the chuck.
