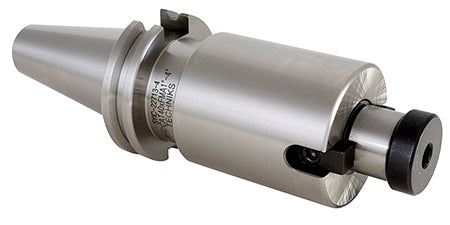

Techniks 22715 Precision Single End Face Mill Arbor, 1-1/4 in Arbor, 2-1/2 in OD, CAT40

Product Description

The Techniks 22715 is a precision single end face mill arbor designed for CAT40 taper applications. This arbor features a one and one-quarter inch arbor diameter and an outside diameter of two and one-half inches. The arbor is suitable for various milling tasks, providing reliable performance for professionals in metalworking and cutting tools.

• Designed for CAT40 taper compatibility
• Constructed from 8620 steel for durability
• Features a lab-certified dimensional accuracy

Product Highlights

This arbor reduces chatter and enhances tool life due to its H6 arbor tolerance. The ground taper ensures maximum spindle contact, making it ideal for various face mills.

Product Information

Standard Information

• Brand: Techniks
• Part Number: TECH-22715

Technical Specifications

• Type: Precision Single End
• Taper: CAT40
• Arbor Size: 1-1/4 in
• Outside Diameter: 2-1/2 in
• Projection: 2.0850 in
• Clamping Length: 0.6900 in
• Coolant: Yes
