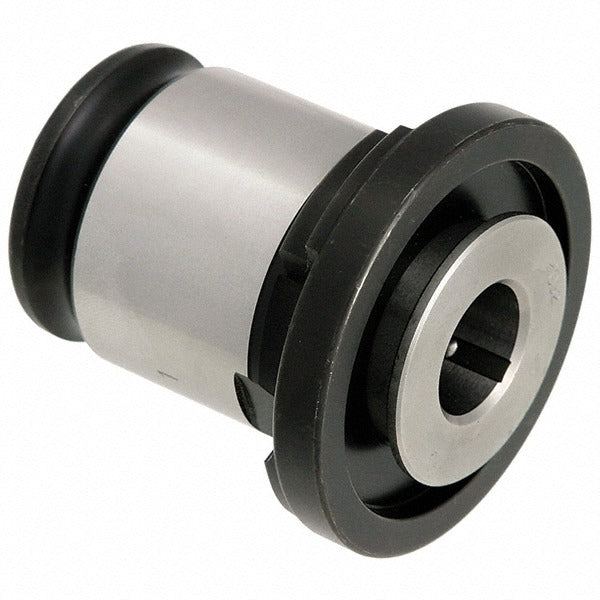

Techniks 19/11-4036 Tap Collet Ansi Series 1

Product Description

The TECHNIKS 19/11-4036 is an ANSI Series 1 tap collet designed to hold hand taps in compatible tap collet chucks. With a collet size of 0.141 inches and a square drive size of 0.110 inches, it securely grips M1.6 and M3.5 hand taps during threading operations. This collet is a precision tool-holding component used in manual and machine tapping applications. It does not support through-coolant delivery or tension tap configurations. Licensed machinists, toolroom technicians, and CNC setup personnel typically source and install this type of collet.

This collet fits ANSI Series 1 tap collet chucks and is suited for hand tapping operations in metalworking environments. It accommodates M1.6 and M3.5 taps, making it appropriate for small-diameter threading work on ferrous and non-ferrous materials. Typical applications include production machining, toolroom work, and maintenance tapping where consistent tap alignment and secure retention are required.

Key Features

• ANSI Series 1 collet standard for broad chuck compatibility
• Collet bore size of 0.141 inches accommodates M1.6 and M3.5 hand taps
• Square drive size of 0.110 inches for positive torque transfer to the tap
• Hand tap configuration - no tension tap or through-coolant features
• Compact, lightweight design at 0.2 pounds

Compatibility

Designed for use with ANSI Series 1 tap collet chucks. Accepts M1.6 and M3.5 hand taps as specified by the manufacturer.

Installation Notes

Installation is performed by machinists or toolroom personnel familiar with tap collet chuck systems. Before inserting or removing the collet, ensure the chuck is fully released and clear of any driving force. Seat the collet fully into the chuck body and confirm the tap square is properly engaged before beginning any tapping cycle. Inspect the collet bore and seating surfaces for wear or debris prior to each use.
