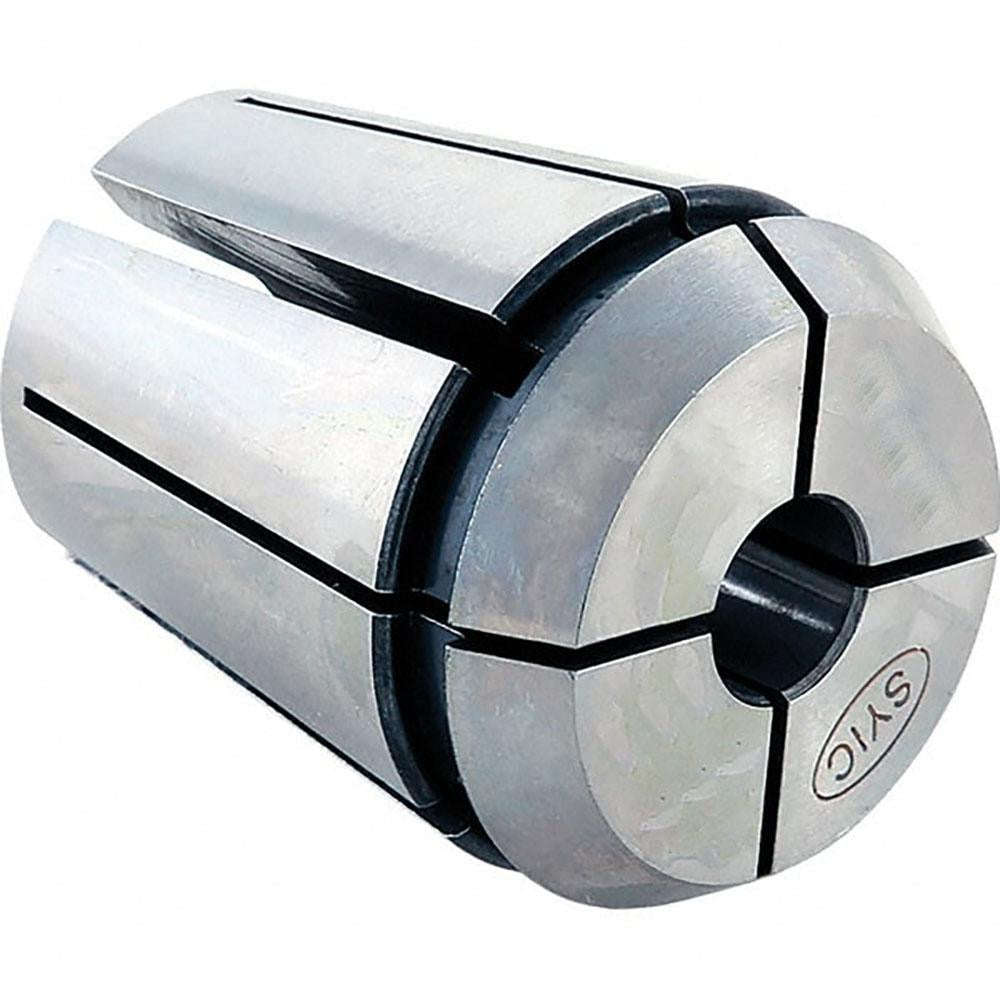

Techniks 05320-141 ER16 Tap Collet 0.141 Inch Hand Tap

Product Description

The TECHNIKS 05320-141 is an ER16 tap collet designed to hold hand taps in CNC machining centers, tapping heads, and compatible toolholding systems. Sized at 0.141 inches, it accommodates No. 6 through 1/8 inch hand taps and features a 0.110 inch square drive size for positive tap engagement. This collet does not include through-coolant or tension-tap capability, making it a straightforward rigid-style tap holder suited for standard hand-tap applications. Machinists and toolroom technicians install this collet when setting up tapping operations that require a secure, repeatable ER16 collet interface.

This collet is intended for use in ER16-compatible collet chucks and tapping attachments where hand taps in the No. 6 to 1/8 inch size range are required. Typical applications include light-duty tapping on ferrous and non-ferrous materials in job shop, production machining, and maintenance environments. It is not rated for pipe taps and does not support through-coolant delivery.

Key Features

• ER16 collet series for use in standard ER16 collet chucks and tapping holders
• 0.141 inch collet size accommodates No. 6 through 1/8 inch hand taps
• 0.110 inch square drive size provides positive rotational engagement on tap shanks
• Rigid-style design without tension-tap or through-coolant features
• Compact, lightweight form at 0.5 pounds for easy handling and tool changes

Compatibility

Designed for use with ER16-compatible collet chucks and tapping attachments accepting hand taps in the No. 6 to 1/8 inch size range. Not compatible with pipe taps.

Installation Notes

Installation is performed by a machinist or toolroom technician. Ensure the machine spindle is fully stopped and the tool changer or spindle lock is engaged before inserting or removing the collet. Clean the collet bore and chuck taper before seating to prevent runout caused by chips or debris. Tighten the collet nut to the torque specification listed in the toolholder manufacturer documentation.
