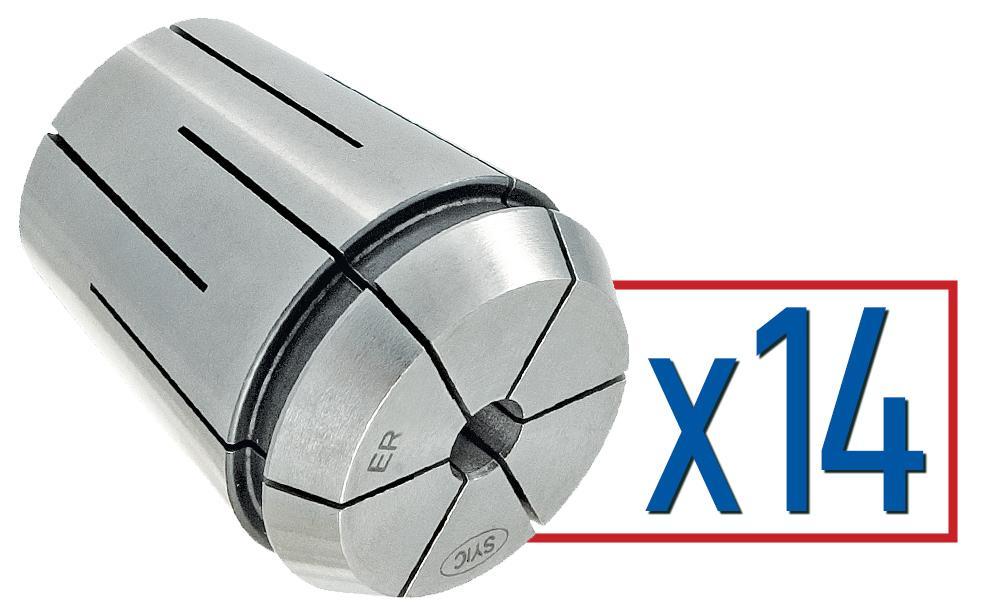

Techniks 04545IS TECH ER25 Steel Sealed Collet Set 14PC (Inch) 7/32-5/8x32NDS

Product Description

The Techniks 04545IS is a comprehensive set of ER25 steel sealed collets. This collet set includes fourteen pieces, designed for use with a range of collet chucks. The sizes range from seven thirty-seconds to five eighths of an inch, with a clamping range of zero point two one eight seven five to zero point six two five inches, or approximately five point five five six to fifteen point eight seven five millimeters. This product ensures precision with an accuracy total indicator reading of zero point zero zero zero two inches and can handle up to two thousand pounds per square inch of coolant pressure.

• Sealed to withstand two thousand psi
• Compatible with various collet systems including ER, RD, DR, ESX, and BR
• Protects toolholder from contaminants

Product Highlights

The sealed collet system allows for effective coolant flow while maintaining the integrity of the toolholder.

Product Information

Standard Information

• Brand: Techniks
• Collet Series: ER25

Technical Specifications

• Size: 7/32 - 5/8 Set
• Clamping Range: 0.21875 - 0.625 (5.556 - 15.875 mm)
• Accuracy TIR: 0.0002
• Max Coolant PSI: 2000
• Number of Pieces: 14
• Material: Steel
• Suitable For Use With: ER, RD, DR, ESX and BR Collet Chuck
