Product Description

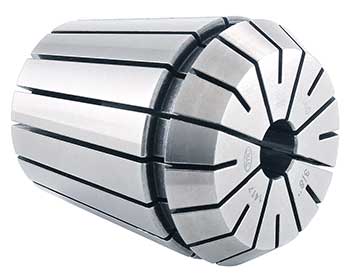

The Techniks 04240-3/4 is an ER40 collet designed for precision tool holding. This collet is suitable for sizes ranging from 0.7106 inches to 0.75 inches for various applications. It features a high accuracy of 0.0002 inches Total Indicator Runout (TIR). The collet is made from high-quality materials, ensuring durability and performance in demanding environments.
- Size: 3/4 inch or 19.050 mm
- Clamping range: 0.7106 to 0.75 inches (18.05 to 19.05 mm)
- High precision with TIR of 0.0002 inches
Product Highlights
This collet provides excellent holding power and is designed to work with various collet chucks.
Product Information
Standard Information
-
Brand: Techniks
-
Part #: TECH-04240-3/4
Technical Specifications
-
Collet Series: ER40
-
Size: 3/4 (19.050 mm)
-
Clamping Range: 0.7106 - 0.75 (18.05 - 19.05 mm)
-
Accuracy TIR: 0.0002 inches
-
Overall Length: 1.81 inches
-
Body Diameter: 1.61 inches
-
Head Diameter: 1.61 inches
-
Clamping Hole Length: 1.81 inches
-
Suitable for Use With: DR, RD, ESX, AR and BR Series Collet Chuck
