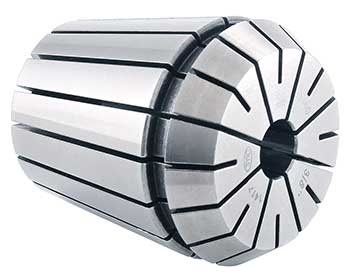

Techniks 04240-17/32 TECH ER40 17/32 COLLET (.492-.531)

Product Description

The Techniks 04240-17/32 is an ER40 collet designed to provide a reliable clamping solution for various machining tasks. This collet has a size of seventeen thirty-seconds inches and accommodates a clamping range from zero point four nine one nine to zero point five three one three inches, equivalent to twelve point forty-nine to thirteen point five millimeters. Its accuracy is rated at a total indicator reading of zero point zero zero zero two inches.

• Manufactured from high-carbon bearing steel
• Precision collets maintain a T.I.R. of 0.0002 inches
• Compatible with DR, RD, ESX, AR, and BR series collet chucks

Product Highlights

This collet is ideal for use in precision machining applications, ensuring secure tool holding and minimal runout for optimized performance.

Product Information

Standard Information

• Brand: Techniks
• Collet Series: ER40

Technical Specifications

• Size: 17/32 inches
• Clamping Range: 0.4919 - 0.5313 inches (12.49 - 13.5 mm)
• Accuracy TIR: 0.0002 inches
• Overall Length: 1.81 inches
• Body Diameter: 1.61 inches
• Head Diameter: 1.61 inches
• Clamping Hole Length: 1.81 inches
• Suitable For Use With: DR, RD, ESX, AR and BR Series Collet Chuck
