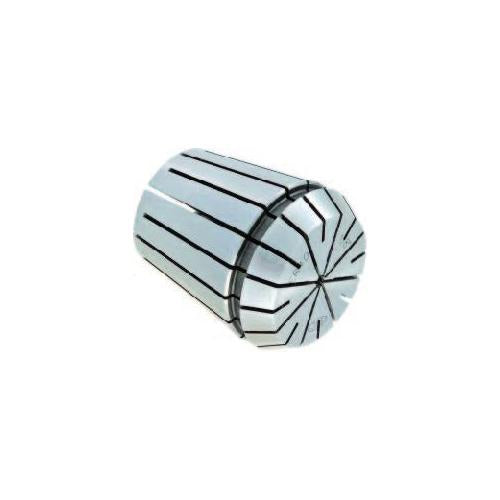

Techniks 04220-1/8 TECH ER20 1/8 COLLET 0.086-0.125

Product Description

The Techniks 04220-1/8 is an ER20 collet designed for precision machining. This collet accommodates a size of one eighth inches, which is approximately three point one seven five millimeters. It offers a clamping range from zero point zero eight five six inches to zero point one two five inches, allowing for versatility in various applications. The accuracy of this collet is noted to be within two ten-thousandths of an inch, ensuring tight tolerances.

• Size: 1/8 inches (3.175 mm)
• Clamping Range: 0.0856 to 0.125 inches (2.17 to 3.18 mm)
• Accuracy: 0.0002 inches TIR

Product Highlights

This collet is suitable for use with various collet chucks such as ER, DR, RD, ESX, AR, and BR types, enhancing tool stability and precision.

Product Information

Standard Information

• Brand: Techniks
• MPN: 04220-1/8

Technical Specifications

• Size: 1/8 inches (3.175 mm)
• Clamping Range: 0.0856 to 0.125 inches (2.17 to 3.18 mm)
• Accuracy TIR: 0.0002 inches
• Overall Length: 1.24 inches
• Body Diameter: 0.83 inches
• Head Diameter: 0.83 inches
• Clamping Hole Length: 1.24 inches
• Suitable for Use With: ER, DR, RD, ESX, AR, and BR Collet Chuck
