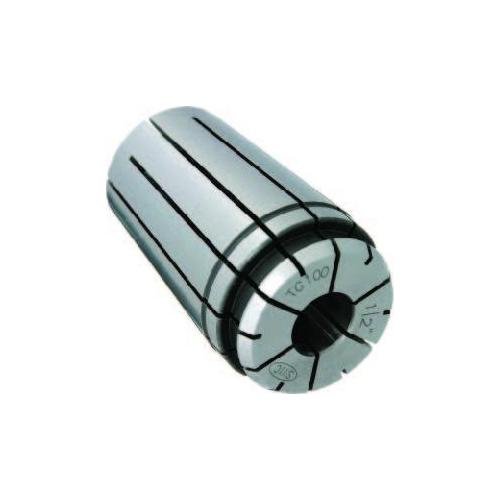

Techniks 04010-29/32 TG 100 Collet Precision Single Angle Spring With Coolant Through

Product Description

Techniks 04010-29/32 are precision single angle spring collets designed for use with TG collet chucks. This collet has an overall length of three inches and a clamping hole length of two and three-eighths inches. It has a capacity range of zero point eight nine zero seven inches to zero point nine zero six three inches.

• Clamping range of zero point eight nine one zero to zero point nine zero six zero
• Accuracy TIR of zero point zero zero zero four
• Manufactured with coolant through capability

Product Highlights

This Techniks collet is ideal for applications requiring high precision and reliability, making it a suitable choice for various machining tasks.

Product Information

Standard Information

• Brand: Techniks
• Collet Series: TG100

Technical Specifications

• Size: 29/32 (23.020 mm)
• Clamping Range: 0.8910 - 0.9060 (22.622 - 23.019)
• Accuracy TIR: 0.0004
• Body Diameter: 2.001 inches
• Head Diameter: 2.001 inches
• Overall Length: 3 inches
• Clamping Hole Length: 2-3/8 inches
• Suitable For Use With: TG Collet Chuck
