Product Description

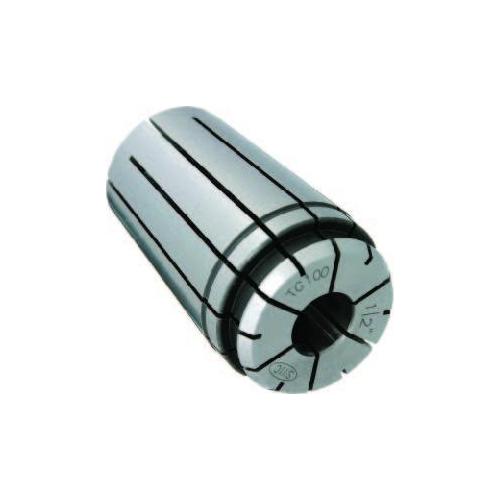

The Techniks 04010-23/64 is a TG 100 collet. It is designed for precision holding in machining operations. This collet has a size of twenty-three sixty-fourths inches.
- Clamping Range of zero point three four four zero to zero point three five nine zero inches
- Manufactured with a T.I.R of zero point zero zero zero four inches
- Suitable for use with TG Collet Chuck
Product Highlights
The TG 100 collet ensures reliable clamping and is ideal for use in applications requiring high accuracy.
Product Information
Standard Information
-
Brand: Techniks
-
Collet Series: TG100
Technical Specifications
-
Size: 23/64 (9.130 mm)
-
Clamping Range: 0.3440 - 0.3590 (8.731 - 9.128)
-
Accuracy TIR: 0.0004
-
Body Diameter: 2.001 in
-
Head Diameter: 2.001 in
-
Overall Length: 3 in
-
Clamping Hole Length: 2-3/8 in
-
Suitable For Use With: TG Collet Chuck
