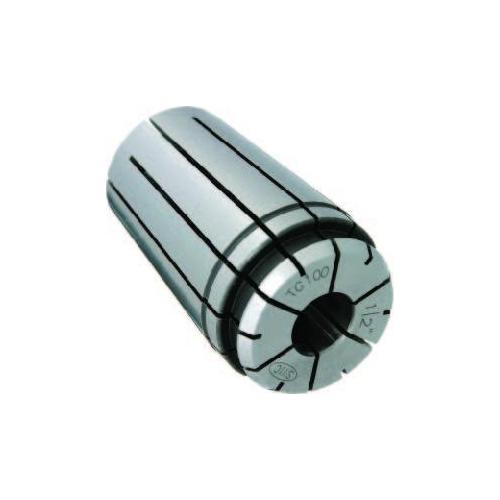

Techniks 04010-23/32 TG 100 23/32 Collet

Product Description

The Techniks 04010-23/32 collet is designed for precision toolholding. This collet fits within the TG100 series and is tailored for sizes twenty-three thirty-seconds. It effectively grips the workpieces within a clamping range of zero point seven zero three zero to zero point seven one nine zero inches.

• Compatible with TG collet chucks
• Precision ground for minimal TIR
• Durable construction for long service life

Product Highlights

These collets are essential for tasks requiring high precision and reliability in machining operations.

Product Information

Standard Information

• Brand: Techniks
• Collet Series: TG100

Technical Specifications

• Size: 23/32 inches
• Clamping Range: 0.7030 - 0.7190 inches (17.859 - 18.256 mm)
• Accuracy TIR: 0.0004 inches
• Body Diameter: 2.001 inches
• Head Diameter: 2.001 inches
• Overall Length: 3 inches
• Clamping Hole Length: 2-3/8 inches
• Suitable for Use With: TG Collet Chuck
