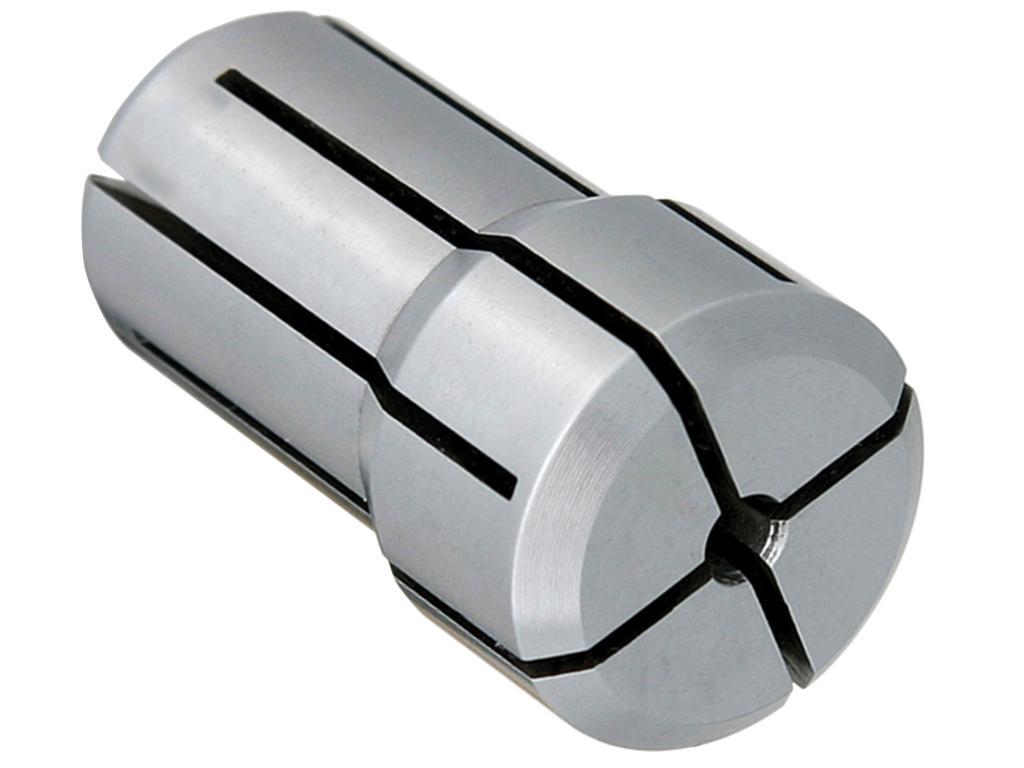

Techniks 01618-13/32 DA-180 13/32 Collet

Product Description

The Techniks 01618-13/32 DA-180 13/32 Collet is designed for precision toolholding applications. This collet ensures compatibility with DA180 series, making it suitable for various machining tasks. The size of the collet is thirteen thirty-seconds. It features a clamping range suitable for gripping tools with diameters between 0.3907 and 0.4063 inches.

• DA180 collet series for high accuracy
• Clamping range from 0.3907 inches to 0.4063 inches
• 1-5/8 inches overall length

Product Highlights

This collet is engineered to deliver reliable performance in precision applications. The robust construction from high carbon steel ensures extended durability.

Product Information

Standard Information

• Brand: Techniks
• Collet Series: DA180

Technical Specifications

• Size: 13/32 (10.320 mm)
• Clamping Range: 0.3907 to 0.4063 inches (9.924 to 10.32 mm)
• Head Diameter: 1.035 inches
• Overall Length: 1-5/8 inches
• Suitable For Use With: Double Angle Collet Chuck
