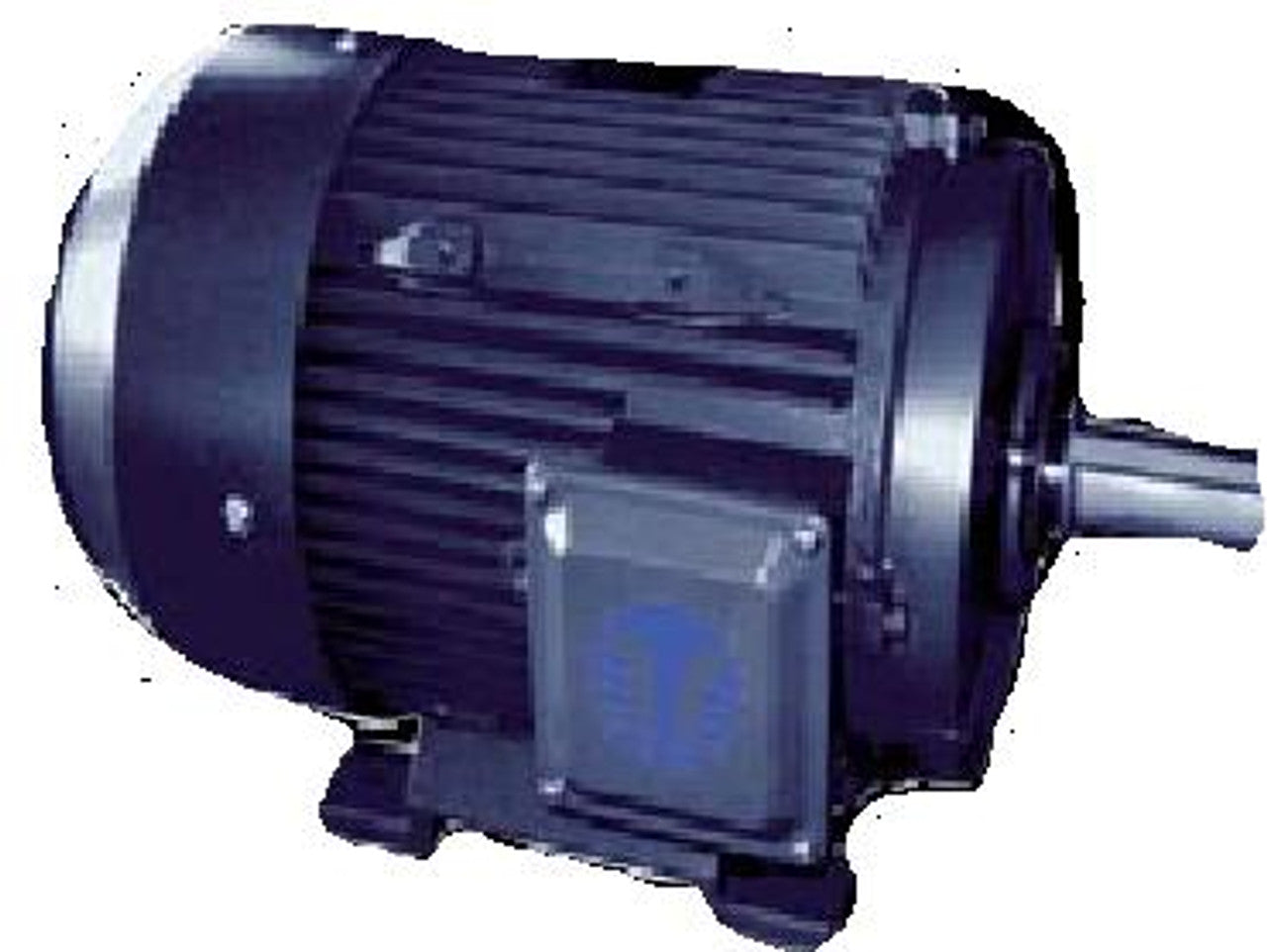

Tech Top P404T324T TEFC Cast Iron Motor 40 HP 1800 RPM
Tech Top P404T324T TEFC Cast Iron Motor 40 HP 1800 RPM

Tech Top P404T324T TEFC Cast Iron Motor 40 HP 1800 RPM

Brand: TECH TOP
SKU: P404T324T
Availability: In Stock
truck-svgrepo-com

Ships via Freight in 3-5 Business Days
$2,872.15
$2,872.15
LTL Delivery

This product weighs 635 lbs and may require the use of lift gate. If you require a lift gate you will have the option to add one FREE of charge at checkout.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description
Description:
P404T324T TEFC Cast Iron Motor 40 HP 1800 RPM

Premium Efficiency,
Inverter Rated,
4:1 Constant,
Design B,
UL 1004 approved,
1.15 Service Factor,
40 degree Ambient Rating,
Lithium No.3 Grease,
12 Lead Dual Voltage,
Wye - Delta Start wound,
1045 Carbon steel shafts,
Class F insulation system,
Class H impregnation resin,
Double lip seals on both ends,
Split conduit box is 90 degree rotatable,
F1 to F2 convertible (Shipped F1)

Specifications:
40 HP
3 Phase
1800 RPM
94.1 Eff%
0.89 Power Factor
45.9 Amps @ 460V
91.8 Amps @ 208-230V
Grease able Ball Bearing
324T Frame
Tech Top P404T324T TEFC Cast Iron Motor 40 HP 1800 RPM

TECH TOP

Tech Top P404T324T TEFC Cast Iron Motor 40 HP 1800 RPM

$2,872.15
Tech Top P404T324T TEFC Cast Iron Motor 40 HP 1800 RPM

TECH TOP

Tech Top P404T324T TEFC Cast Iron Motor 40 HP 1800 RPM

$2,872.15
