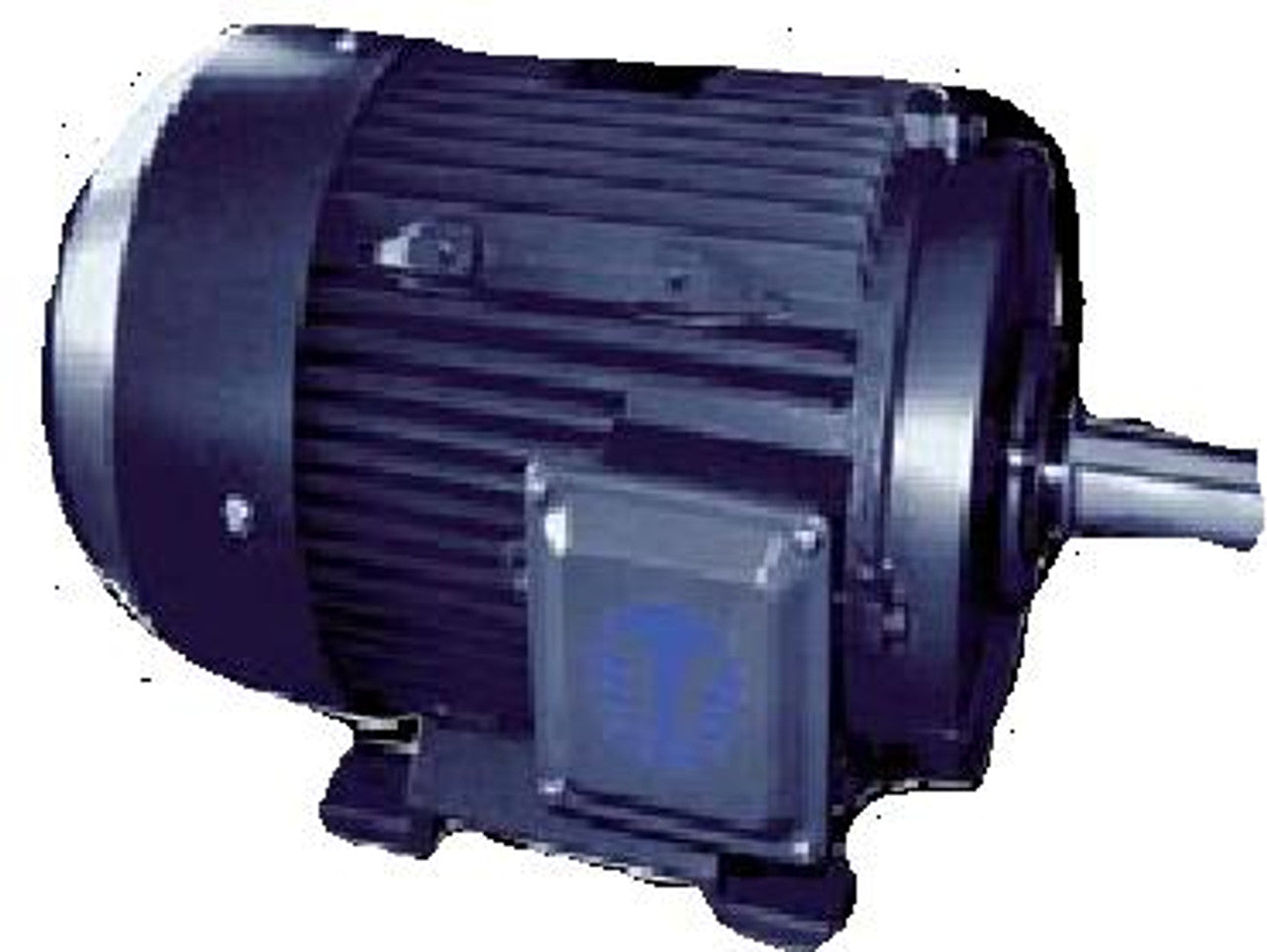

TECH TOP P36T213T TEFC Cast Iron Motor 3 HP 1200 RPM

Product Description

The TECH TOP P36T213T is a three-horsepower electric motor, operating at twelve hundred revolutions per minute. It features a TEFC, which stands for Totally Enclosed Fan Cooled, cast iron enclosure, ensuring durability and performance in various applications. This motor is inverter rated and includes a four to one constant torque ratio along with Design B performance characteristics. It meets UL 1004 standards and has a service factor of 1.15, providing reliable operation.

• Inverter rated with 4:1 constant torque ratio.
• 12-lead configuration for dual voltage operation.
• Split conduit box design allows for 90-degree rotation.

Product Highlights

This motor is ideal for industrial applications requiring robust performance and reliability. The ball bearings and double lip seals enhance longevity and reduce maintenance needs, making it suitable for continuous operation.

Product Information

Standard Information

• Enclosure: TEFC
• Motor Type: Electric Motor

Technical Specifications

• Horsepower: 3 HP
• Phase: 3 Phase
• Speed: 1200 RPM
• Efficiency: 89.5%
• Power Factor: 0.82
• Amperage @ 460V: 4.1A
• Amperage @ 208-230V: 8.2A
• Bearing Type: Ball Bearing
• Frame Size: 213T
• Voltage: 230/460V
• Ambient Rating: 40 degrees Celsius
• Lubrication: Lithium No.3 Grease
• Lead Configuration: 12 lead dual voltage
• Starting Method: Wye-Delta start wound
• Shaft Material: 1045 Carbon Steel
• Insulation Class: Class F
• Seals: Double lip seals on ends
• Conduit Box: Split, 90-degree rotatable
• Rotation: Reversible
• Warranty: 24 months
