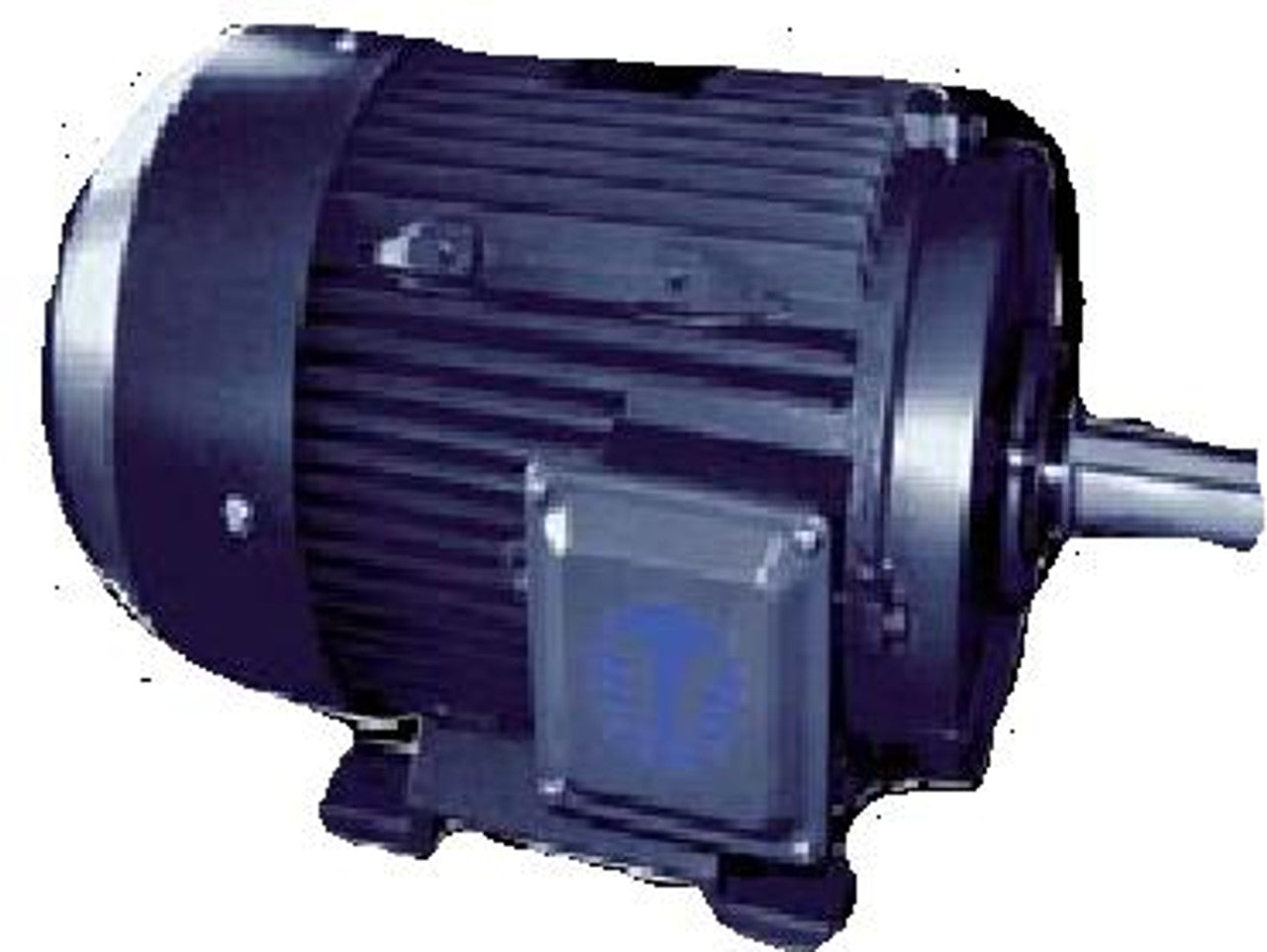

Tech Top P254T284T TEFC Cast Iron Motor 25 HP 1800 RPM
Tech Top P254T284T TEFC Cast Iron Motor 25 HP 1800 RPM

Tech Top P254T284T TEFC Cast Iron Motor 25 HP 1800 RPM

Brand: TECH TOP
SKU: P254T284T
Availability: In Stock
truck-svgrepo-com

Ships via Freight in 3-5 Business Days
$1,863.02
$1,863.02
LTL Delivery

This product weighs 445 lbs and may require the use of lift gate. If you require a lift gate you will have the option to add one FREE of charge at checkout.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description
Description:
P254T284T TEFC Cast Iron Motor 25 HP 1800 RPM

Premium Efficiency,
Inverter Rated,
4:1 Constant,
Design B,
UL 1004 approved,
1.15 Service Factor,
40 degree Ambient Rating,
Lithium No.3 Grease,
12 Lead Dual Voltage,
Wye - Delta Start wound,
1045 Carbon steel shafts,
Class F insulation system,
Class H impregnation resin,
Double lip seals on both ends,
Split conduit box is 90 degree rotatable,
F1 to F2 convertible (Shipped F1)

Specifications:
25 HP
3 Phase
1800 RPM
93.6 Eff%
0.89 Power Factor
28.4 Amps @ 460V
56.8 Amps @ 208-230V
Grease able Ball Bearing
284T Frame
Tech Top P254T284T TEFC Cast Iron Motor 25 HP 1800 RPM

TECH TOP

Tech Top P254T284T TEFC Cast Iron Motor 25 HP 1800 RPM

$1,863.02
Tech Top P254T284T TEFC Cast Iron Motor 25 HP 1800 RPM

TECH TOP

Tech Top P254T284T TEFC Cast Iron Motor 25 HP 1800 RPM

$1,863.02
