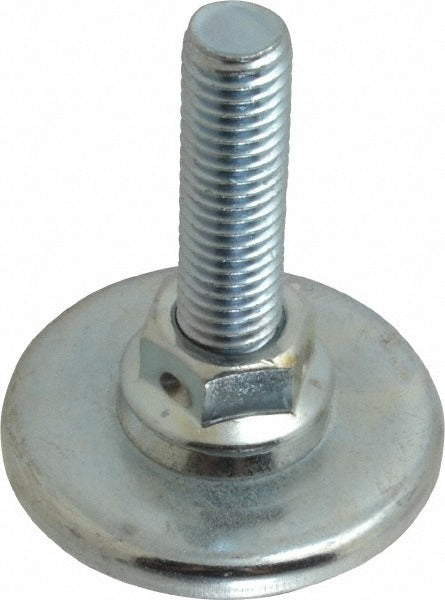

Tech Products LD-75 Studded Pivotal Leveling Mount

Product Description

The TECH PRODUCTS LD-75 is a studded pivotal leveling mount designed to provide stable, adjustable support for equipment on uneven surfaces. Built with a steel stud and rubber pad base, this mount absorbs vibration while allowing fine leveling adjustments after installation. It carries a load capacity of 75 pounds and features a 1/2-13 threaded stud with a thread length of 1.75 inches. The overall length is 2-11/16 inches and the base diameter measures 2-1/8 inches. Mechanical contractors, millwrights, and HVAC technicians install this type of mount on compressors, air handlers, pumps, and other mechanical equipment where leveling and vibration isolation are required.

The LD-75 is suited for light-duty industrial and commercial applications where equipment must be precisely leveled on concrete pads, equipment bases, or structural frames. The pivoting rubber pad base conforms to minor surface irregularities, maintaining consistent contact and reducing transmitted vibration. It is commonly used in HVAC, plumbing, and general mechanical installations where a 1/2-13 threaded fastener pattern is specified.

Key Features

• 75-pound load capacity per mount
• 1/2-13 threaded steel stud for secure anchoring
• Pivotal rubber pad base conforms to uneven mounting surfaces
• 2-1/8 inch base diameter provides a stable footprint
• 1.75-inch thread length allows adequate engagement depth
• Compact 2-11/16 inch overall length fits tight installation clearances

Compatibility

Designed as an OEM-style leveling mount for mechanical equipment requiring a 1/2-13 threaded stud mount with a pivotal rubber pad base and a 75-pound load rating per mount point.

Installation Notes

Install leveling mounts with the equipment de-energized and isolated from all power, refrigerant, or fluid systems before positioning. Use a level to confirm proper equipment alignment after tightening all mounts to avoid stress on connected piping or ductwork. A wrench or socket sized for the 1/2-13 fastener is required; do not over-tighten, as this can compress the rubber pad beyond its working range and reduce vibration isolation effectiveness. Installation should comply with applicable mechanical codes and equipment manufacturer mounting requirements.
