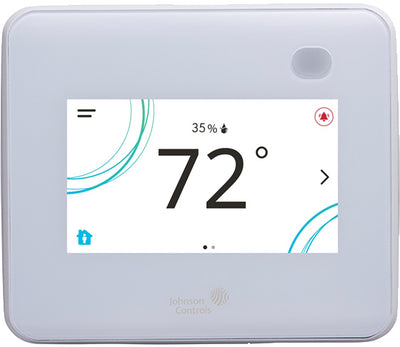

Johnson Controls TEC3623-14-000 Thermostat MSTP/N2 0-10VDC White

Product Description

The Johnson Controls TEC3623-14-000 thermostat MSTP/N2 0-10VDC is designed to manage temperature in commercial and industrial settings. This versatile thermostat can interface with various HVAC systems, including air handlers, fan coils, and chillers.

• Large, easy-to-read display for quick viewing
• Programmable to optimize energy usage
• Supports multiple input sensors

Product Highlights

This Johnson Controls thermostat features a large display for easy reading and quick adjustment. Its programmable functionality helps save energy, and it supports multiple sensors for comprehensive temperature monitoring. The 0-10VDC output ensures compatibility with many HVAC systems, making it ideal for various applications.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: TEC3623-14-000

Technical Specifications

• Control: BACnet/N2
• Mode: 0-10 VDC Proportional
• Sensor Type: Temperature & Humidity & PIR
• Color: White
• Power Requirements: 19-30 VAC, 4 VA, 50/60 Hz
• Weight: 0.77 lbs
• Dimensions: 5.625 inches x 4.71875 inches x 1.40625 inches
• Amperage: 1 A
• Frequency: 50 Hz, 60 Hz
• Backlit Type: Touch Activated
• Battery Type: Hardwired
• Fan Settings: High-Med-Low-Auto-Quiet
• Screen Width: 4.75 inches
• Screen Height: 1.44 inches
• System Settings: Auto-Heat-Cool-Off
• Programming Capability: 7-Day, Not Programmable
• Temperature Sensitivity: +/- 0.9 Degrees F
• Temperature Control Range: 40 Degrees F to 90 Degrees F, 54 Degrees F to 100 Degrees F
• Operating Temperature Range: 32 Degrees F to 122 Degrees F
